Male Female Attenuators LC SC FC ST Plug Type Attenuators

Male Female Attenuators LC SC FC ST Plug Type Attenuators

Plug Type Male Female Attenuators

Male Female Attenuators LC SC FC

FC ST Plug Type Attenuators

Place of Origin:

CHINA

Brand Name:

JFOPT

Model Number:

JFOAT-MF

Contact Us

Request A Quote
Product Details
Type:
Male-Female Attenuator
Interface Type:
SC/LC/FC/ST/MU/E2000
Attenuation Range:
1dB-30dB (Fixed Attenuation Values)
Mode:
Single-mode
Connector Polish:
APC/UPC
Color:
Blue/Green
Material:
Plastic/Metal
Attenuation Accuracy:
1-5db:±0.5 6-30dB:±10%
Payment & Shipping Terms
RELATED PRODUCTS
Contact Us
86-755-83570641
Contact Now
Product Description

Male-Female Attenuators LC / SC / FC / ST Plug Type Attenuators ±10% Attenuation Accuracy



The plug type male-female attenuator, consists of a connector-type (male) and an adapter-type (female) at each end, with a fixed attenuation value. JFOPT's male-female attenuators are made with high-precision ceramic ferrules, ceramic sleeves, and attenuation fibers to ensure high attenuation accuracy, product stability, and low return loss. JFOPT can provide attenuators with different attenuation values ranging from 1dB to 30dB, available in various connector types such as SC/LC/FC/ST/MU/E2000, catering to different attenuation requirements for various equipment.



♦ Features

①Selects high-precision ceramic ferrules, ceramic sleeves, and attenuation fibers

②High attenuation accuracy and stable optical performance

Male Female Attenuators LC SC FC ST Plug Type Attenuators 0

Male Female Attenuators LC SC FC ST Plug Type Attenuators 1

③Advanced grinding equipment with low insertion loss and high return loss

-

Male Female Attenuators LC SC FC ST Plug Type Attenuators 2

-



Applications

1.Data centers
2.Optical network equipment
3.CATV systems
4.Testing equipment



♦ Technical Performance

Item

Parameter

Attenuation Value

0~30dB (Interval 1dB)

Attenuation Accuracy

Attenuation Value

1~5dB

6~30dB

Accuracy

±0.5dB

±10%



♦ Attenuator Type

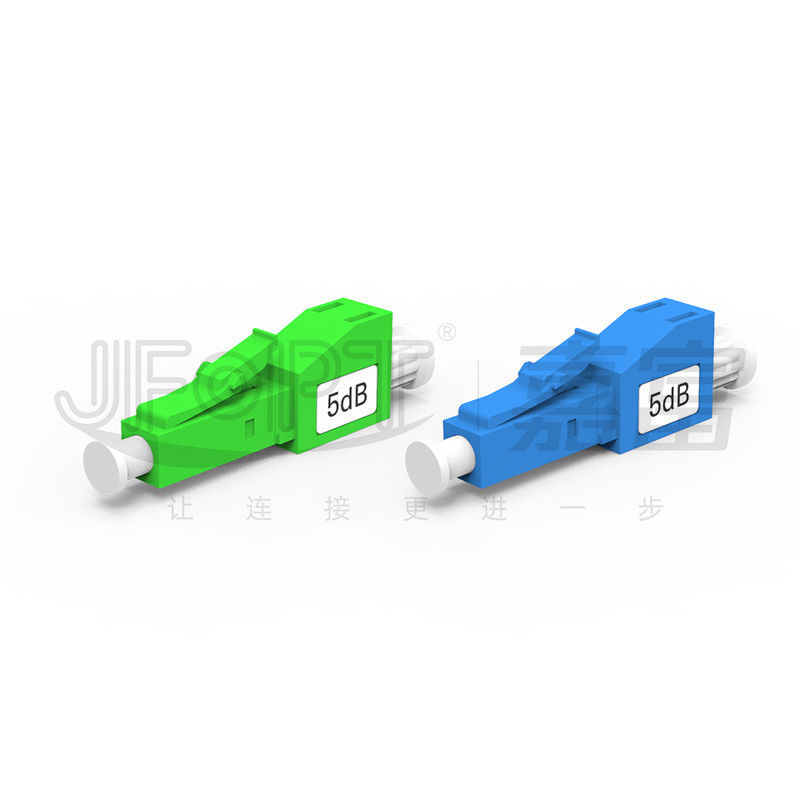

LC
plastic housing

UPC

APC

Male Female Attenuators LC SC FC ST Plug Type Attenuators 3

Male Female Attenuators LC SC FC ST Plug Type Attenuators 4


Drawing

Male Female Attenuators LC SC FC ST Plug Type Attenuators 5

Male Female Attenuators LC SC FC ST Plug Type Attenuators 6

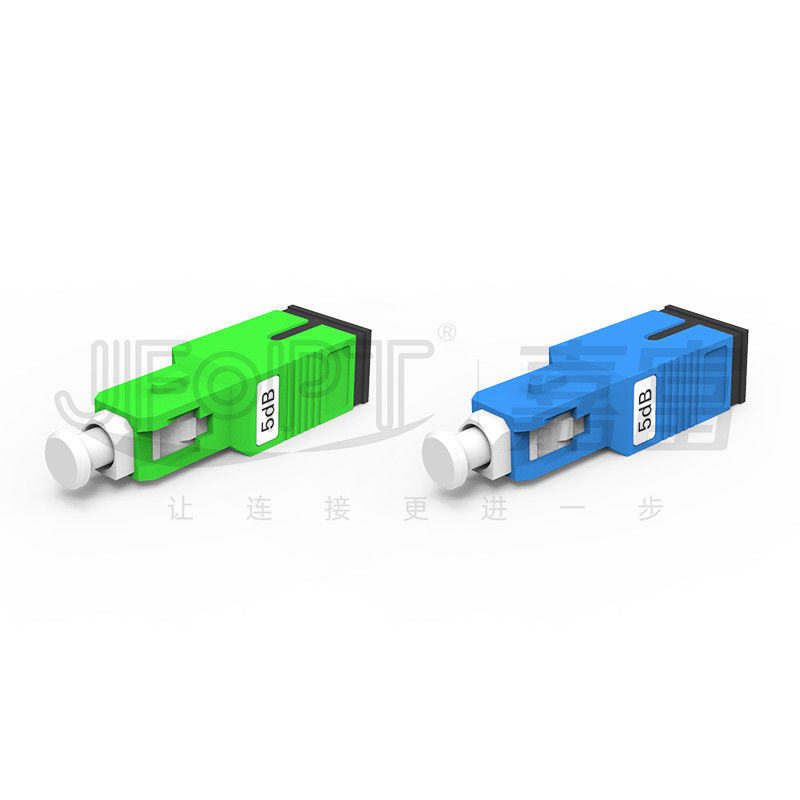

SC
plastic housing

UPC

APC

Male Female Attenuators LC SC FC ST Plug Type Attenuators 7

Male Female Attenuators LC SC FC ST Plug Type Attenuators 8


Drawing

Male Female Attenuators LC SC FC ST Plug Type Attenuators 9

Male Female Attenuators LC SC FC ST Plug Type Attenuators 10

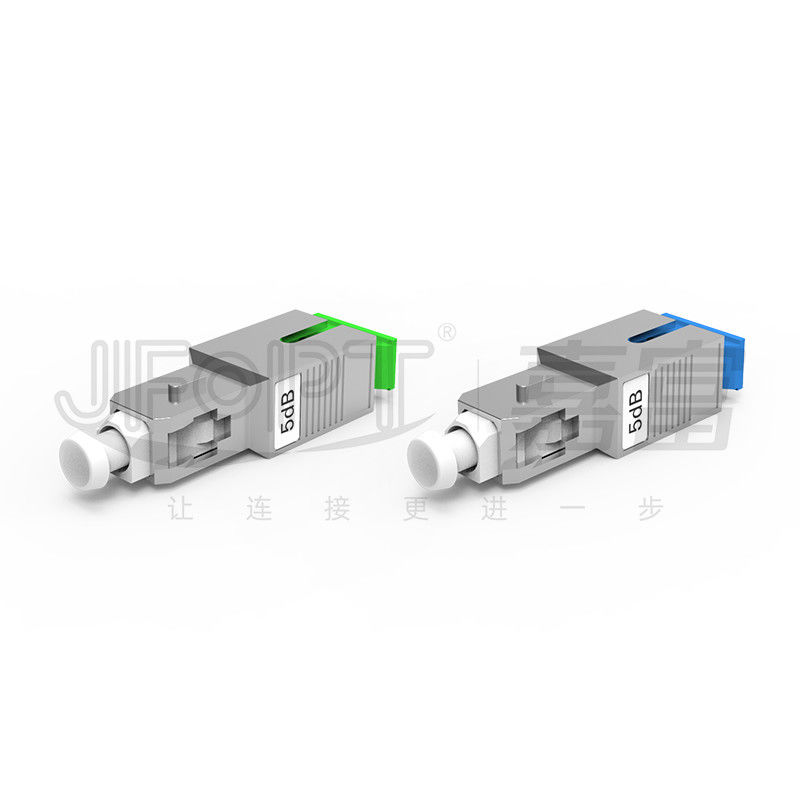

SC
metal housing

UPC

APC

Male Female Attenuators LC SC FC ST Plug Type Attenuators 11

Male Female Attenuators LC SC FC ST Plug Type Attenuators 12


Drawing

Male Female Attenuators LC SC FC ST Plug Type Attenuators 13

Male Female Attenuators LC SC FC ST Plug Type Attenuators 14

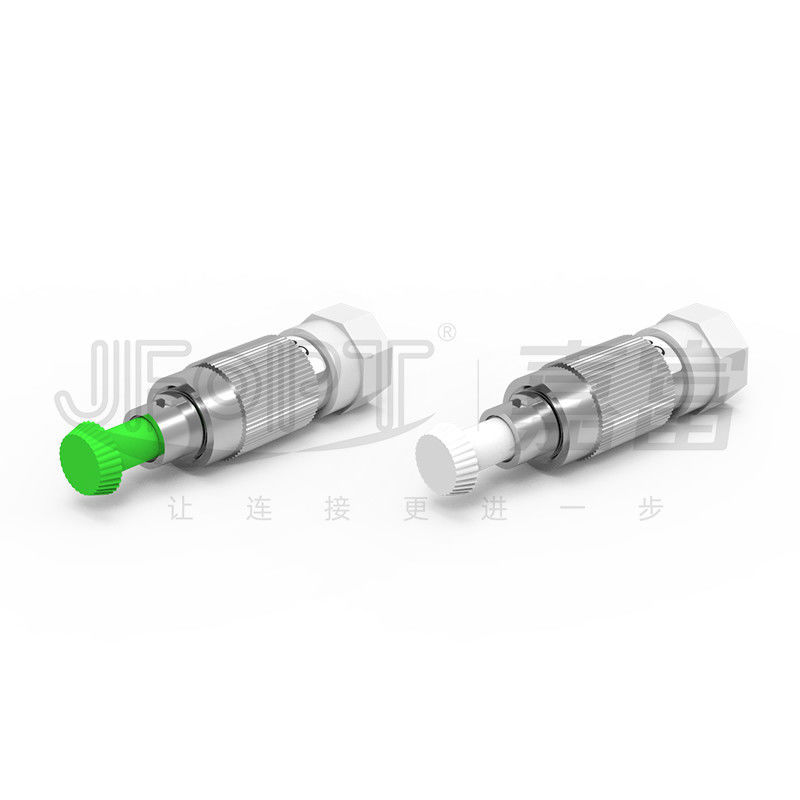

FC
metal housing

UPC

APC

Male Female Attenuators LC SC FC ST Plug Type Attenuators 15

Male Female Attenuators LC SC FC ST Plug Type Attenuators 16


Drawing

Male Female Attenuators LC SC FC ST Plug Type Attenuators 17

Male Female Attenuators LC SC FC ST Plug Type Attenuators 18

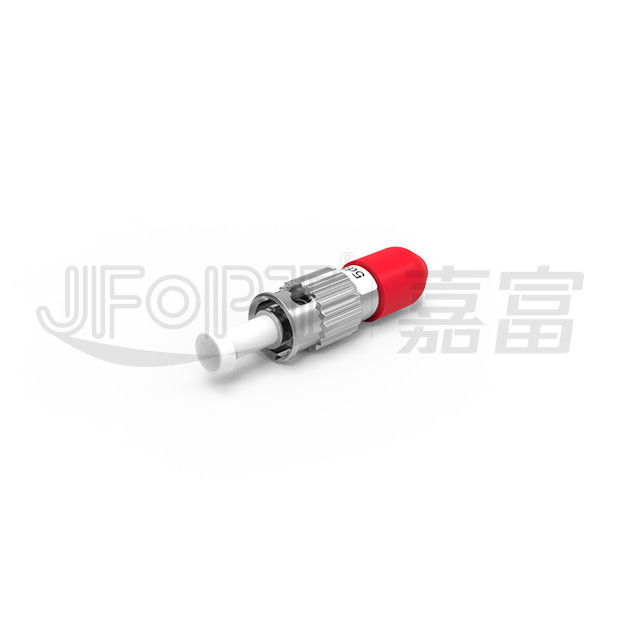

ST
metal housing

UPC

Male Female Attenuators LC SC FC ST Plug Type Attenuators 19


Drawing

Male Female Attenuators LC SC FC ST Plug Type Attenuators 20

Male Female Attenuators LC SC FC ST Plug Type Attenuators 21

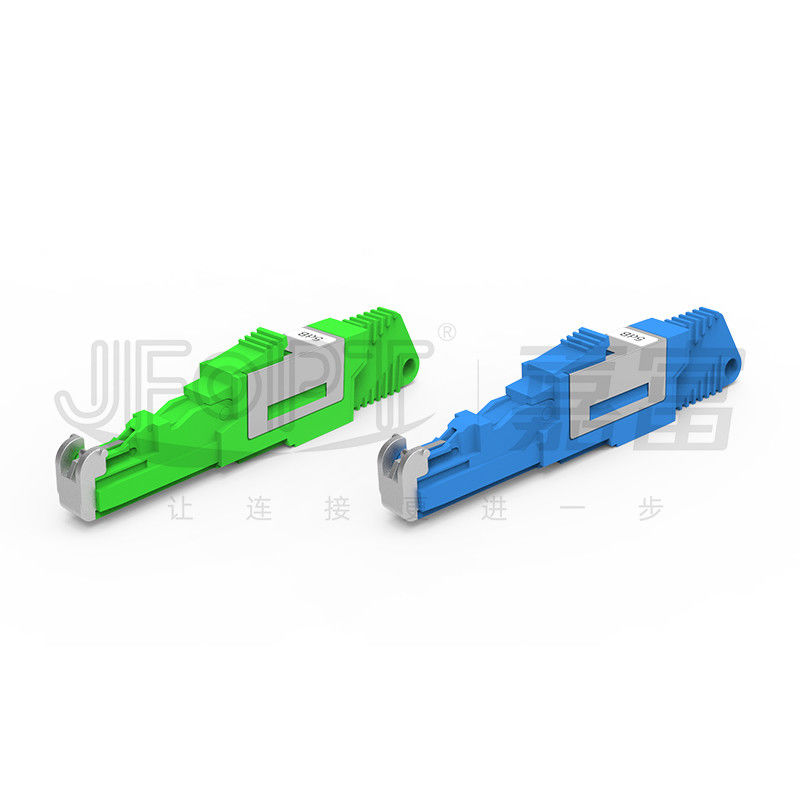

E2000
plastic housing

UPC

APC

Male Female Attenuators LC SC FC ST Plug Type Attenuators 22

Male Female Attenuators LC SC FC ST Plug Type Attenuators 23


Drawing

Male Female Attenuators LC SC FC ST Plug Type Attenuators 24

Male Female Attenuators LC SC FC ST Plug Type Attenuators 25

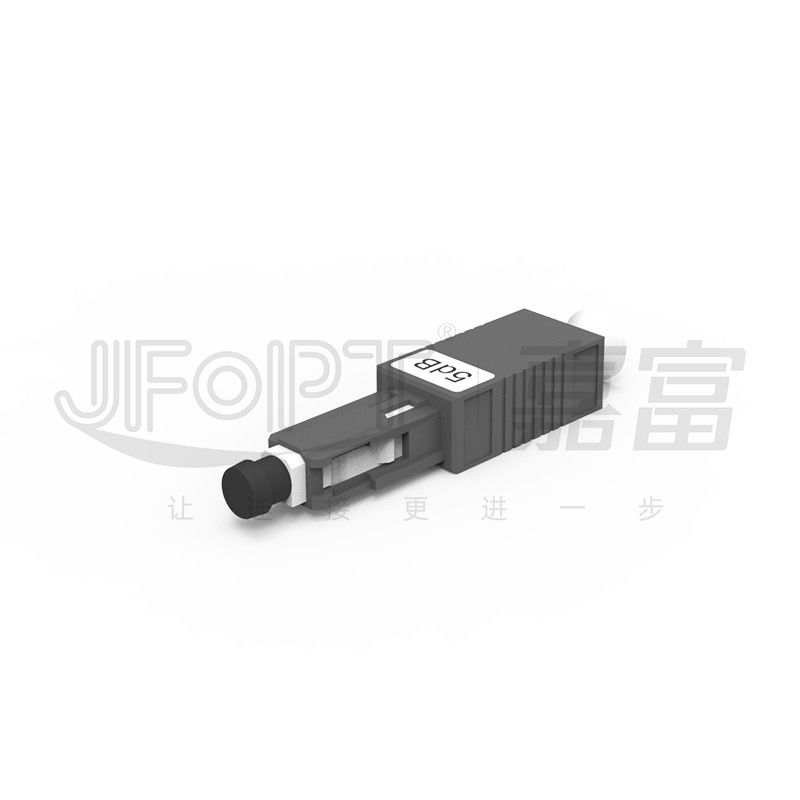

MU
plastic housing

UPC

Male Female Attenuators LC SC FC ST Plug Type Attenuators 26


Drawing

Male Female Attenuators LC SC FC ST Plug Type Attenuators 27

Male Female Attenuators LC SC FC ST Plug Type Attenuators 28



♦ Product Packaging

Male Female Attenuators LC SC FC ST Plug Type Attenuators 29

Male Female Attenuators LC SC FC ST Plug Type Attenuators 30

Male Female Attenuators LC SC FC ST Plug Type Attenuators 31

Packaging a single attenuator in an inner bag

Packaging multiple attenuators in an outer bag

Packaging



Factory Strength

Specialization:


JFOPT has professional technology and production equipment dedicated to the development and production of attenuators, including automated assembly, grinding equipment, and high-speed inspection instruments.

Male Female Attenuators LC SC FC ST Plug Type Attenuators 32

Manufacturing Capacity:


With 5 production lines, JFOPT can quickly and efficiently produce a large quantity of attenuators to meet customer demands.

Male Female Attenuators LC SC FC ST Plug Type Attenuators 33

Quality Control:


JFOPT implements strict quality control measures, using high-precision ferrules, components, and imported top-brand attenuation fibers. Each attenuator undergoes testing for attenuation value, connector end-face, and insertion loss to ensure product quality.

Male Female Attenuators LC SC FC ST Plug Type Attenuators 34

Standardization​:


JFOPT has a professional and experienced R&D team that can provide fixed, adapter-type, male-female, inline, adjustable, and electronic attenuators.

Male Female Attenuators LC SC FC ST Plug Type Attenuators 35

Technological Innovation:


JFOPT emphasizes technological innovation and continuously upgrades and innovates its products, developing various types of adapters and special connector attenuators.

Male Female Attenuators LC SC FC ST Plug Type Attenuators 36

Service and Technical Support:


JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and post-sales maintenance, to meet customer needs and ensure customer satisfaction.

Male Female Attenuators LC SC FC ST Plug Type Attenuators 37



♦ Frequent Q&A

1.What factors should be considered when purchasing attenuators?
When purchasing attenuators, you should consider the type of attenuator, attenuation value, and connector type, among others.



2.Can our attenuators be customized?
Yes, we offer various types of attenuators, including inline attenuators, adapter-style attenuators, adjustable attenuators, and more, which can be customized according to your requirements.



3.Can the attenuation value of our attenuators be customized?
Yes, we can customize attenuation values ranging from 1dB to 30dB.



4.Besides attenuators, what other products do we offer?
In addition to attenuators, we offer a wide range of fiber optic products, including fiber optic patch cords/jumpers, fiber optic adapters, distribution boxes, termination boxes, fiber distribution frames (FDFs), splice closures, optical modules, splitters, and more.



5.What is our delivery lead time?
For standard products, the delivery lead time is typically within 3 working days.
