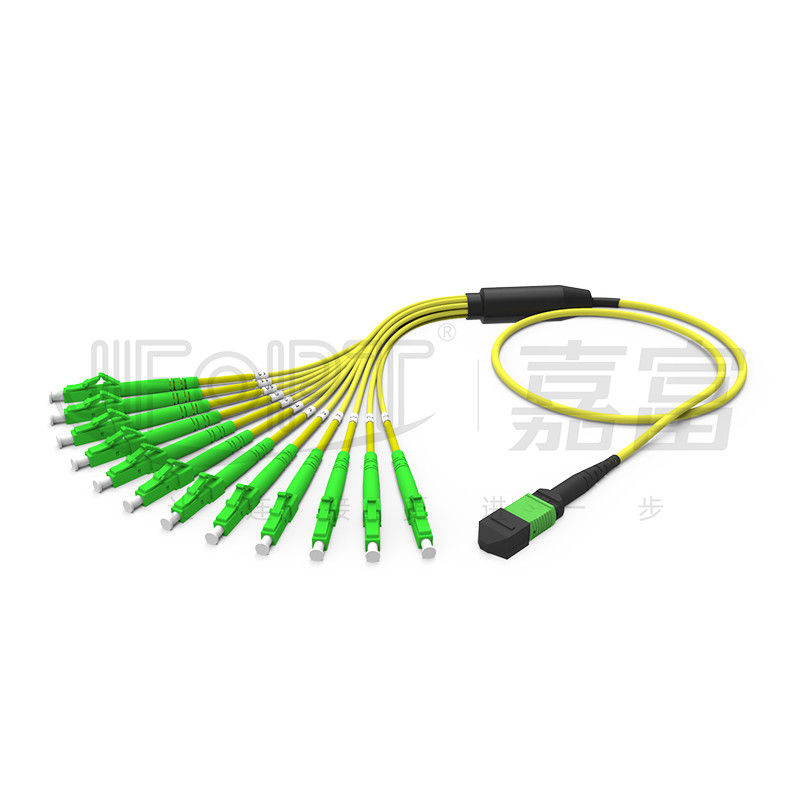

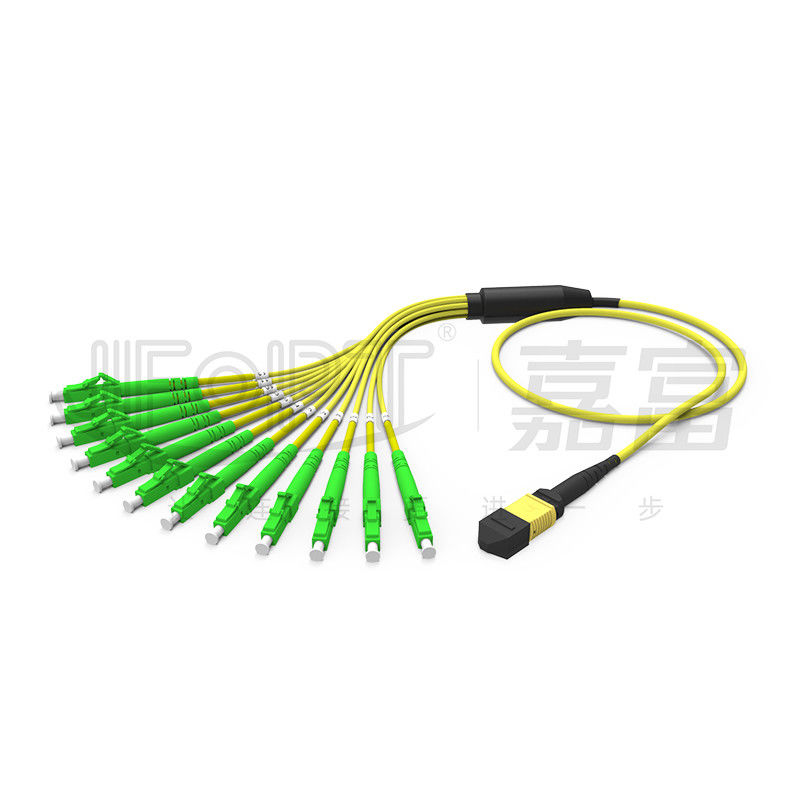

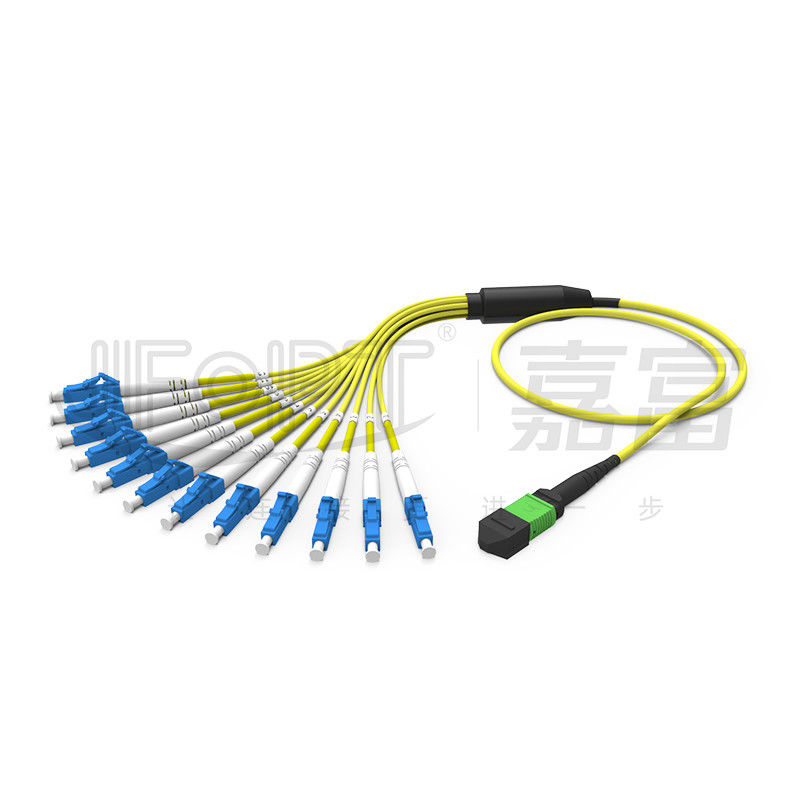

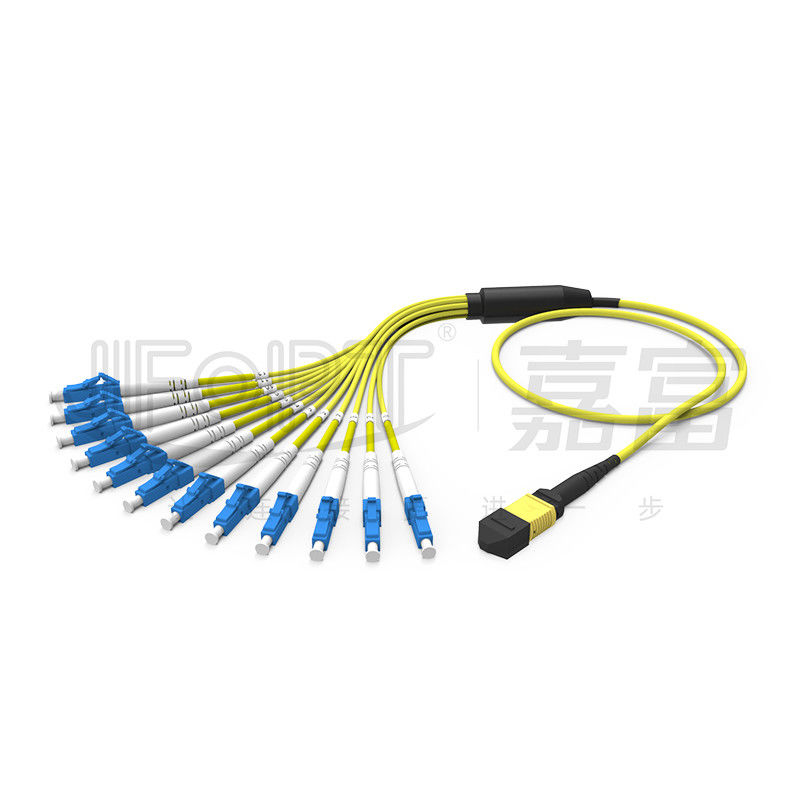

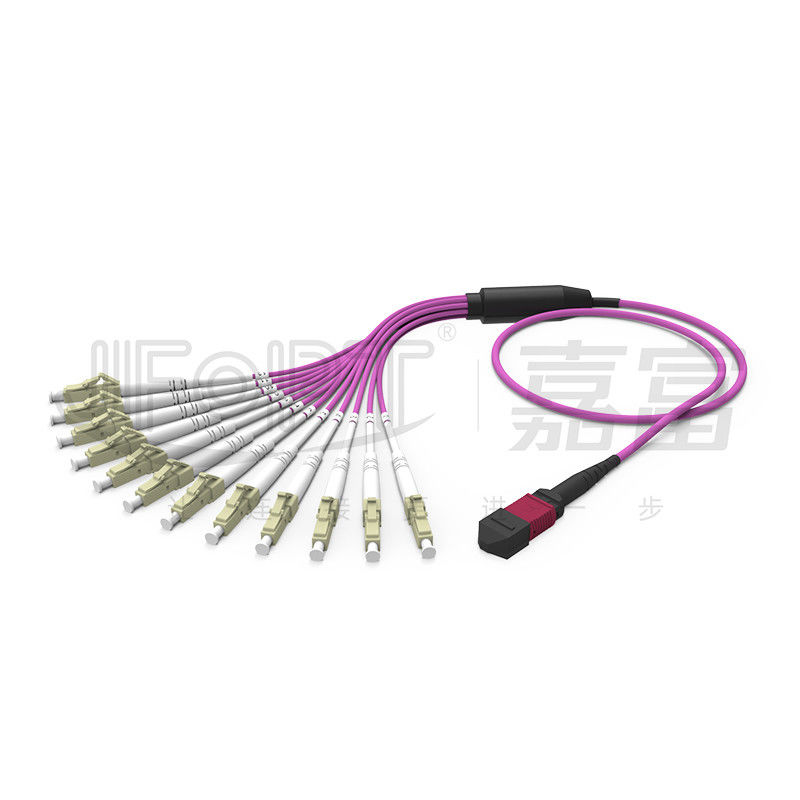

MPO-LC/SC/FC/ST Short Branch Patch Cord - 12 fibers MPO - LC Duplex MPO Breakout Cable Multimode 50/125 3.0mm LSZH Aqua B polarity
MPO/MTP branch fiber jumpers are designed to convert the multi-fiber MPO/MTP connector into single-fiber LC/SC/FC/ST connectors using a branching structure. It is widely used in high-density integrated fiber optic environments such as data center. JFOPT MPO/MTP branch fiber jumpers are made with high-quality fiber from leading brands like Corning and Yangtze Optical Fiber, as well as high-quality MT and ceramic ferrules. Customized branching structures ensure long-term stable data transmission. JFOPT can provide various customization options such as connector types, cable lengths, branch lengths, branch materials and diameters, branching fiber counts and polarity, and cable colors to meet different wiring requirements.
♦ Features
|
① 12-fiber MPO-LC duplex connection
|
②Made with bend-insensitive OM3 fiber to improve transmission stability
|
|
|
|
③High-quality low-loss MT multifiber ferrules and low-loss ceramic ferrules
|
④Utilizes premium fiber from leading brands like Corning and Yangtze Optical Fiber
|
|
|
|
⑤Available in various branching structures such as 0.9mm/2.0mm/3.0mm furcation tubes
|
⑥ High-density cabling, saving space
|
|
|
|
⑦ Easy and time-saving installation
|
-
|
|
-
|
♦ Applications
1.Data center cabling
2.40G/100G optical communication systems
3.Fiber optic communication systems, cable TV networks, telecom networks
4.Local area networks (LANs), wide area networks (WANs), FTTx
♦ MPO/MTP Connector Parameters
|
Connector Type |
Insertion Loss |
Return Loss |
|||
|
Typical |
Maximum |
||||
|
MPO Connector |
SM Standard |
0.2dB |
0.75dB |
APC≥60dB |
|
|
SM Low Loss |
0.1dB |
0.35dB |
|||
|
MM Standard |
0.2dB |
0.6dB |
PC≥25dB |
||
|
MM Low Loss |
0.1dB |
0.35dB |
|||
|
MTP Connector |
SM Standard |
0.25dB |
0.5dB |
APC≥60dB |
|
|
SM Low Loss |
0.12dB |
0.25dB |
|||
|
MM Standard |
0.2dB |
0.45dB |
PC≥25dB |
||
|
MM Low Loss |
0.12dB |
0.25dB |
|||
|
Male/Female |
Male: with Pin, Female: without Pin |
||||
♦ SC/LC/FC/ST Connector Parameters
|
Connector Type |
Insertion Loss |
Return Loss |
|
|
SC/LC/FC/ST |
SM |
≤0.3dB |
APC≥60dB |
|
MM |
≤0.3dB |
UPC≥25dB |
|
♦ MPO/MTP 3D Geometric Parameters
|
Items |
Max |
Min |
||
|
Radius of curvature (mm) |
X |
2000 |
-10000 |
|
|
Y |
- |
5 |
||
|
Angle (°) |
X |
0.15 |
-0.15 |
|
|
Y(APC) |
8.2 |
7.8 |
||
|
Y(PC) |
0.2 |
-0.2 |
||
|
Radius of curvature of optical core (mm) |
- |
1 |
||
|
Fiber height (nm) |
3500 |
1000 |
||
|
Height difference of adjacent fiber (nm) |
500 |
N/A |
||
|
Maximum negative coplanar (nm) |
300 |
N/A |
||
♦ SC/LC/FC/ST 3D Geometric Parameters (Optional)
|
Items |
UPC |
APC |
||||
|
SC/FC/ST |
LC |
SC/FC |
LC |
|||
|
SM |
MM |
SM |
MM |
SM |
SM |
|
|
Radius of curvature (mm) |
10-25 |
7-25 |
5-12 |
|||
|
Apex offset (μm) |
≤50 |
≤30 |
||||
|
Fiber Depressed (nm) |
±100 |
|||||
|
Angle deviation (°) |
0 |
8±0.3 |
||||
|
Bond angle deviation (°) |
0 |
±0.5 |
||||
|
Fiber diameter (μm) |
123-135 |
|||||
♦ Connector Color Options
|
MPO connector |
||||
|
Single mode |
Green |
Yellow |
||
|
Reference color number PANTONE 2270C |
Reference color number PANTONE 100C |
|||
|
|
|
|||
|
Multimode |
Beige |
Aqua |
||
|
Reference color number PANTONE 7534C |
Reference color number PANTONE 2226C |
|||
|
|
|
|||
|
Violet |
- |
|||
|
Reference color number PANTONE 7641C |
||||
|
|
||||
|
MTP connector |
||||
|
Single mode |
Green |
Yellow |
||
|
Reference color number PANTONE 346C |
Reference color number PANTONE 106C |
|||
|
|
|
|||
|
Multimode |
Beige |
Black |
||
|
Reference color number PANTONE 7534U |
Reference color number PANTONE Black 6C |
|||
|
|
|
|||
|
Aqua |
Heather Violet |
|||
|
Reference color number PANTONE 310C |
Reference color number PANTONE 1905C |
|||
|
|
|
|||
|
Munsell Violet |
Magenta |
|||
|
Reference color number PANTONE 2587C |
Reference color number PANTONE 208C |
|||
|
|
|
|||
|
Lime Green |
- |
|||
|
Reference color number PANTONE 375C |
||||
|
|
||||
|
LC connector |
||||
|
Single mode |
Blue |
Green |
||
|
|
|
|||
|
Multimode |
Beige |
Aqua |
||
|
|
|
|||
|
Heather Violet |
Lime Green |
|||
|
|
|
|||
♦ Optical Cable Parameters
|
Item |
Parameter |
|||
|
Fiber type |
Optional G652D/G657A1/OM1/OM2/OM3/OM4/OM5 |
|||
|
Fiber count |
Optional 8/12/16/24 |
|||
|
Reinforcement element |
Aramid yarn |
|||
|
Outer sheath material |
Optional LSZH/PVC/TPU |
|||
|
Outer sheath diameter |
3.0mm |
|||
|
Outer sheath color |
Custom made |
|||
|
Max. Tensile Strength (long term) |
80N |
|||
|
Max. Tensile Strength (short term) |
150N |
|||
|
Max. crush resistance (long term) |
100N/cm |
|||
|
Max. crush resistance (short term) |
500N/cm |
|||
|
Minimum bending radius (dynamic) |
20D |
|||
|
Minimum bending radius (static) |
10D |
|||
|
Operating temperature |
-20~60℃ |
|||
|
Storage temperature |
-20~60℃ |
|||
|
Flame retardance |
Optional OFN/OFNR/OFNP |
|||
♦ LC Connector Options
|
Duplex product selection |
|||||
|
Cable diameter |
Boot type |
Picture |
Drawing |
||
|
2.0mm |
Standard |
|
|
||
|
3.0mm |
Standard |
|
|
||
|
Single product selection |
|||||
|
Cable diameter |
Boot type |
Picture |
Drawing |
||
|
0.9mm |
Standard |
|
|
||
|
2.0mm |
Standard |
|
|
||
|
3.0mm |
Standard |
|
|
||
♦ Branching Options
|
|
|
|
Main Cable Stripping Structure |
|
|
|
|
|
Fanout with equal length |
Fanout with unequal length |
|
|
|
|
Branching of direct 0.9mm subunit |
|
|
|
|
|
Branching of direct 2.0/3.0mm subunit |
|
♦ Polarity Selection
|
MPO/MTP |
||||
|
|
||||
|
|
|
LC |
||||
|
|
||||
|
|
♦ Product Packaging
|
|
|
|
Thickened anti-static bag |
Thickened carton |
♦ Factory Strength
|
Specialization: With over 20 years of experience in MPO and conventional fiber optic jumper production, JFOPT has a professional R&D team and production equipment dedicated to meeting various installation needs. Our products have passed multiple international certifications and tests. |
|
||||
|
Manufacturing Capability: JFOPT has multiple production lines for MPO and conventional connectors, as well as cable and branching equipment, ensuring fast delivery. |
|
||||
|
Quality Control: JFOPT has strict quality control measures in place, including factory end-face inspection and 100% testing, using professional testing equipment to ensure stable transmission performance. |
|
||||
|
Standardization: JFOPT can provide various customization services for connector types, cable types, outer diameters, color, wire sequences, packaging, and more, and also support custom production based on customer-provided designs or samples, ensuring consistency and performance stability to meet different wiring requirements. |
|
||||
|
Technological Innovation: JFOPT focuses on technological innovation and has a professional R&D team dedicated to the development and production of various high-performance fiber optic jumpers, meeting the changing market demands. |
|
||||
|
Service and Technical Support: JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and after-sales maintenance, to meet customer needs and ensure customer satisfaction. |
|
||||
