MTP 12*8 96C G657A1 LSZH 13.5mm PatchCord
Contact Us

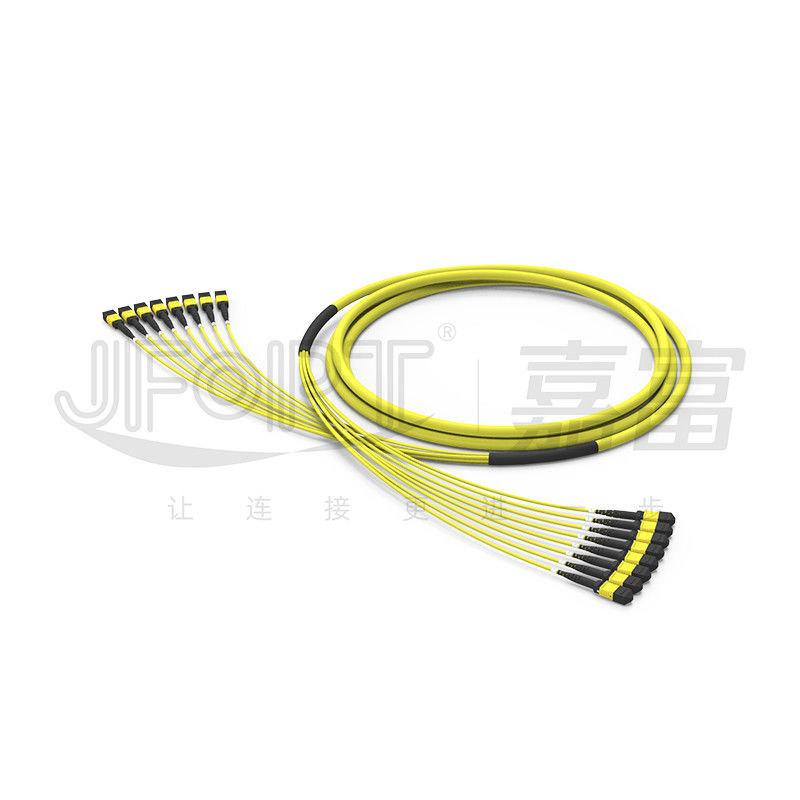

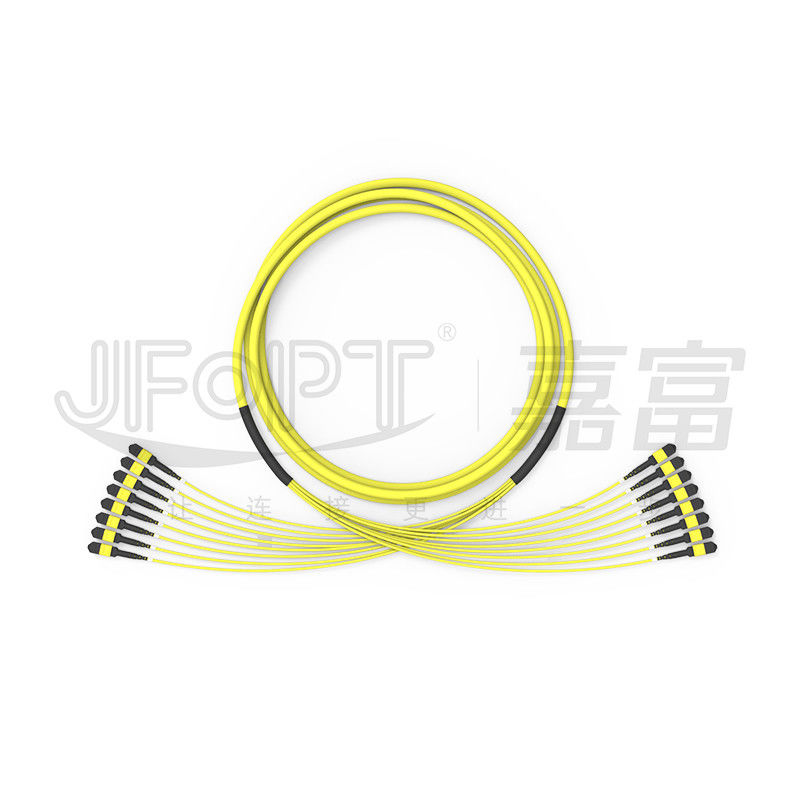

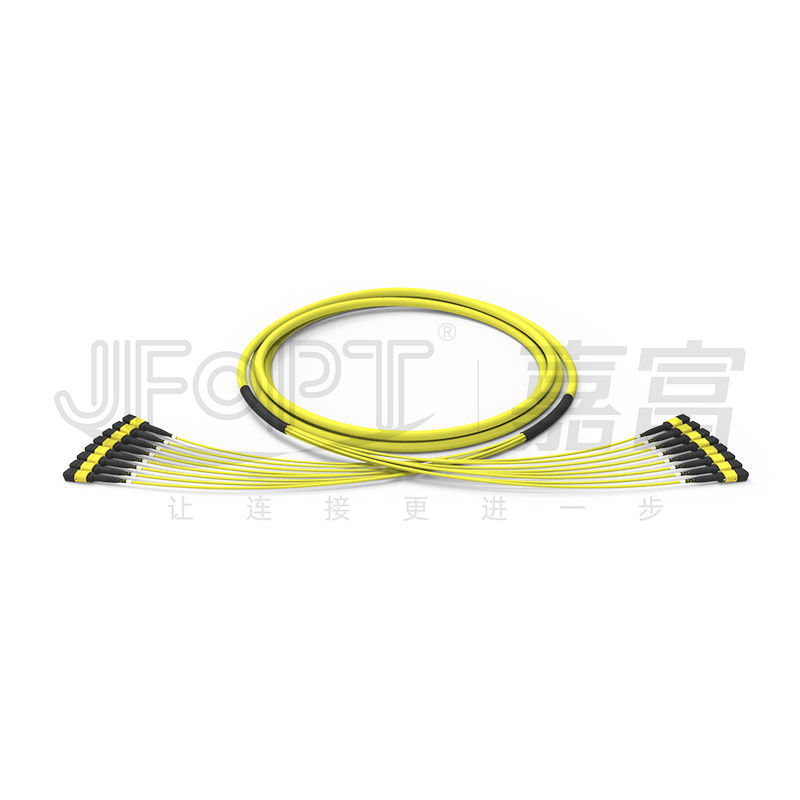

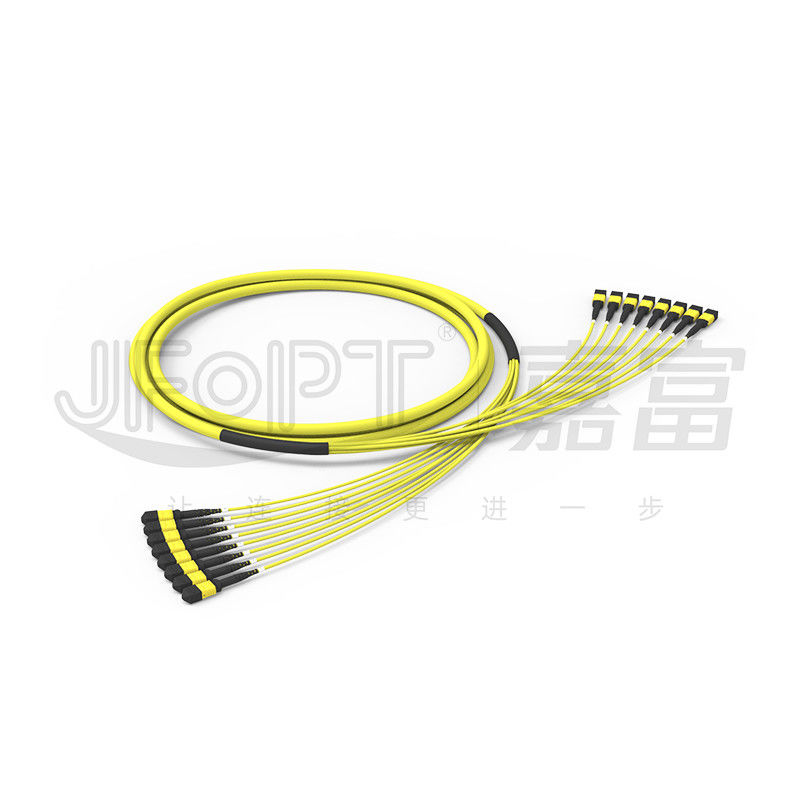

MTP Multi - Fiber Trunk Cable 96 Fibers 8 Units G657A1 Bend - Resistant Low Loss LSZH Outer Diameter 13.5mm MTP Patch Cord
JFOPT has a complete set of imported high-precision MTP production and testing equipment. The production process is always calibrated for equipment and processes according to the IEC 3D standard to ensure that our products pass 100% of the tests. We can produce MTP-MTP fiber jumpers ranging from 8 cores to 144 cores. Typically, large fiber counts cables are designed with subunits, and the number of cores per subunit and total subunits can be customized to help customers achieve high integration, high-density wiring, and branching. JFOPT MTP and MPO single-mode jumpers use G657A1 or higher bend-resistant fiber to ensure maximum safety of the connections. MTP connectors can be equipped with alignment pins for compatibility between male and female connectors. The brand-new original USCONEC connectors have passed environmental certifications such as REACH/ROHS.
♦ Features
|
① Large fiber count with small outer diameter for high-density wiring |
②G657A1 bend-insensitive fiber for improved transmission stability |
||||
|
|
|
||||
|
③ Single-ended options available for 12 cores and 24 cores |
④100% factory termination and testing to guarantee transmission performance |
||||
|
|
|
||||
|
⑤Each branch can be labeled according to requirements for easy wiring and maintenance |
|
||||
|
|
|
||||
♦ Applications
1.Fiber access networks.
2.Fiber data transmission.
3.Fiber communication systems, cable TV networks, telecommunications networks.
4.Local area networks (LANs), wide area networks (WANs), FTTx.
♦ MPO/MTP Connector Parameters
|
Connector Type |
Insertion Loss |
Return Loss |
|||
|
Typical |
Maximum |
||||
|
MTP Connector |
SM Standard |
0.25dB |
0.5dB |
APC≥60dB |
|
|
SM Low Loss |
0.12dB |
0.25dB |
|||
|
MM Standard |
0.2dB |
0.45dB |
PC≥25dB |
||
|
MM Low Loss |
0.12dB |
0.25dB |
|||
|
Male / Female |
Male : with Pin , Female : without Pin |
||||
♦ Cable Parameters
|
Item |
Parameters |
||||||
|
Fiber Type |
G652D / G657A1 / G657A2 / OM1 / OM2 / OM3 / OM4 / OM5 |
||||||
|
Fiber Count |
24 |
48 |
72 |
96 |
144 |
288 |
|
|
Unit Count |
12 Cores / Units |
12 Cores / Units |
12 Cores / Units |
12 Cores / Units |
12 Cores / Units |
12 Cores / Units |
24 Cores / Units |
|
Central Strength Member |
/ |
/ |
FRP |
||||
|
Sub-cable Unit Outer Diameter |
3.0mm |
||||||
|
Sub-cable Unit Jacket Material |
PVC / LSZH |
||||||
|
Sub-cable Unit Jacket Color |
Yellow / Orange / Green / Heather Violet / Customization |
||||||
|
Sub-cable Unit Strength Member |
Aramid Yarn |
||||||
|
Outer Jacket Diameter |
9.5mm |
9.5mm |
11.5mm |
13.5mm |
17.0mm |
||
|
Outer Jacket Material |
|
|
|
PVC / LSZH |
|
|
|
|
Outer Jacket Color |
Yellow / Orange / Green / Heather Violet / Customization |
||||||
|
Long-term Tensile Strength |
300N |
200N |
400N |
800N |
1600N |
||
|
Short-term Tensile Strength |
600N |
400N |
1000N |
1500N |
3000N |
||
|
Long-term Crush Resistance |
300N/10cm |
||||||
|
Short-term Crush Resistance |
1000N/10cm |
||||||
|
Minimum Dynamic Bending Radius |
20D |
||||||
|
Minimum Static Bending Radius |
10D |
||||||
|
Operating Temperature |
-20~60℃ |
||||||
|
Storage Temperature |
-20~60℃ |
||||||
|
Fire Rating |
OFN / OFNR / OFNP |
||||||
♦ 3D Geometric Parameters
|
Items |
Max |
Min |
||
|
Radius of curvature (mm) |
X |
2000 |
-10000 |
|
|
Y |
- |
5 |
||
|
Angle (°) |
X |
0.15 |
-0.15 |
|
|
Y(APC) |
8.2 |
7.8 |
||
|
Y(PC) |
0.2 |
-0.2 |
||
|
Radius of curvature of optical core (mm) |
- |
1 |
||
|
Fiber height (nm) |
3500 |
1000 |
||
|
Height difference of adjacent fiber (nm) |
500 |
N/A |
||
|
Maximum negative coplanar (nm) |
300 |
N/A |
||
♦ Connector Color Options
|
MTP connector |
||||
|
SM |
Green |
Yellow |
||
|
Reference color number PANTONE 346C |
Reference color number PANTONE 106C |
|||
|
|
|
|||
|
MM |
Beige |
Black |
||
|
Reference color number PANTONE 7534U |
Reference color number PANTONE Black 6C |
|||
|
|
|
|||
|
Aqua |
Heather Violet |
|||
|
Reference color number PANTONE 310C |
Reference color number PANTONE 1905C |
|||
|
|
|
|||
|
Munsell Violet |
Magenta |
|||
|
Reference color number PANTONE 2587C |
Reference color number PANTONE 208C |
|||
|
|
|
|||
|
Lime Green |
|
|||
|
Reference color number PANTONE 375C |
||||
|
|
||||
♦ Boot Selection
|
MTP Cable boot |
||||
|
Type |
Specification |
Cable style |
Picture |
Drawing |
|
Round boot |
3.0 Round boot, Length 33.2mm |
2.5/3.0 |
|
|
|
3.0 Round boot, Length 16mm |
3.0 |
|
|
|
|
3.0 Round FLEX boot, Length 33.6mm |
3.0 |
|
|
|
|
Push pull tab |
Universal for all Boot |
For various cable |
|
|
♦ Polarity selection
|
♦ Product Packaging
|
|
|
|
Thickened anti-static bag |
Thickened carton |
♦ Factory Strength
|
Specialization: JFOPT has been focusing on fiber jumpers production for over 20 years and possesses professional manufacturing techniques to produce high-quality and high-performance fiber jumpers. |
|
||||
|
Manufacturing capacity: JFOPT has 5 production lines and equipment, allowing for fast and efficient production of a large quantity of fiber jumpers to meet customer demands. |
|
||||
|
QC: JFOPT implements strict quality control measures, including professional quality inspections and monitoring at every stage from raw material procurement to production processes. Insertion loss testing and end-face inspection are conducted to ensure product quality. |
|
||||
|
Standardization: JFOPT can develop and strictly adhere to fiber jumper production standards according to customer requirements, ensuring consistency and performance stability of the products. |
|
||||
|
Technological Innovation: JFOPT emphasizes technological innovation and has a professional R&D team dedicated to developing more advanced and high-performance fiber jumpers. |
|
||||
|
Service and Technical Support: JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and post-sales maintenance, to meet customer needs and ensure customer satisfaction. |
|
||||
♦ Frequent Q&A
1.What should be considered when customizing MTP jumpers?
Length of MTP jumper / Cable material / Fiber type and core count / Connector gender (male/female) / Insertion loss specifications / Color preferences / Labeling requirements and customization
2.How do we ensure the stability of our MTP jumpers?
JFOPT's MTP jumpers undergo 100% 3D interference testing and 100% insertion loss testing to ensure parameter stability.
3.Our delivery lead time?
We have a monthly production capacity of 30,000+ MTP connectors, ensuring prompt delivery of your orders.
4.What other MTP derivative products do we offer?
We also manufacture MTP loopbacks, MTP attenuators, MTP gender changers, and MT jumpers, among other MTP-related products.
