MTP 24C OM4 50/125 LSZH 3.0/4.0mm Heather Violet
Contact Us

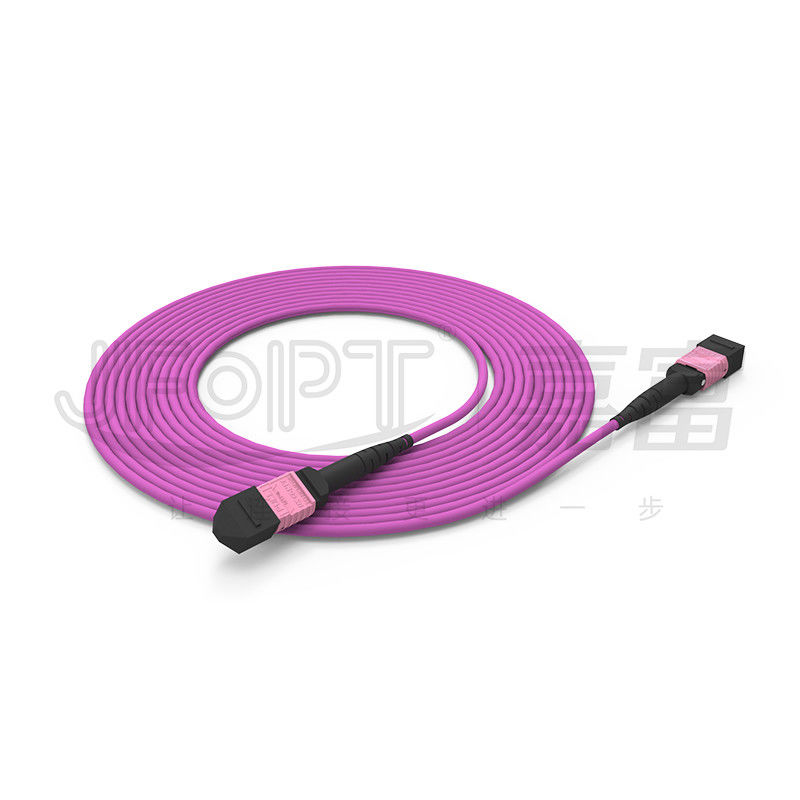

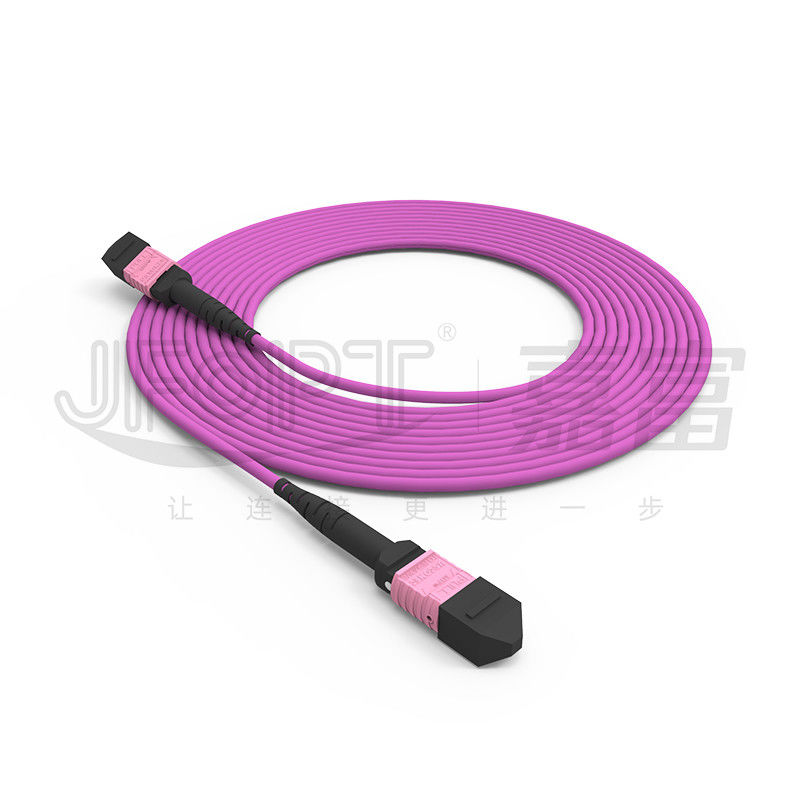

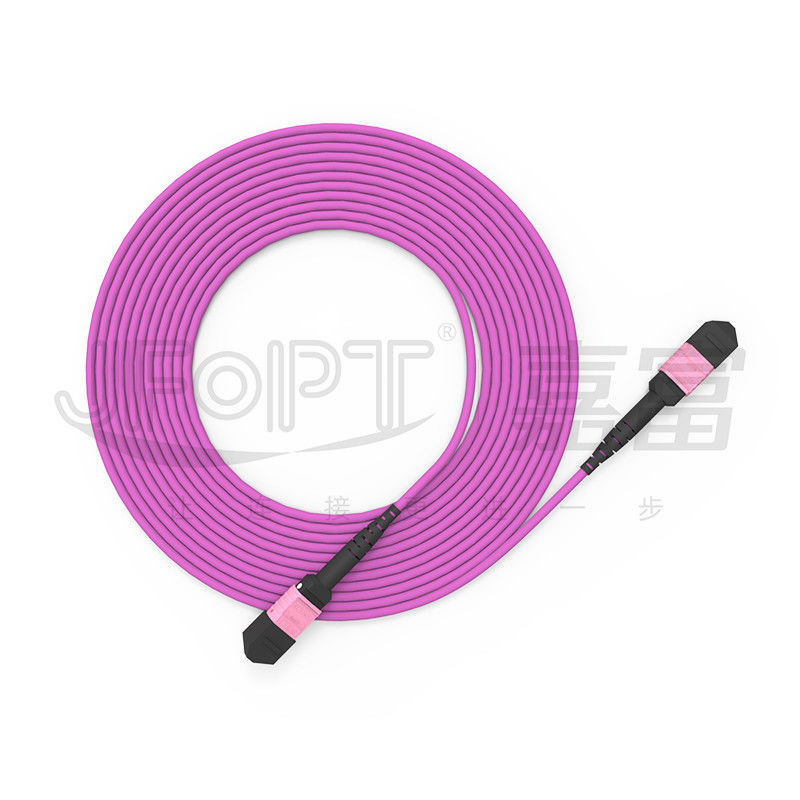

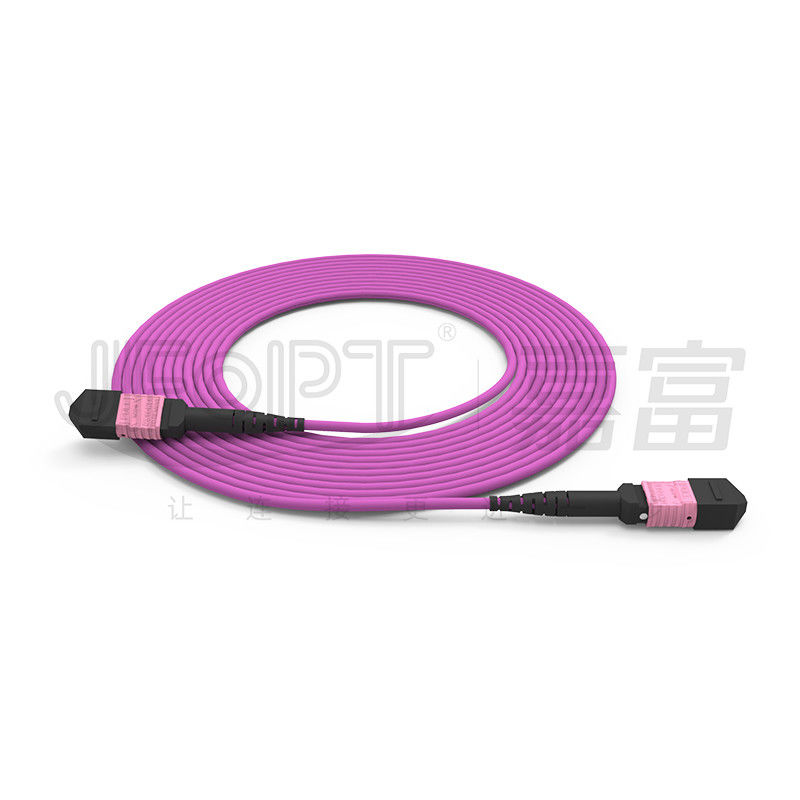

MTP 100G Patch Cord 24 Cores Multimode OM4 50/125 LSZH 3.0-4.0mm Heather Violet Jumper
JFOPT's daily production capacity for MTP-MTP 24 cores jumpers can reach 1000 units. Currently, the maket usage of 24 cores MTP jumpers is second only to that of 12 cores MTP jumpers. The 24 cores MTP jumpers can achieve 100G data transmission in a single jumper. JFOPT focuses on quality control of MTP jumpers from various aspects, including raw material , color, polishing process, inspections (IL&RL, end face, polarity), packaging, and transportation risks. Our Heather Violet MTP connector paired with same color backbone optical cable, and options for standard loss or low loss. All MTP/MPO jumpers from our company undergo 3D end-face interferometer testing. Choosing 3.0 or 4.0mm optical cables can be configured with aramid yarns of different tensile forces, providing customers with traction needs with more tensile solutions. OM4 multimode fiber selection enables full bandwidth and high-speed transmission over longer distances, making it widely used for wiring needs up to hundreds of meters. For higher demands, OM5 fiber can be chosen.
♦ Features
|
① 24 cores MTP ferrule with options for standard loss or low loss |
② Utilizes bend-insensitive OM4 fiber and imported aramid yarn for extended lifespan and stability |
||||
|
|
|
||||
|
③ Customizable male and female connectors, high-precision PIN |
④ Suitable for high-density wiring environments |
||||
|
|
|
||||
|
⑤ 100% original bulk parts and ferrules |
|
||||
|
|
|
||||
♦ Applications
1.Fiber access networks.
2.Fiber data transmission.
3.Fiber communication systems, cable TV networks, telecommunications networks.
4.Local area networks (LANs), wide area networks (WANs), FTTx.
♦ MTP Connector Parameters
|
Connector Type |
Insertion Loss |
Return Loss |
|||
|
Typical |
Maximum |
||||
|
MTP Connector |
SM Standard |
0.25dB |
0.5dB |
APC≥60dB |
|
|
SM Low Loss |
0.12dB |
0.25dB |
|||
|
MM Standard |
0.2dB |
0.45dB |
PC≥25dB |
||
|
MM Low Loss |
0.12dB |
0.25dB |
|||
|
Male / Female |
Male : with Pin , Female : without Pin |
||||
♦ Cable Parameters
|
Items |
Parameters |
|||
|
Fiber Type |
Optional G652D/G657A1/OM1/OM2/OM3/OM4/OM5 |
|||
|
Fiber Count |
Optional 8/12/16/24 |
|||
|
Strength Member |
Aramid yarn |
|||
|
Outer Jacket Material |
Optional LSZH/PVC/TPU |
|||
|
Outer Jacket Diameter |
3.0mm |
|||
|
Outer Jacket Color |
Yellow / Orange / Green / Heather Violet / Customization |
|||
|
Tensile Strength (Long-term) |
80N |
|||
|
Tensile Strength (Short-term) |
150N |
|||
|
Crush Resistance (Long-term) |
100N/cm |
|||
|
Crush Resistance (Short-term) |
500N/cm |
|||
|
Minimum Bending Radius (Dynamic) |
20D |
|||
|
Minimum Bending Radius (Static) |
10D |
|||
|
Operating Temperature |
-20~60℃ |
|||
|
Storage Temperature |
-20~60℃ |
|||
|
Fire Rating |
Optional OFN/OFNR/OFNP |
|||
|
Items |
Parameters |
|||
|
Fiber Type |
Optional G652D/G657A1/OM1/OM2/OM3/OM4/OM5 |
|||
|
Fiber Count |
2~12 cores |
|||
|
Strength Member |
Aramid yarn |
|||
|
Outer Jacket Material |
Optional LSZH/PVC/TPU |
|||
|
Outer Jacket Diameter |
2.5x5.0mm |
|||
|
Outer Jacket Color |
Yellow / Orange / Green / Heather Violet / Customization |
|||
|
Tensile Strength (Long-term) |
100N |
|||
|
Tensile Strength (Short-term) |
200N |
|||
|
Crush Resistance (Long-term) |
200N/cm |
|||
|
Crush Resistance (Short-term) |
500N/cm |
|||
|
Minimum Bending Radius (Dynamic) |
50mm |
|||
|
Minimum Bending Radius (Static) |
30mm |
|||
|
Operating Temperature |
-20~60℃ |
|||
|
Storage Temperature |
-20~60℃ |
|||
|
Fire Rating |
Optional OFN/OFNR/OFNP |
|||
♦ 3D Geometric Parameters
|
Items |
Max |
Min |
||
|
Radius of curvature (mm) |
X |
2000 |
-10000 |
|
|
Y |
- |
5 |
||
|
Angle (°) |
X |
0.15 |
-0.15 |
|
|
Y(APC) |
8.2 |
7.8 |
||
|
Y(PC) |
0.2 |
-0.2 |
||
|
Radius of curvature of optical core (mm) |
- |
1 |
||
|
Fiber height (nm) |
3500 |
1000 |
||
|
Height difference of adjacent fiber (nm) |
500 |
N/A |
||
|
Maximum negative coplanar (nm) |
300 |
N/A |
||
♦ Connector Color Options
|
MTP connector |
||||
|
SM |
Green |
Yellow |
||
|
Reference color number PANTONE 346C |
Reference color number PANTONE 106C |
|||
|
|
|
|||
|
MM |
Beige |
Black |
||
|
Reference color number PANTONE 7534U |
Reference color number PANTONE Black 6C |
|||
|
|
|
|||
|
Aqua |
Heather Violet |
|||
|
Reference color number PANTONE 310C |
Reference color number PANTONE 1905C |
|||
|
|
|
|||
|
Munsell Violet |
Magenta |
|||
|
Reference color number PANTONE 2587C |
Reference color number PANTONE 208C |
|||
|
|
|
|||
|
Lime Green |
|
|||
|
Reference color number PANTONE 375C |
||||
|
|
||||
♦ Connector Boot Selection
|
MTP boot type |
||||
|
Type |
Specification |
Applicable cable OD |
Picture |
Drawings |
|
Round boot |
2.0 boot L=33.2mm |
2.0 |
|
|
|
3.0 boot L=33.2mm |
2.5/3.0 |
|
|
|
|
3.0 boot L=16mm |
3.0 |
|
|
|
|
3.0 bendable boot L= 33.6mm |
3.0 |
|
|
|
|
3.6 boot L=33.2mm |
3.6 |
|
|
|
|
3.6 boot L= 16mm |
3.6 |
|
|
|
|
3.6 bendable boot L= 33.6mm |
3.6 |
|
|
|
|
4.5 boot L=33.2mm |
4.0/4.5 |
|
|
|
|
5.5 boot length 33.2mm |
5.0/5.5 |
|
|
|
|
Ribbon Cable boot |
3.0*6.0 boot L=33.2mm |
3.0*6.0 |
|
|
|
2.5*5.0 boot L= 21.3mm |
2.5*5.0 |
|
|
|
|
Bare ribbon fiber boot |
Bare ribbon fiber boot L=19mm |
Bare Ribbon Fiber |
|
|
|
Push-pull tab |
Universal for all boots |
Universal |
|
|
♦ Polarity Selection
|
|
♦ Product Packaging
|
|
|
|
Thickened anti-static bag |
Thickened carton |
♦ Factory Strength
|
Professional: JFOPT has been focusing on fiber jumpers production for over 20 years and possesses professional manufacturing techniques to produce high-quality and high-performance fiber jumpers. |
|
||||
|
Manufacturing capacity: JFOPT has 5 production lines and equipment, allowing for fast and efficient production of a large quantity of fiber jumpers to meet customer demands. |
|
||||
|
QC: JFOPT implements strict quality control measures, including professional quality inspections and monitoring at every stage from raw material procurement to production processes. Insertion loss testing and end-face inspection are conducted to ensure product quality. |
|
||||
|
Standard Implementation: JFOPT can develop and strictly adhere to fiber jumper production standards according to customer requirements, ensuring consistency and performance stability of the products. |
|
||||
|
Technological Innovation: JFOPT emphasizes technological innovation and has a professional R&D team dedicated to developing more advanced and high-performance fiber jumpers. |
|
||||
|
Service Support: JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and post-sales maintenance, to meet customer needs and ensure customer satisfaction. |
|
||||
♦ Frequent Q&A
1.What should be considered when customizing MTP jumpers?
Length of MTP jumper / Cable material / Fiber type and core count / Connector gender (male/female) / Insertion loss specifications / Color preferences / Labeling requirements and customization
2.How do we ensure the stability of our MTP jumpers?
JFOPT's MTP jumpers undergo 100% 3D interference testing and 100% insertion loss testing to ensure parameter stability.
3.Our delivery lead time?
We have a monthly production capacity of 30,000+ MTP connectors, ensuring prompt delivery of your orders.
4.What other MTP derivative products do we offer?
We also manufacture MTP loopbacks, MTP attenuators, MTP gender changers, and MT jumpers, among other MTP-related products.
