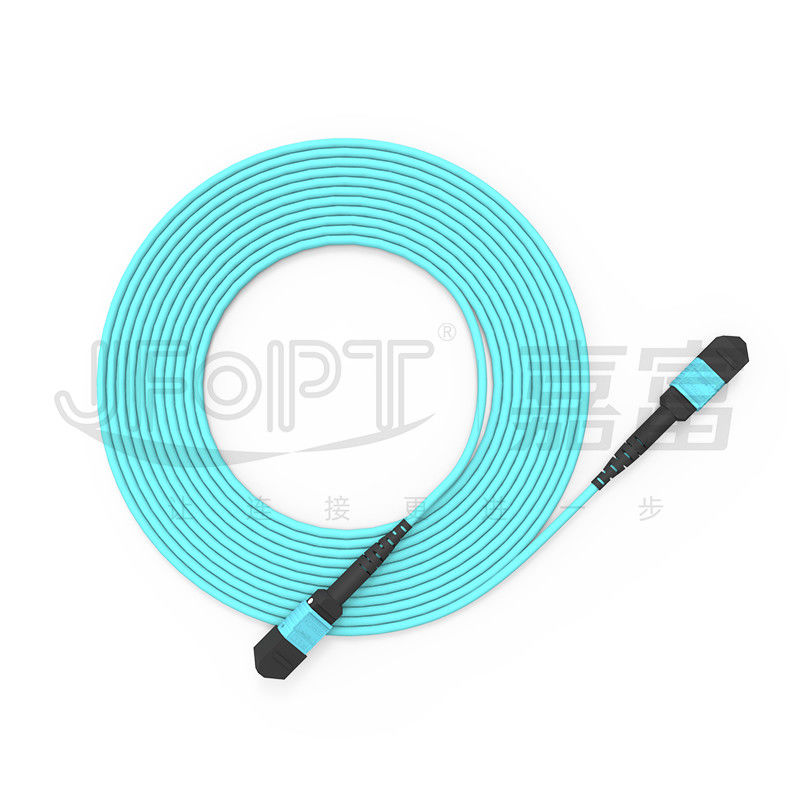

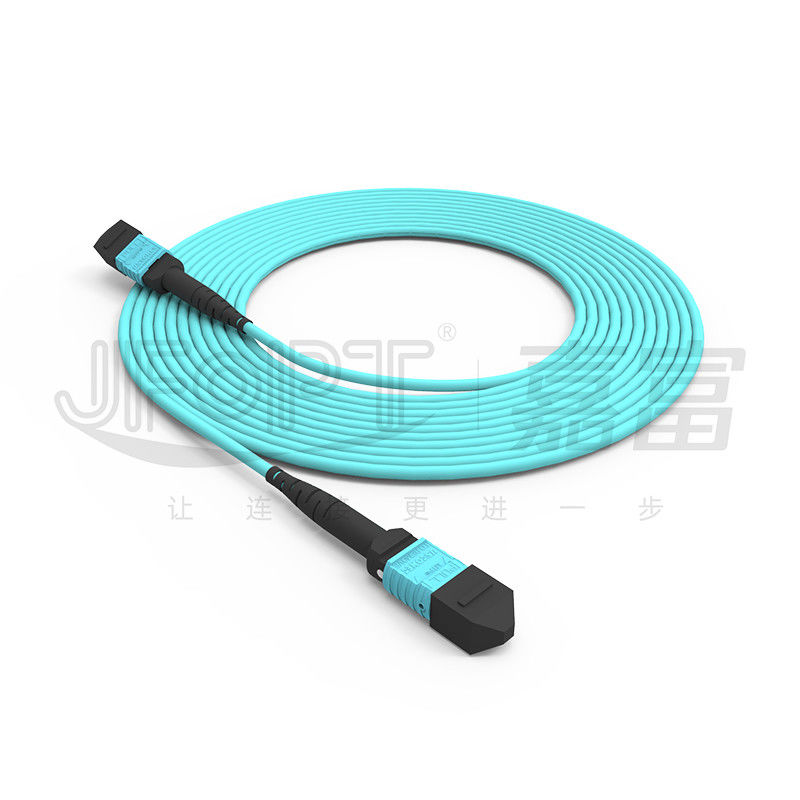

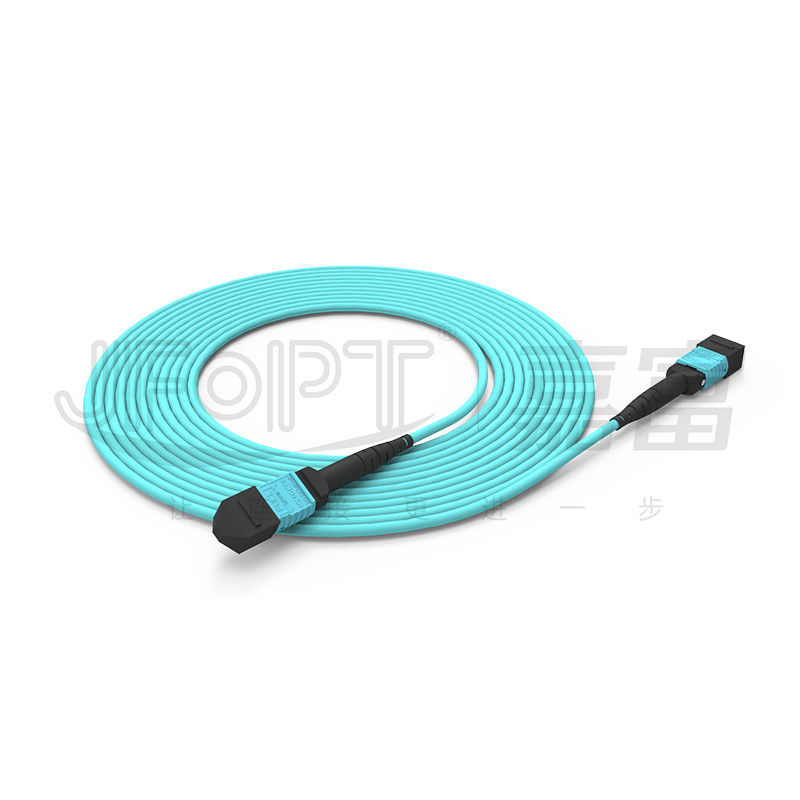

MTP 16 Cores Fiber Jumper OM3 / OM4 / OM5 Multimode 3.0 LSZH Aqua MTP Patch Cord
JFOPT MTP and MTP PRO both use USCONEC original imported connectors and ferrules, and undergo a 5-step polishing process to ensure connector performance meets IEC standards. MTP-MTP backbone jumpers are widely used for connectivity between data center rooms and buildings. The 16 cores MTP connector features a key-up/key-down design, and when combined with a dedicated 16-core MPO/MTP adapter, it enables signal transmission for 8 channels within a single cable, significantly reducing front panel space and wiring volume. JFOPT's 16 cores MTP jumpers utilize mini cables or ribbon cables reinforced with high-tensile imported aramid yarn, and OM3/OM4/OM5 fibers from brands like YOFC or Corning, with a brand new outer sheath material that provides long lifespan, wide adaptability, and high stability for data transmission.
♦ Features
|
① 16 cores fiber optic cable connection, single row 16 cores MTP ferrule |
②Made with bend-insensitive OM3/OM4/OM5 fibers to enhance transmission stability |
||||
|
|
|
||||
|
③ Available with USCONEC standard loss and low loss MTP ferrules to meet different budget and loss requirements |
④ 100% factory terminated and tested to ensure transmission performance |
||||
|
|
|
||||
|
⑤ Suitable for high-density wiring environments |
⑥ 100% original imported connectors and ferrules |
||||
|
|
|
||||
♦ Applications
1.Fiber access networks.
2.Fiber data transmission.
3.Fiber communication systems, cable TV networks, telecommunications networks.
4.Local area networks (LANs), wide area networks (WANs), FTTx.
♦ MTP Connector Parameters
|
Connector Type |
Insertion Loss |
Return Loss |
|||
|
Typical |
Maximum |
||||
|
MTP Connector |
SM Standard |
0.25dB |
0.5dB |
APC≥60dB |
|
|
SM Low Loss |
0.12dB |
0.25dB |
|||
|
MM Standard |
0.2dB |
0.45dB |
PC≥25dB |
||
|
MM Low Loss |
0.12dB |
0.25dB |
|||
|
Male / Female |
Male : with Pin , Female : without Pin |
||||
♦ Cable Parameters
|
Items |
Parameters |
|||
|
Fiber Type |
Optional G652D/G657A1/OM1/OM2/OM3/OM4/OM5 |
|||
|
Fiber Count |
Optional 8/12/16/24 |
|||
|
Strength Member |
Aramid yarn |
|||
|
Outer Jacket Material |
Optional LSZH/PVC/TPU |
|||
|
Outer Jacket Diameter |
3.0mm |
|||
|
Outer Jacket Color |
Yellow / Orange / Green / Heather Violet / Customization |
|||
|
Tensile Strength (Long-term) |
80N |
|||
|
Tensile Strength (Short-term) |
150N |
|||
|
Crush Resistance (Long-term) |
100N/cm |
|||
|
Crush Resistance (Short-term) |
500N/cm |
|||
|
Minimum Bending Radius (Dynamic) |
20D |
|||
|
Minimum Bending Radius (Static) |
10D |
|||
|
Operating Temperature |
-20~60℃ |
|||
|
Storage Temperature |
-20~60℃ |
|||
|
Fire Rating |
Optional OFN/OFNR/OFNP |
|||
|
Items |
Parameters |
|||
|
Fiber Type |
Optional G652D/G657A1/OM1/OM2/OM3/OM4/OM5 |
|||
|
Fiber Count |
2~12 cores |
|||
|
Strength Member |
Aramid yarn |
|||
|
Outer Jacket Material |
Optional LSZH/PVC/TPU |
|||
|
Outer Jacket Diameter |
2.5x5.0mm |
|||
|
Outer Jacket Color |
Yellow / Orange / Green / Heather Violet / Customization |
|||
|
Tensile Strength (Long-term) |
100N |
|||
|
Tensile Strength (Short-term) |
200N |
|||
|
Crush Resistance (Long-term) |
200N/cm |
|||
|
Crush Resistance (Short-term) |
500N/cm |
|||
|
Minimum Bending Radius (Dynamic) |
50mm |
|||
|
Minimum Bending Radius (Static) |
30mm |
|||
|
Operating Temperature |
-20~60℃ |
|||
|
Storage Temperature |
-20~60℃ |
|||
|
Fire Rating |
Optional OFN/OFNR/OFNP |
|||
♦ 3D Geometric Parameters
|
Items |
Max |
Min |
||
|
Radius of curvature (mm) |
X |
2000 |
-10000 |
|
|
Y |
- |
5 |
||
|
Angle (°) |
X |
0.15 |
-0.15 |
|
|
Y(APC) |
8.2 |
7.8 |
||
|
Y(PC) |
0.2 |
-0.2 |
||
|
Radius of curvature of optical core (mm) |
- |
1 |
||
|
Fiber height (nm) |
3500 |
1000 |
||
|
Height difference of adjacent fiber (nm) |
500 |
N/A |
||
|
Maximum negative coplanar (nm) |
300 |
N/A |
||
♦ Connector Housing Color Selection
|
MTP connector |
||||
|
SM |
Green |
Yellow |
||
|
Reference color number PANTONE 346C |
Reference color number PANTONE 106C |
|||
|
|
|
|||
|
MM |
Beige |
Black |
||
|
Reference color number PANTONE 7534U |
Reference color number PANTONE Black 6C |
|||
|
|
|
|||
|
Aqua |
Heather Violet |
|||
|
Reference color number PANTONE 310C |
Reference color number PANTONE 1905C |
|||
|
|
|
|||
|
Violet |
Magenta |
|||
|
Reference color number PANTONE 2587C |
Reference color number PANTONE 208C |
|||
|
|
|
|||
|
Lime Green |
|
|||
|
Reference color number PANTONE 375C |
||||
|
|
||||
♦ Connector Boot Selection
|
MTP boot type |
||||
|
Type |
Specification |
Applicable cable OD |
Picture |
Drawings |
|
Round boot |
2.0 boot L=33.2mm |
2.0 |
|
|
|
3.0 boot L=33.2mm |
2.5/3.0 |
|
|
|
|
3.0 boot L=16mm |
3.0 |
|
|
|
|
3.0 bendable boot L= 33.6mm |
3.0 |
|
|
|
|
3.6 boot L=33.2mm |
3.6 |
|
|
|
|
3.6 boot L= 16mm |
3.6 |
|
|
|
|
3.6 bendable boot L= 33.6mm |
3.6 |
|
|
|
|
4.5 boot L=33.2mm |
4.0/4.5 |
|
|
|
|
5.5 boot L= 33.2mm |
5.0/5.5 |
|
|
|
|
Ribbon Cable boot |
3.0*6.0 boot L=33.2mm |
3.0*6.0 |
|
|
|
2.5*5.0 boot L= 21.3mm |
2.5*5.0 |
|
|
|
|
Bare ribbon fiber boot |
Bare ribbon fiber boot L=19mm |
Bare Ribbon Fiber |
|
|
|
Push-pull tab |
Universal for all boots |
Universal |
|
|
♦ Polarity Selection
|
|
♦ Product Packaging
|
|
|
|
Thickened anti-static bag |
Thickened carton |
♦ Factory Strength
|
Professional: JFOPT has been focusing on fiber jumpers production for over 20 years and possesses professional manufacturing techniques to produce high-quality and high-performance fiber jumpers. |
|
||||
|
Manufacturing capacity: JFOPT has 5 production lines and equipment, allowing for fast and efficient production of a large quantity of fiber jumpers to meet customer demands. |
|
||||
|
QC: JFOPT implements strict quality control measures, including professional quality inspections and monitoring at every stage from raw material procurement to production processes. Insertion loss testing and end-face inspection are conducted to ensure product quality. |
|
||||
|
Standard Implementation: JFOPT can develop and strictly adhere to fiber jumper production standards according to customer requirements, ensuring consistency and performance stability of the products. |
|
||||
|
Technological Innovation: JFOPT emphasizes technological innovation and has a professional R&D team dedicated to developing more advanced and high-performance fiber jumpers. |
|
||||
|
Service Support: JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and post-sales maintenance, to meet customer needs and ensure customer satisfaction. |
|
||||
♦ Frequent Q&A
1.What should be considered when customizing MTP jumpers?
Length of MTP jumper / Cable material / Fiber type and core count / Connector gender (male/female) / Insertion loss specifications / Color preferences / Labeling requirements and customization
2.How do we ensure the stability of our MTP jumpers?
JFOPT's MTP jumpers undergo 100% 3D interference testing and 100% insertion loss testing to ensure parameter stability.
3.Our delivery lead time?
We have a monthly production capacity of 30,000+ MTP connectors, ensuring prompt delivery of your orders.
4.What other MTP derivative products do we offer?
We also manufacture MTP loopbacks, MTP attenuators, MTP gender changers, and MT jumpers, among other MTP-related products.
