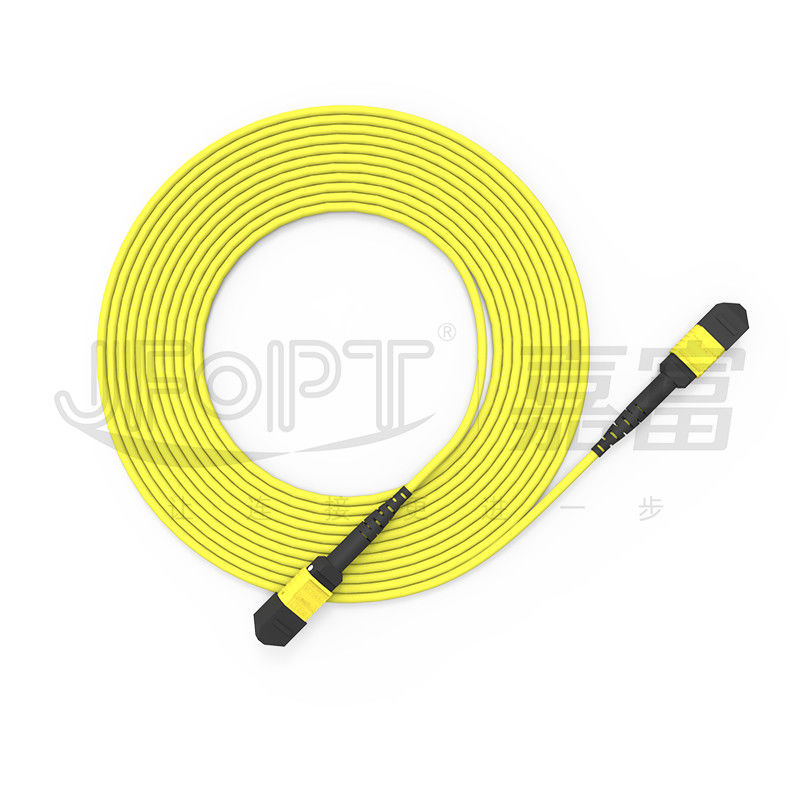

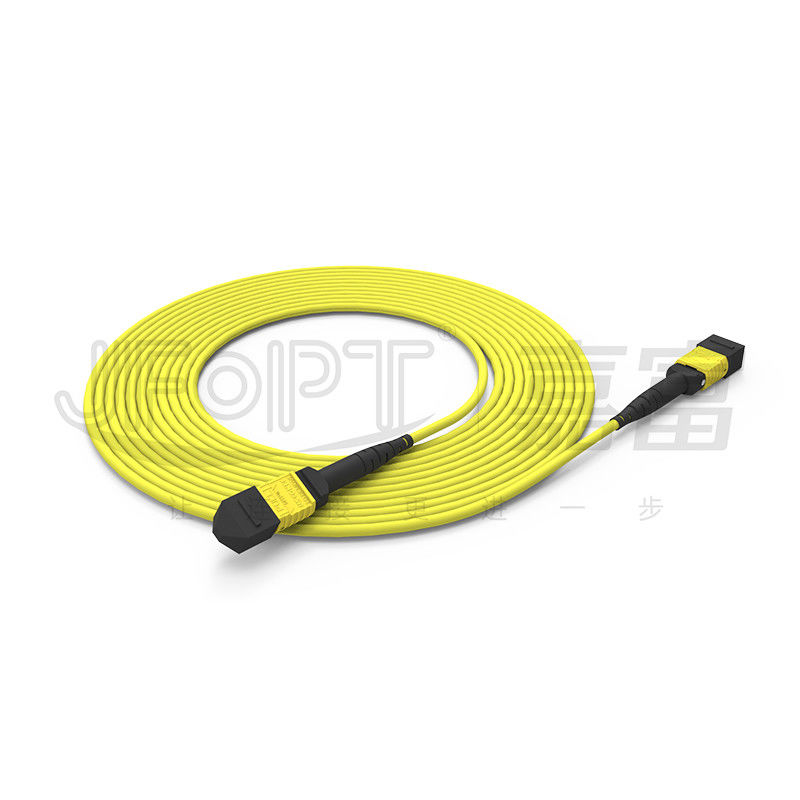

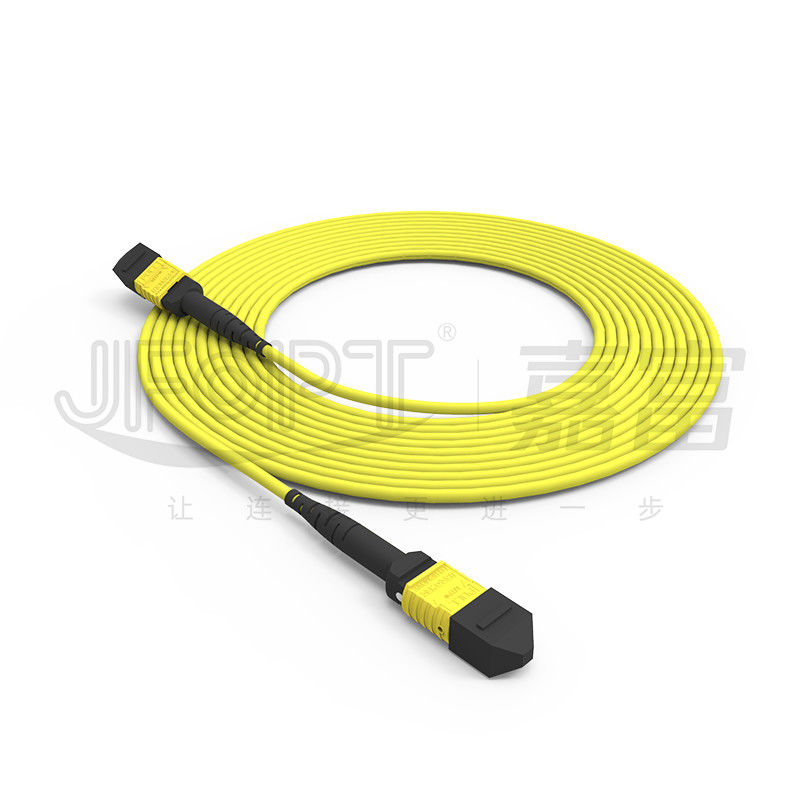

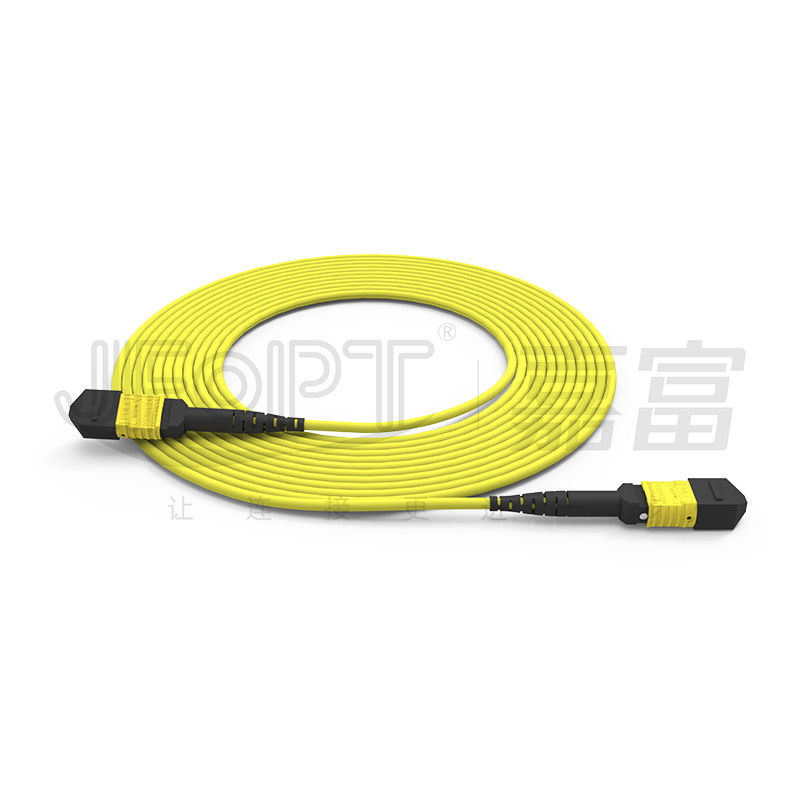

MTP USCONEC 8/12 Cores G657A1 SM APC 3.0 LSZH Low Loss LSZH Yellow MTP Patch Cord
JFOPT's MTP jumpers are equipped with USCONEC original connectors and internationally renowned brands fiber such as YOFC and Corning. We utilize high-precision and high-reliability production and testing equipment to ensure stable and reliable product quality. The mainstream design for MTP backbone jumpers is 8/12 cores, capable of achieving 40G transmission rate. They are commonly used for high-density MPO module box wiring or optical transceiver connections. In addition to USCONEC MTP connectors, JFOPT also offers other reliable brand connectors such as Senko, Suncall, Tlsintech and neutral brands, with reliable and guaranteed quality. Our MTP jumpers use 3.0mm mini round cables with a small outer diameter, saving wiring space. The Mini cables typically have LSZH outer sheath material with OFN/OFNR protection ratings. Furthermore, we can also provide ribbon bare fiber and ribbon cables, which only require the corresponding MTP boot for installation.
♦ Features
|
① Optional MTP connectors with male and female ends |
②G657A1 bend-insensitive fiber for enhanced transmission stability |
||||
|
|
|
||||
|
③ Connector available in multiple colors |
④100% interference testing to guarantee transmission performance |
||||
|
|
|
||||
|
⑤ Static bag packaging |
- |
||||
|
|
- |
||||
♦ Applications
1.Fiber access networks.
2.Fiber data transmission.
3.Fiber communication systems, cable TV networks, telecommunications networks.
4.Local area networks (LANs) , wide area networks (WANs) , FTTx.
♦ MTP Connector Parameters
|
Connector Type |
Insertion Loss |
Return Loss |
|||
|
Typical |
Maximum |
||||
|
MTP Connector |
SM Standard |
0.25dB |
0.5dB |
APC≥60dB |
|
|
SM Low Loss |
0.12dB |
0.25dB |
|||
|
MM Standard |
0.2dB |
0.45dB |
PC≥25dB |
||
|
MM Low Loss |
0.12dB |
0.25dB |
|||
|
Male / Female |
Male : with Pin , Female : without Pin |
||||
♦ Cable Parameters
|
Items |
Parameters |
|||
|
Fiber Type |
Optional G652D/G657A1/OM1/OM2/OM3/OM4/OM5 |
|||
|
Fiber Count |
Optional 8/12/16/24 |
|||
|
Strength Member |
Aramid yarn |
|||
|
Outer Jacket Material |
Optional LSZH/PVC/TPU |
|||
|
Outer Jacket Diameter |
3.0mm |
|||
|
Outer Jacket Color |
Yellow / Orange / Green / Heather Violet / Customization |
|||
|
Tensile Strength (Long-term) |
80N |
|||
|
Tensile Strength (Short-term) |
150N |
|||
|
Crush Resistance (Long-term) |
100N/cm |
|||
|
Crush Resistance (Short-term) |
500N/cm |
|||
|
Minimum Bending Radius (Dynamic) |
20D |
|||
|
Minimum Bending Radius (Static) |
10D |
|||
|
Operating Temperature |
-20~60℃ |
|||
|
Storage Temperature |
-20~60℃ |
|||
|
Fire Rating |
Optional OFN/OFNR/OFNP |
|||
♦ 3D Geometric Parameters
|
Items |
Max |
Min |
||
|
Radius of curvature (mm) |
X |
2000 |
-10000 |
|
|
Y |
- |
5 |
||
|
Angle (°) |
X |
0.15 |
-0.15 |
|
|
Y(APC) |
8.2 |
7.8 |
||
|
Y(PC) |
0.2 |
-0.2 |
||
|
Radius of curvature of optical core (mm) |
- |
1 |
||
|
Fiber height (nm) |
3500 |
1000 |
||
|
Height difference of adjacent fiber (nm) |
500 |
N/A |
||
|
Maximum negative coplanar (nm) |
300 |
N/A |
||
♦ Connector Housing Color Selection
|
MTP connector |
||||
|
SM |
Green |
Yellow |
||
|
Reference color number PANTONE 346C |
Reference color number PANTONE 106C |
|||
|
|
|
|||
|
MM |
Beige |
Black |
||
|
Reference color number PANTONE 7534U |
Reference color number PANTONE Black 6C |
|||
|
|
|
|||
|
Aqua |
Heather Violet |
|||
|
Reference color number PANTONE 310C |
Reference color number PANTONE 1905C |
|||
|
|
|
|||
|
Violet |
Magenta |
|||
|
Reference color number PANTONE 2587C |
Reference color number PANTONE 208C |
|||
|
|
|
|||
|
Lime Green |
|
|||
|
Reference color number PANTONE 375C |
||||
|
|
||||
♦ Connector Boot Selection
|
MTP Boot Type |
||||
|
Type |
Specification |
Applicable cable |
Picture |
Drawings |
|
Round Boot |
2.0 boot length 33.2mm |
2.0 |
|
|
|
3.0 boot length 33.2mm |
2.5/3.0 |
|
|
|
|
3.0 boot length 16mm |
3.0 |
|
|
|
|
3.0 bendable boot length 33.6mm |
3.0 |
|
|
|
|
3.6 boot length 33.2mm |
3.6 |
|
|
|
|
3.6 boot length 16mm |
3.6 |
|
|
|
|
3.6 bendable boot length 33.6mm |
3.6 |
|
|
|
|
4.5 boot length 33.2mm |
4.0/4.5 |
|
|
|
|
5.5 boot length 33.2mm |
5.0/5.5 |
|
|
|
|
Ribbon Cable Boot |
3.0*6.0 boot length 33.2mm |
3.0*6.0 |
|
|
|
2.5*5.0 boot length 21.3mm |
2.5*5.0 |
|
|
|
|
Bare ribbon fiber boot |
Bare ribbon fiber boot length 19mm |
Bare Ribbon Fiber |
|
|
|
Push-pull tab |
Universal for all boots |
Universal |
|
|
♦ Polarity Selection
|
|
♦ Product Packaging
|
|
|
|
Thickened anti-static bag |
Thickened carton |
♦ Factory Strength
|
Professional: JFOPT has been focusing on fiber jumpers production for over 20 years and possesses professional manufacturing techniques to produce high-quality and high-performance fiber jumpers. |
|
||||
|
Manufacturing capacity: JFOPT has 5 production lines and equipment, allowing for fast and efficient production of a large quantity of fiber jumpers to meet customer demands. |
|
||||
|
QC: JFOPT implements strict quality control measures, including professional quality inspections and monitoring at every stage from raw material procurement to production processes. Insertion loss testing and end-face inspection are conducted to ensure product quality. |
|
||||
|
Standard Implementation: JFOPT can develop and strictly adhere to fiber jumper production standards according to customer requirements, ensuring consistency and performance stability of the products. |
|
||||
|
Technological Innovation: JFOPT emphasizes technological innovation and has a professional R&D team dedicated to developing more advanced and high-performance fiber jumpers. |
|
||||
|
Service Support: JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and post-sales maintenance, to meet customer needs and ensure customer satisfaction. |
|
||||
♦ Frequent Q&A
1.What should be considered when customizing MTP jumpers?
Length of MTP jumper / Cable material / Fiber type and core count / Connector gender (male/female) / Insertion loss specifications / Color preferences / Labeling requirements and customization
2.How do we ensure the stability of our MTP jumpers?
JFOPT's MTP jumpers undergo 100% 3D interference testing and 100% insertion loss testing to ensure parameter stability.
3.Our delivery lead time?
We have a monthly production capacity of 30,000+ MTP connectors, ensuring prompt delivery of your orders.
4.What other MTP derivative products do we offer?
We also manufacture MTP loopbacks, MTP attenuators, MTP gender changers, and MT jumpers, among other MTP-related products.
