MPO-LC 12C MM(OM1/2/3/4/5) 0.9mm Patchcord
Contact Us
MPO/PC to LC/UPC Breakout Cable for MPO Modular Cassette

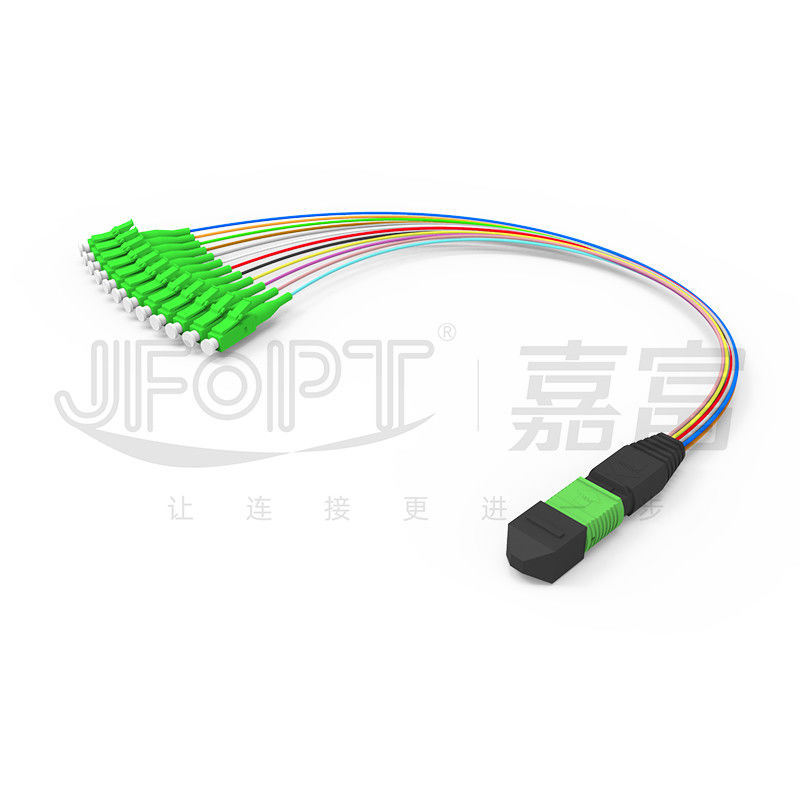

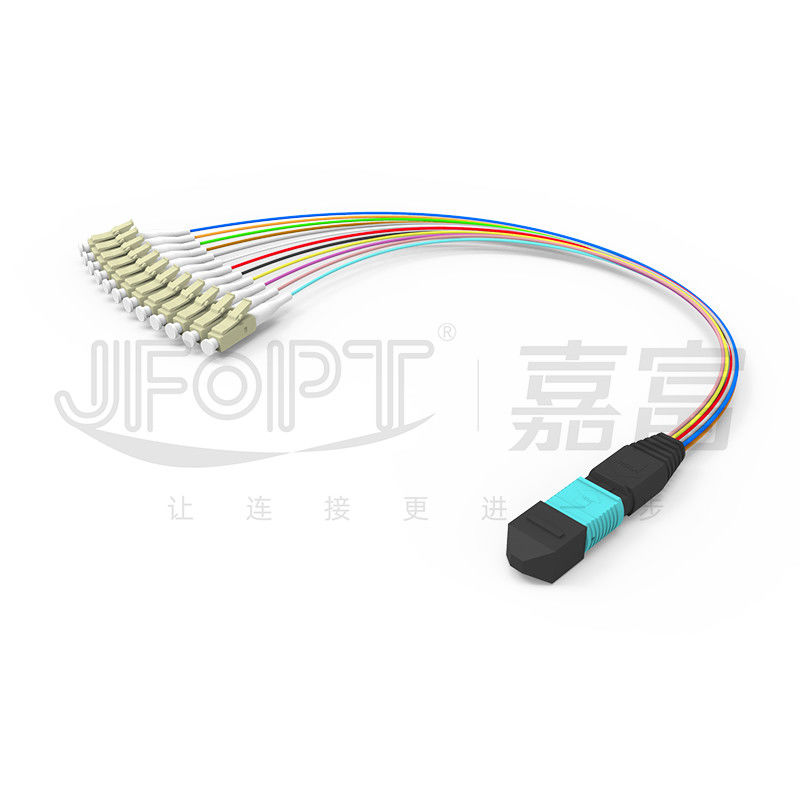

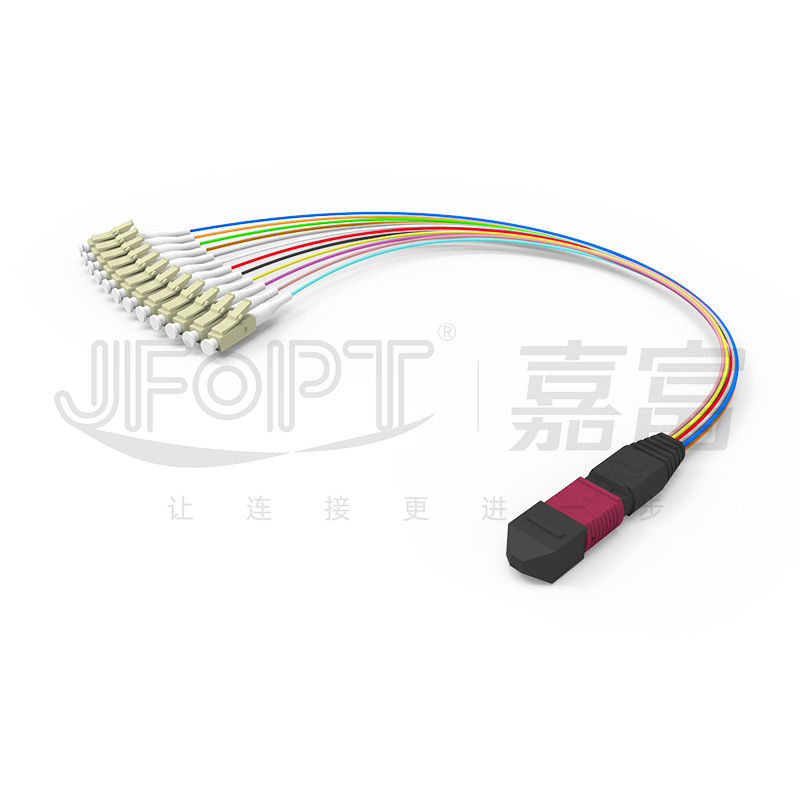

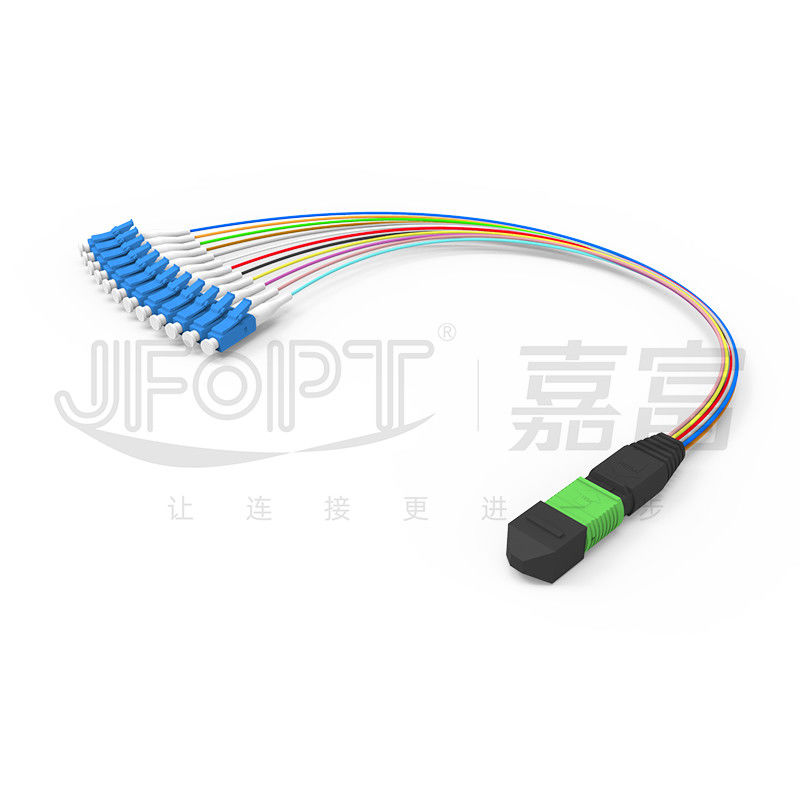

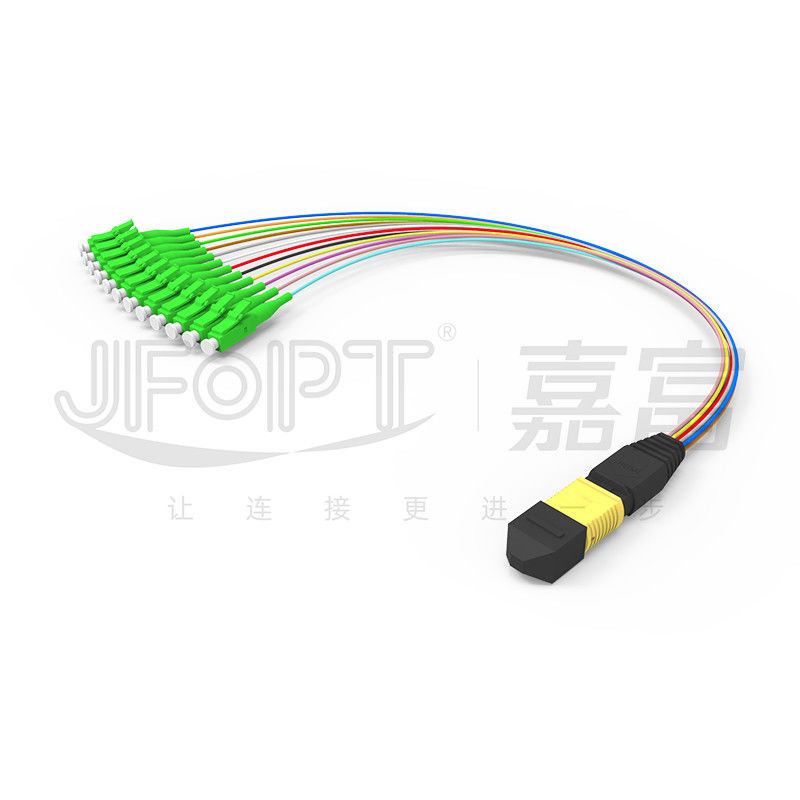

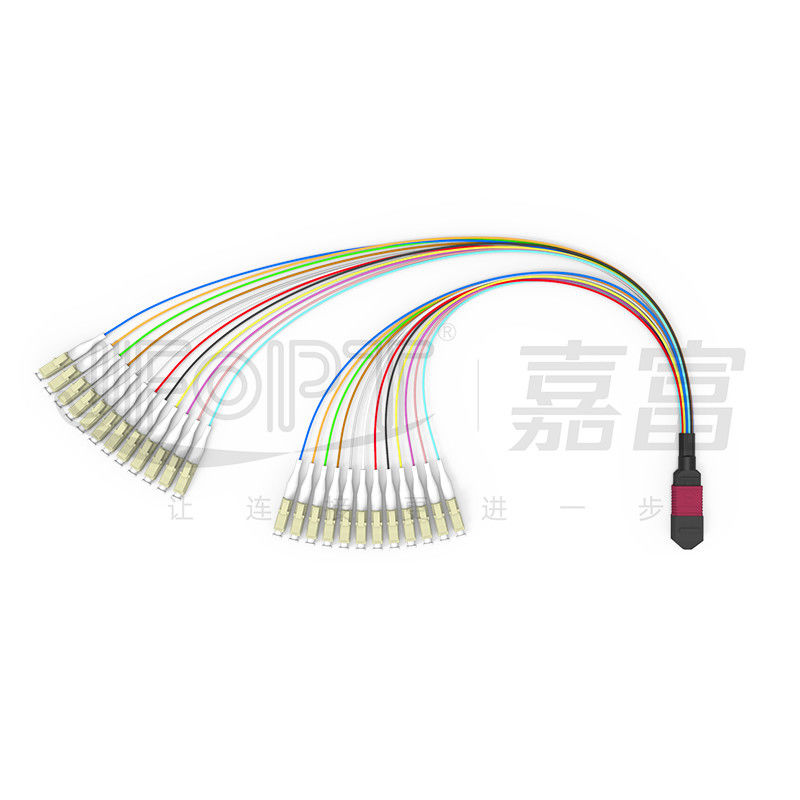

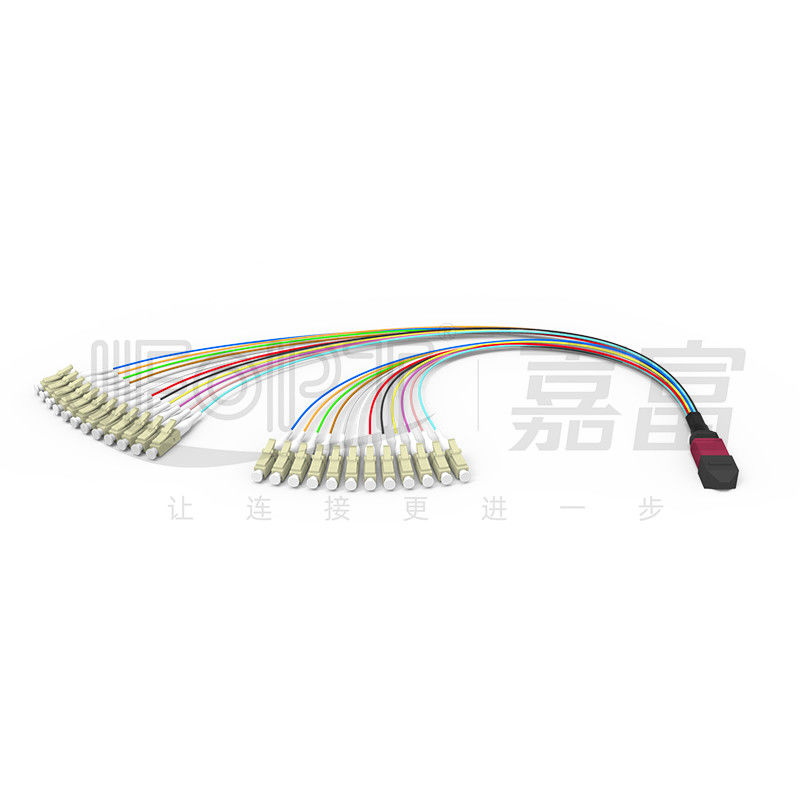

To complement the MPO modular cassette, JFOPT has developed and produced MPO-LC/SC breakout cable. This kind of patch cable is typically made from bare ribbon fiber with 0.9mm loose tube added after branching. This design not only protects the bare fibers but also maintains a small outer diameter, making it suitable for the limited space inside the module box. The LC/SC ends can be equipped with duplex clips for easy insertion and removal. Our MPO connectors are compatible with various brands of MPO adapters and connectors, as well as MTP adapters.
♦ Features
|
① Various types of fibers can be ordered
|
②Small length and diameter, suitable for small space inside module boxes
|
|
|
|
③Both single-mode and multimode fibers with performance bend-insensitivity to reduce loss
|
④ Multiple colors are available for MPO and LC connectors for identifictaion
|
|
|
|
⑤100% factory termination and testing ensure reliable and guaranteed quality
|
- |
|
-
|
♦ Applications
1.Data center cabling
2.40G/100G optical communication systems
3.Fiber communication systems, cable television networks, telecom networks
4.Local area networks (LANs), wide area networks (WANs), FTTx
♦ MPO Connector Parameters
|
Connector Type |
Insertion Loss |
Return Loss |
|||
|
Typical |
Maximum |
||||
|
MPO Connector |
SM Standard |
0.2dB |
0.75dB |
APC≥60dB |
|
|
SM Low Loss |
0.1dB |
0.35dB |
|||
|
MM Standard |
0.2dB |
0.6dB |
PC≥25dB |
||
|
MM Low Loss |
0.1dB |
0.35dB |
|||
|
Male/Female |
Male: with Pin, Female: without Pin |
||||
♦ LC Connector Parameters
|
Connector Characteristics |
Connector Type |
LC |
|||
|
End Face Type |
Single-mode: UPC/APC; Multimode: UPC |
||||
|
Ferrule Type |
Grade-A zirconia ceramic ferrule |
||||
|
Connector Housing Color |
Blue/Green/Beige/Aqua/Violet/Lime |
||||
|
Insertion Loss |
≤0.3dB/≤0.2dB/≤0.15dB |
||||
|
Return Loss |
Single-mode: UPC≥50dB; APC≥60dB; Multimode: ≥25dB |
||||
|
Repeatability |
≤0.2dB |
||||
|
Interchangeability |
≤0.2dB |
||||
♦3D Geometric Parameters
|
Items |
Max |
Min |
||
|
Radius of curvature (mm) |
X |
2000 |
-10000 |
|
|
Y |
- |
5 |
||
|
Angle (°) |
X |
0.15 |
-0.15 |
|
|
Y(APC) |
8.2 |
7.8 |
||
|
Y(PC) |
0.2 |
-0.2 |
||
|
Radius of curvature of optical core (mm) |
- |
1 |
||
|
Fiber height (nm) |
3500 |
1000 |
||
|
Height difference of adjacent fiber (nm) |
500 |
N/A |
||
|
Maximum negative coplanar (nm) |
300 |
N/A |
||
♦ Connector Housing Color Selection
|
MPO connector |
||||
|
Single mode |
Green |
Yellow |
||
|
Reference color number PANTONE 2270C |
Reference color number PANTONE 100C |
|||
|
|
|
|||
|
Multimode |
Beige |
Aqua |
||
|
Reference color number PANTONE 7534C |
Reference color number PANTONE 2226C |
|||
|
|
|
|||
|
Violet |
- |
|||
|
Reference color number PANTONE 7641C |
||||
|
|
||||
♦ Product Packaging
|
|
|
|
Thickened anti-static bag |
Thickened carton |
♦ Factory Strength
|
Specialization: With over 20 years of experience in MPO and conventional fiber optic jumper production, JFOPT has a professional R&D team and production equipment dedicated to meeting various installation needs. Our products have passed multiple international certifications and tests. |
|
||||
|
Manufacturing Capability: JFOPT has multiple production lines for MPO and conventional connectors, as well as cable and branching equipment, ensuring fast delivery. |
|
||||
|
Quality Control: JFOPT has strict quality control measures in place, including factory end-face inspection and 100% testing, using professional testing equipment to ensure stable transmission performance. |
|
||||
|
Standardization: JFOPT can provide various customization services for connector types, cable types, outer diameters, color, wire sequences, packaging, and more, and also support custom production based on customer-provided designs or samples, ensuring consistency and performance stability to meet different wiring requirements. |
|
||||
|
Technological Innovation: JFOPT focuses on technological innovation and has a professional R&D team dedicated to the development and production of various high-performance fiber optic jumpers, meeting the changing market demands. |
|
||||
|
Service and Technical Support: JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and after-sales maintenance, to meet customer needs and ensure customer satisfaction. |
|
||||
♦ Frequent Q&A
1.What should be considered when customizing MPO branching jumpers?
It is important to consider the length, branch length, branch diameter, cable material, fiber type and count, Male or Female connectors, insert loss standards, color, labeling, and other customization requirements.
2.How do we ensure the stability of our fiber jumpers?
JFOPT's fiber jumpers undergo 100% insertion loss testing and end-face inspection, ensuring stable performance.
3.What is our delivery time?
For standard products, our delivery time is within 5 working days, ensuring prompt shipment.
4.What other MPO-related products do we offer?
We also manufacture MPO loopbacks, MPO attenuators, MPO Male-Female adapters, MT jumpers, and other MPO-related products.
