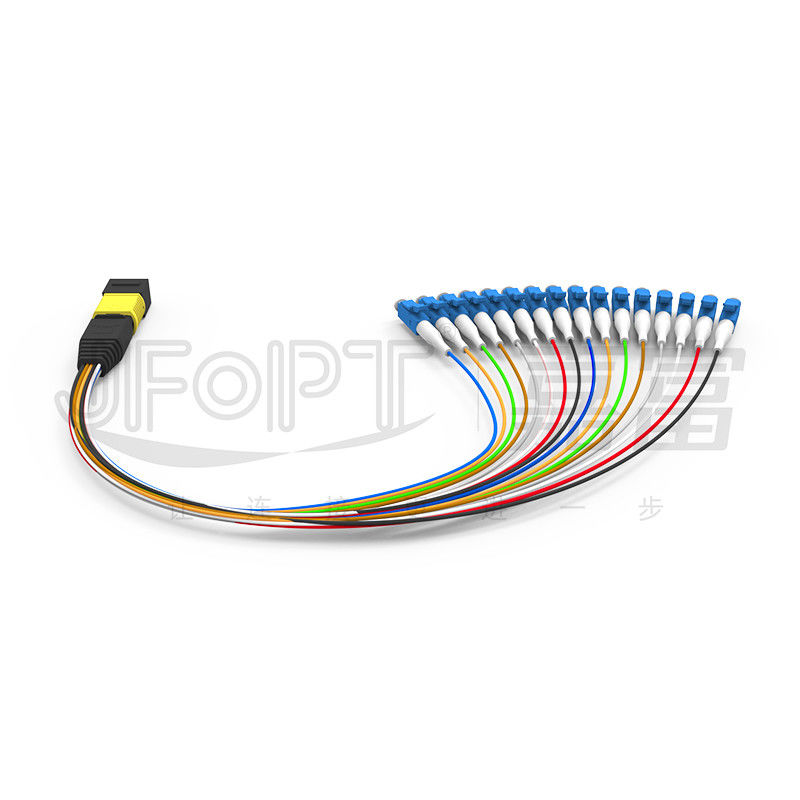

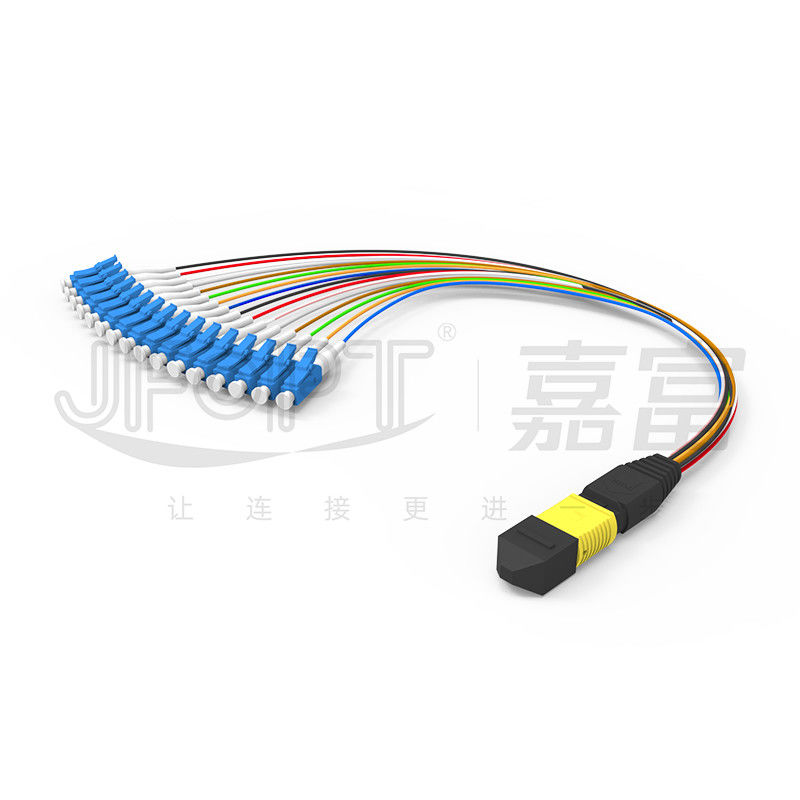

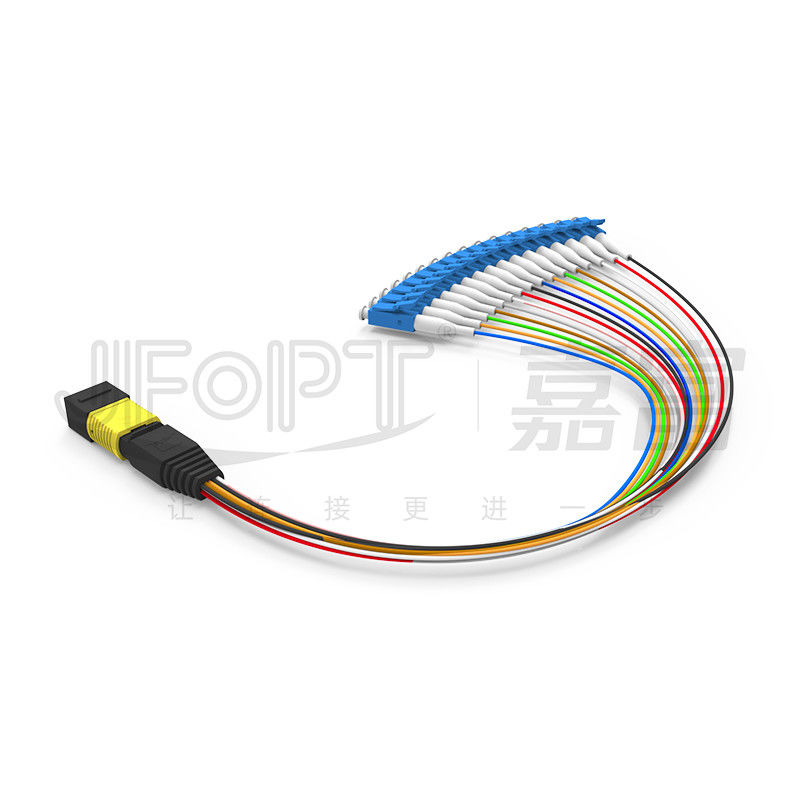

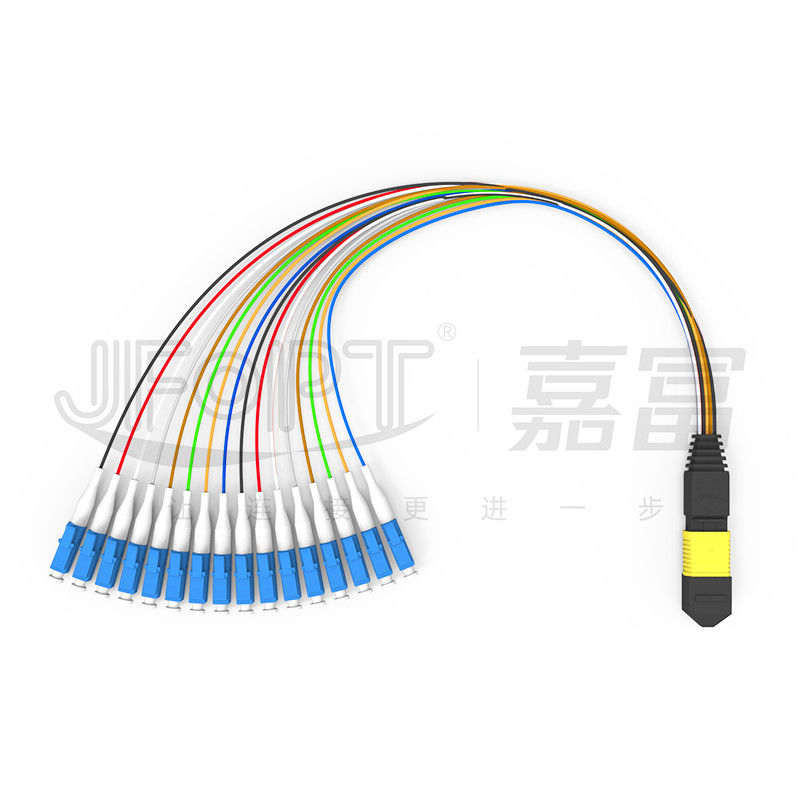

MPO-LC Patch Cord 16 Cores Single-mode Low Loss G657A1/G657A2 Type A Module Box
The 16-core MPO-LC module box optical jumper consists of 16-core MPO connectors on both ends and LC simplex connectors. The fiber optic cable is made of bare fiber threaded through a 0.9mm tube. This type of jumper is primarily used in MPO/MTP module boxes, offering advantages such as shorter length, smaller size, and flexible bending. JFOPT defaults to using G657A1/A2 bend-resistant fiber for single-mode jumpers and OM3 or higher bend-insensitive fiber for multimode jumpers. Our MPO processing equipment is imported and each connector undergoes multiple tests. Additionally, we have multiple MPO production lines, enabling us to handle large-volume orders.
♦ Features
|
① 16-core MPO ferrules and parts
|
② Designed for use in module boxes
|
|
|
|
③ Minimum bending radius of 7.5mm
|
④ Compatible with JFOPT MPO distribution boxes and module boxes
|
|
|
♦ Applications
1.Data center cabling.
2.40G/100G optical communication systems.
3.Fiber communication systems, cable television networks, telecom networks.
4.Local area networks (LANs), wide area networks (WANs), FTTx.
♦ MPO Connector Parameters
|
Connector Type |
Insertion Loss |
Return Loss |
|||
|
Typical |
Maximum |
||||
|
MPO Connector |
SM Standard |
0.2dB |
0.75dB |
APC≥60dB |
|
|
SM Low Loss |
0.1dB |
0.35dB |
|||
|
MM Standard |
0.2dB |
0.6dB |
PC≥25dB |
||
|
MM Low Loss |
0.1dB |
0.35dB |
|||
|
Male/Female |
Male: with Pin, Female: without Pin |
||||
♦ LC Connector Parameters
|
Connector Characteristics |
Connector Type |
LC |
|||
|
End Face Type |
Single-mode: UPC/APC; Multimode: UPC |
||||
|
Ferrule Type |
Grade-A zirconia ceramic ferrule |
||||
|
Connector Housing Color |
Blue/Green/Beige/Aqua/Violet/Lime |
||||
|
Insertion Loss |
≤0.3dB/≤0.2dB/≤0.15dB |
||||
|
Return Loss |
Single-mode: UPC≥50dB; APC≥60dB; Multimode: ≥25dB |
||||
|
Repeatability |
≤0.2dB |
||||
|
Interchangeability |
≤0.2dB |
||||
♦ 3D Geometric Parameters
|
Items |
Max |
Min |
||
|
Radius of curvature (mm) |
X |
2000 |
-10000 |
|
|
Y |
- |
5 |
||
|
Angle (°) |
X |
0.15 |
-0.15 |
|
|
Y(APC) |
8.2 |
7.8 |
||
|
Y(PC) |
0.2 |
-0.2 |
||
|
Radius of curvature of optical core (mm) |
- |
1 |
||
|
Fiber height (nm) |
3500 |
1000 |
||
|
Height difference of adjacent fiber (nm) |
500 |
N/A |
||
|
Maximum negative coplanar (nm) |
300 |
N/A |
||
♦ Connector Housing Color Selection
|
MPO connector |
||||
|
SM |
Green |
Yellow |
||
|
Reference color number PANTONE 2270C |
Reference color number PANTONE 100C |
|||
|
|
|
|||
|
MM |
Beige |
Aqua |
||
|
Reference color number PANTONE 7534C |
Reference color number PANTONE 2226C |
|||
|
|
|
|||
|
Violet |
- |
|||
|
Reference color number PANTONE 7641C |
||||
|
|
||||
♦ Product Packaging
|
|
|
|
Thickened anti-static bag |
Thickened carton |
♦ Factory Strength
|
Specialization: JFOPT has a professional R&D team and production equipment, with over 20 years of focus on MPO and conventional fiber jumpers, and has obtained various international product certifications, dedicated to meeting various wiring needs. |
|
||||
|
Manufacturing Capability: JFOPT has multiple production lines for MPO and conventional connectors, supported by cable and fanout kit production equipment, enabling fast delivery. |
|
||||
|
Quality Control: JFOPT implements strict quality control, with various professional testing equipment, factory terminations, and 100% testing to ensure stable transmission performance. |
|
||||
|
Standardization: JFOPT offers various customization services, including connector models, cable types, outer diameters, colors, polarity, and packaging. It also supports customized production with customer drawings and samples, ensuring product consistency and performance stability to meet various wiring needs. |
|
||||
|
Technological Innovation: JFOPT emphasizes technological innovation and has a professional R&D team dedicated to the development and production of various types of fiber jumpers with high performance and functionality, meeting the ever-changing market demands. |
|
||||
|
Service and Technical Support: JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and after-sales repairs, to meet customer needs and ensure customer satisfaction. |
|
||||
♦ Frequent Q&A
1.What should be considered when customizing MPO branching jumpers?
It is important to consider the length, branch length, branch diameter, cable material, fiber type and count, Male or Female connectors, insert loss standards, color, labeling, and other customization requirements.
2.How do we ensure the stability of our fiber jumpers?
JFOPT's fiber jumpers undergo 100% insertion loss testing and end-face inspection, ensuring stable performance.
3.What is our delivery time?
For standard products, our delivery time is within 5 working days, ensuring prompt shipment.
4.What other MPO-related products do we offer?
We also manufacture MPO loopbacks, MPO attenuators, MPO Male-Female adapters, MT jumpers, and other MPO-related products.
