MPO/APC-SC 3.0 G657A1/A2 Single Mode (SM) Mini Round Cable 3.0mm 24-Core MPO Breakout Cable

MPO/APC-SC 3.0 G657A1/A2 Single Mode (SM) Mini Round Cable 3.0mm 24-Core MPO Breakout Cable

3.0mm Branch 24 Core MPO Breakout Cable

G657A1 G657A2 single mode breakout cable

APC-SC single mode breakout cable

Place of Origin:

CHINA

Brand Name:

JFOPT

Certification:

Product : CE / UL / ROHS / REACH , Company : ISO9001 / ISO14001

Model Number:

MPO/A-SC 3.0mm G657A 24C 3.0mm

Contact Us

Request A Quote
Product Details
Connector Type:
MPO/APC-SC
Main Structure:
3.0mm Main Trunk + 3.0mm Riser Branch With Pass-through Tubing
Branching Process:
Gel-filled
Number Of Fibers:
24 Fibers
Fiber Type:
G657A1/G657A2
Branch Diameter:
3.0mm
Branch Length:
Within 50cm
Cable Jacket:
Yellow
Payment & Shipping Terms
Minimum Order Quantity
1pc
Price
Based on product length/model/loss and other parameters
Delivery Time
1-5 days
Payment Terms
T/T /Paypal/ Trade Assurance Order via Alibaba
Supply Ability
3000 terminations per day
RELATED PRODUCTS
Contact Us
86-755-83570641
Contact Now
Product Description

MPO/APC-SC 3.0 G657A1/A2 Single Mode (SM) Mini Round Cable 3.0mm 24-Core MPO Breakout Cable



This MPO-SC jumper features a 3.0mm outer diameter for both the trunk and the branches. There is a fanout kit between the trunk cable and the branches. JFOPT has developed various types of process branchers to ensure a stable structure for different trunk cables and branch types. The 24-core branches can be equipped with either colored markers or label stickers for channel identification. The SC end can also be configured as a dual SC connector based on channel requirements. Additionally, the MPO branch jumper can be customized with specific trunk and branch lengths, connector types on both ends, loss etc..



♦ Features

①Customizable marker rings on branch tubing for easy identification of wiring
②24 fibers in a single MPO connector, providing high density and space-saving solution

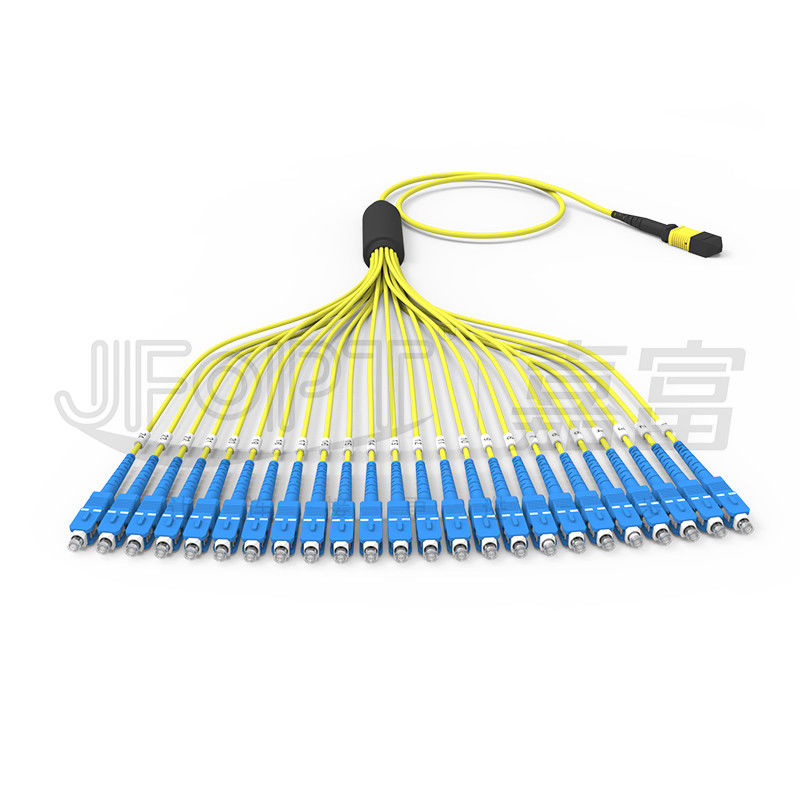

MPO/APC-SC 3.0 G657A1/A2 Single Mode (SM) Mini Round Cable 3.0mm 24-Core MPO Breakout Cable 0

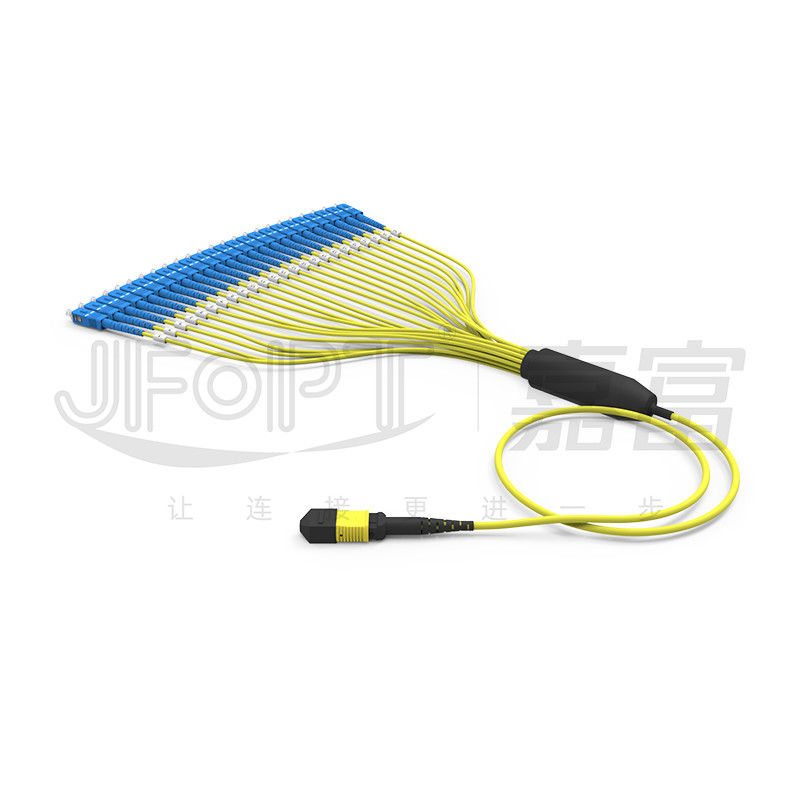

MPO/APC-SC 3.0 G657A1/A2 Single Mode (SM) Mini Round Cable 3.0mm 24-Core MPO Breakout Cable 1
③Options for equal-length or unequal-length branches on the LC end
④ 100% factory termination and testing to ensure excellent transmission performance

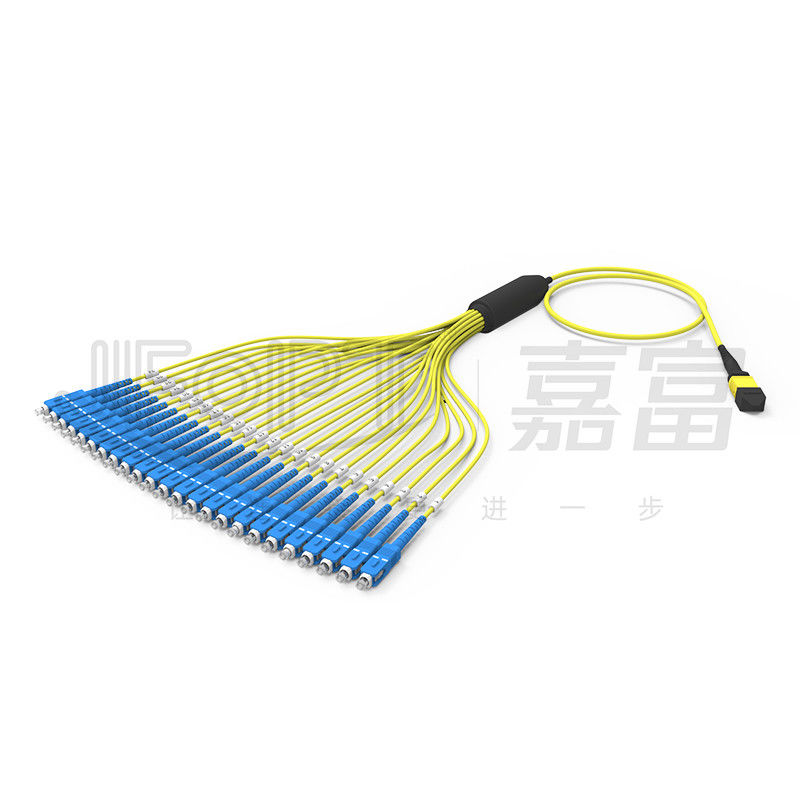

MPO/APC-SC 3.0 G657A1/A2 Single Mode (SM) Mini Round Cable 3.0mm 24-Core MPO Breakout Cable 2

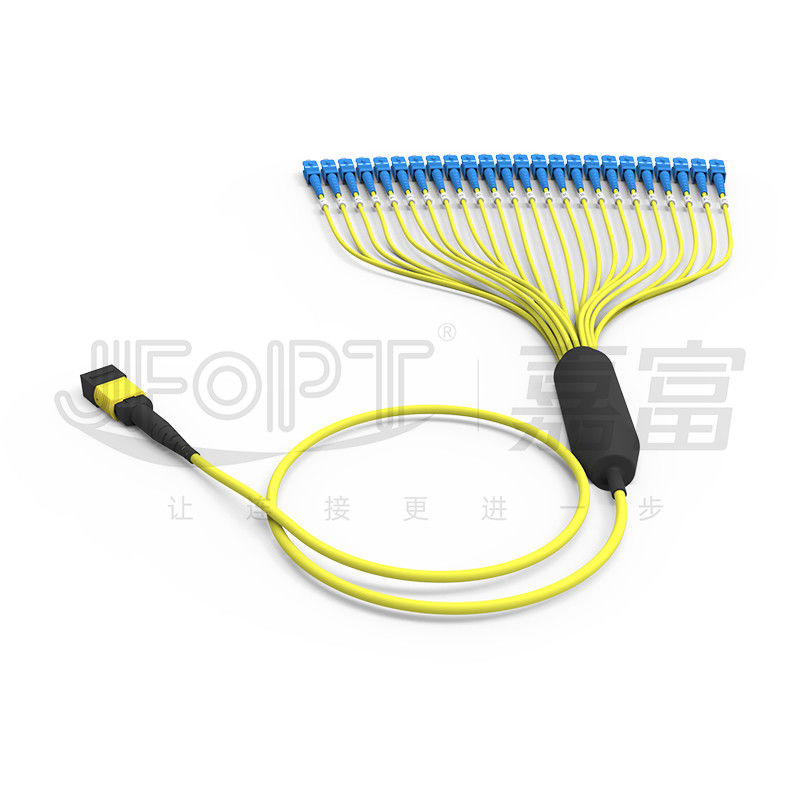

MPO/APC-SC 3.0 G657A1/A2 Single Mode (SM) Mini Round Cable 3.0mm 24-Core MPO Breakout Cable 3



♦ Applications

1.Data center network cabling.
2.40G/100G optical communication systems, QSFP optical modules.
3.Fiber optic communication systems, cable TV networks, telecom networks.
4.Local area networks (LANs), wide area networks (WANs), FTTx.



♦ MPO Connector Parameters

Connector Type

Insertion Loss

Return Loss

Typical

Maximum

MPO Connector

SM Standard

0.2dB

0.75dB

APC≥60dB
PC≥50dB

SM Low Loss

0.1dB

0.35dB

MM Standard

0.2dB

0.6dB

PC≥25dB

MM Low Loss

0.1dB

0.35dB

Male/Female

Male: with Pin, Female: without Pin



♦ SC Connector Parameters

Connector Characteristics

Connector Type

SC

End Face Type

Single-mode: UPC/APC; Multimode: UPC

Ferrule Type

Grade-A zirconia ceramic ferrule

Connector Housing Color

Blue/Green/Beige/Aqua/Violet/Lime

Insertion Loss

≤0.3dB/≤0.2dB/≤0.15dB

Return Loss

Single-mode: UPC≥50dB; APC≥60dB; Multimode: ≥25dB

Repeatability

≤0.2dB

Interchangeability

≤0.2dB



♦ 3D Geometric Parameters (Optional)

Items

Max

Min

Radius of curvature (mm)

X

2000

-10000

Y

-

5

Angle (°)

X

0.15

-0.15

Y(APC)

8.2

7.8

Y(PC)

0.2

-0.2

Radius of curvature of optical core (mm)

-

1

Fiber height (nm)

3500

1000

Height difference of adjacent fiber (nm)

500

N/A

Maximum negative coplanar (nm)

300

N/A



Cable Parameters

Project

Parameters

Fiber Type

Optional : G652D / G657A1 / OM1 / OM2 / OM3 / OM4 / OM5

Fiber Count

Optional : 8/12/16/24

Strength Member

Aramid yarn

Outer Jacket Material

Optional : LSZH / PVC / TPU

Outer Jacket Diameter

3.0mm

Outer Jacket Color

Yellow / Orange / Aqua / Magenta / Custom

Tensile Strength (Long-term)

80N

Tensile Strength (Short-term)

150N

Crush Resistance (Long-term)

100N/cm

Crush Resistance (Short-term)

500N/cm

Minimum Bending Radius (Dynamic)

20D

Minimum Bending Radius (Static)

10D

Operating Temperature

-20~60℃

Storage Temperature

-20~60℃

Fire Rating

Optional : OFN / OFNR / OFNP



♦ Connector Housing Color Selection

MPO connector

SM

Green

Yellow

Reference color number PANTONE 2270C

Reference color number PANTONE 100C

MPO/APC-SC 3.0 G657A1/A2 Single Mode (SM) Mini Round Cable 3.0mm 24-Core MPO Breakout Cable 4

MPO/APC-SC 3.0 G657A1/A2 Single Mode (SM) Mini Round Cable 3.0mm 24-Core MPO Breakout Cable 5

MM

Beige

Aqua

Reference color number PANTONE 7534C

Reference color number PANTONE 2226C

MPO/APC-SC 3.0 G657A1/A2 Single Mode (SM) Mini Round Cable 3.0mm 24-Core MPO Breakout Cable 6

MPO/APC-SC 3.0 G657A1/A2 Single Mode (SM) Mini Round Cable 3.0mm 24-Core MPO Breakout Cable 7

Violet

-

Reference color number PANTONE 7641C

MPO/APC-SC 3.0 G657A1/A2 Single Mode (SM) Mini Round Cable 3.0mm 24-Core MPO Breakout Cable 8



♦ Fanout Options

MPO/APC-SC 3.0 G657A1/A2 Single Mode (SM) Mini Round Cable 3.0mm 24-Core MPO Breakout Cable 9

Main Cable Structure

MPO/APC-SC 3.0 G657A1/A2 Single Mode (SM) Mini Round Cable 3.0mm 24-Core MPO Breakout Cable 10

MPO/APC-SC 3.0 G657A1/A2 Single Mode (SM) Mini Round Cable 3.0mm 24-Core MPO Breakout Cable 11

Fanout with Equal Lengths

Fanout with Unequal Lengths

MPO/APC-SC 3.0 G657A1/A2 Single Mode (SM) Mini Round Cable 3.0mm 24-Core MPO Breakout Cable 12

Branching of fber with 0.9mm loos tube

MPO/APC-SC 3.0 G657A1/A2 Single Mode (SM) Mini Round Cable 3.0mm 24-Core MPO Breakout Cable 13

Branching of fber with 2.0/3.0mm loos tube



♦ Polarity Selection

MPO/APC-SC 3.0 G657A1/A2 Single Mode (SM) Mini Round Cable 3.0mm 24-Core MPO Breakout Cable 14



♦ Product Packaging

MPO/APC-SC 3.0 G657A1/A2 Single Mode (SM) Mini Round Cable 3.0mm 24-Core MPO Breakout Cable 15

MPO/APC-SC 3.0 G657A1/A2 Single Mode (SM) Mini Round Cable 3.0mm 24-Core MPO Breakout Cable 16

Thickened anti-static bag

Thickened carton



♦ Factory Strength

Professionalism:


JFOPT has been focusing on the production of MPO jumpers for over 10 years, with professional expertise and a complete set of top-notch equipment (SUMIX/JRG/OPTOTEST), can produce high-quality and high-performance MPO jumpers.

MPO/APC-SC 3.0 G657A1/A2 Single Mode (SM) Mini Round Cable 3.0mm 24-Core MPO Breakout Cable 17

Manufacturing Capability:


JFOPT has 5 MPO production lines and equipment, allowing for fast and efficient production of a large number of MPO jumpers to meet customer demands.

MPO/APC-SC 3.0 G657A1/A2 Single Mode (SM) Mini Round Cable 3.0mm 24-Core MPO Breakout Cable 18

Quality Control:


JFOPT implements strict quality control measures, including professional quality testing and monitoring at every stage from raw material procurement to production processes. We conduct 100% 3D interference testing, insertion loss testing, and end-face inspection to ensure product quality.

MPO/APC-SC 3.0 G657A1/A2 Single Mode (SM) Mini Round Cable 3.0mm 24-Core MPO Breakout Cable 19

Standard Development:


JFOPT can develop and strictly adhere to MPO jumper production standards according to customer requirements, ensuring product consistency and performance stability.

MPO/APC-SC 3.0 G657A1/A2 Single Mode (SM) Mini Round Cable 3.0mm 24-Core MPO Breakout Cable 20

Technological Innovation:


JFOPT places emphasis on technological innovation and has a professional R&D team continuously developing more advanced and higher-performing MPO jumpers.

MPO/APC-SC 3.0 G657A1/A2 Single Mode (SM) Mini Round Cable 3.0mm 24-Core MPO Breakout Cable 21

Service and Technical Support:


JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and post-sales repairs, to meet customer needs and ensure customer satisfaction.

MPO/APC-SC 3.0 G657A1/A2 Single Mode (SM) Mini Round Cable 3.0mm 24-Core MPO Breakout Cable 22



♦ Frequent Q&A

1.What issues should be considered when customizing MPO jumpers?
Jumper length / Cable material / Fiber type and fiber count / MPO Male or female/ Insertion loss standards / Color requirements / Labels and customization requests.



2.How do we ensure stable parameters for our MPO jumpers?
JFOPT's MPO jumpers undergo 100% 3D interferometer testing and 100% IL&RL testing, ensuring stable parameters.



3.What is our delivery lead time?
We have a monthly production capacity of 30,000+ MPO connectors, ensuring prompt delivery.



4.What other MPO-related products do we offer?
In addition to MPO jumpers, we also produce MPO loopbacks, MPO attenuators, MPO male to female adapters, MT jumpers, and other MPO related products.
