LC/A-LC/A MINI Cable 3.0mm 24core G657A1 Yellow
Contact Us

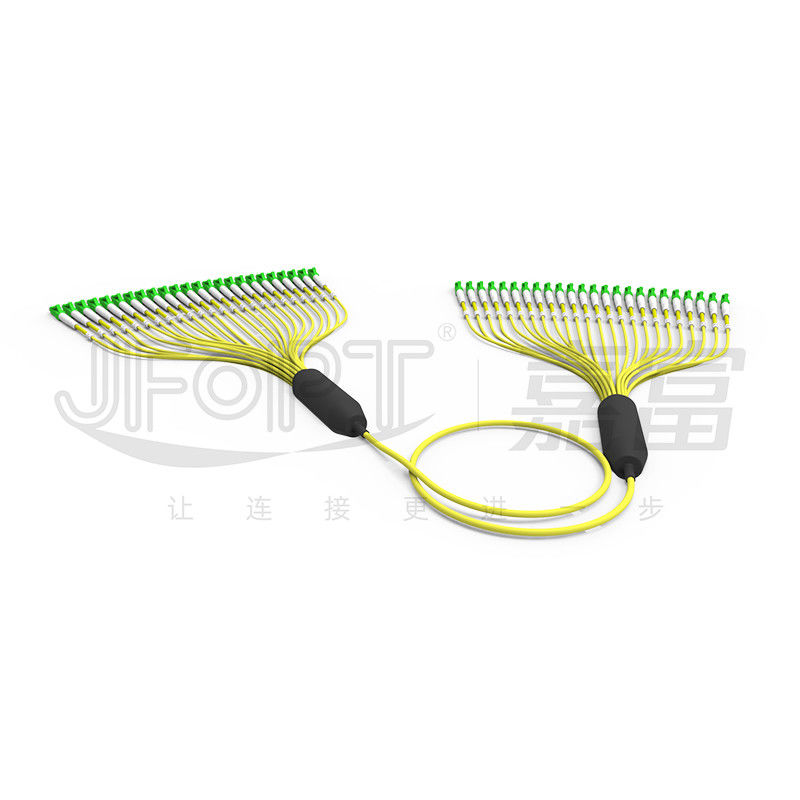

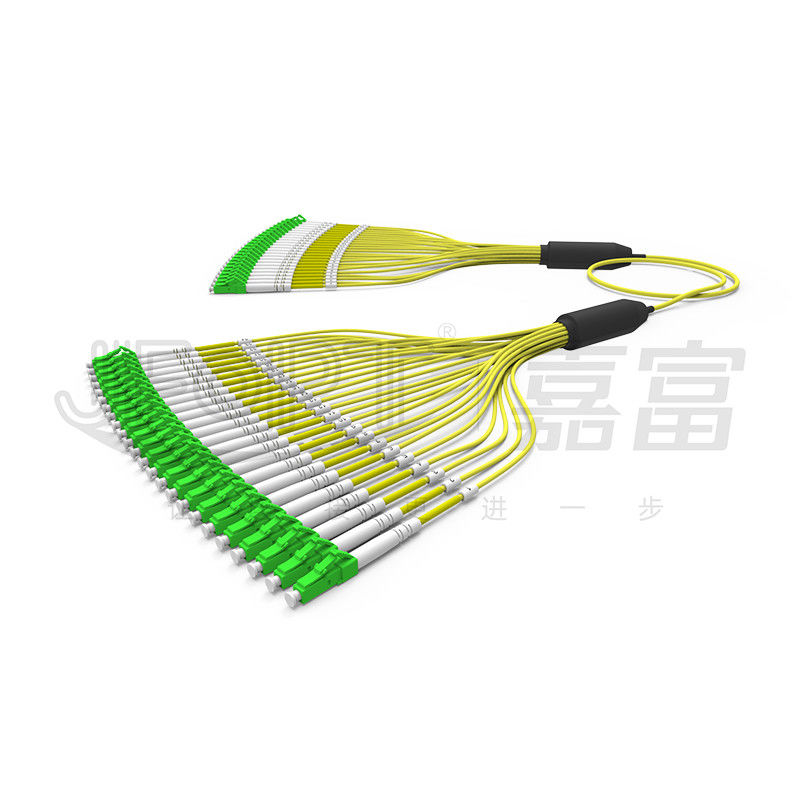

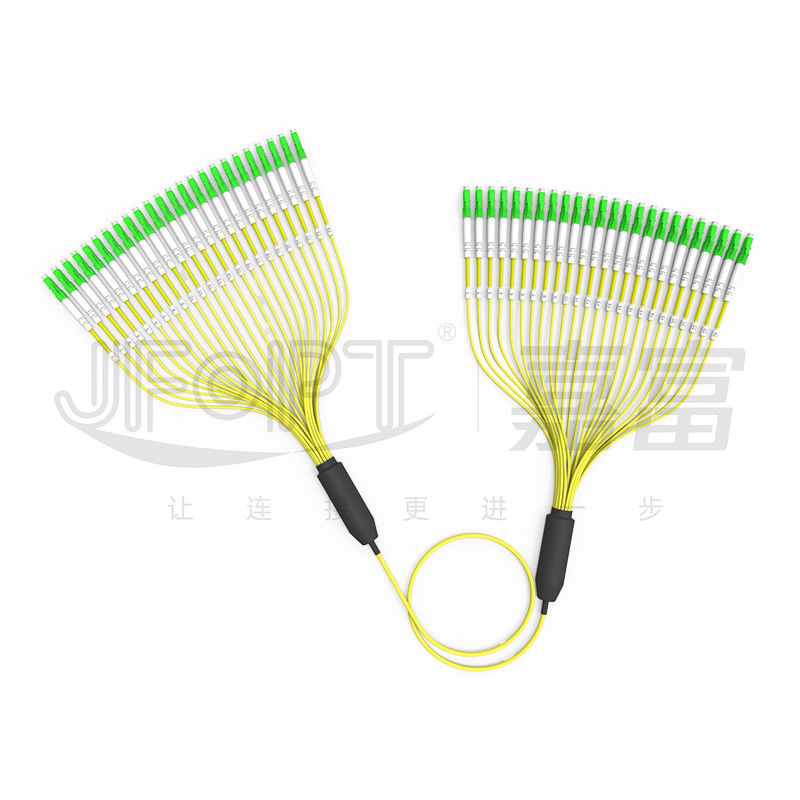

Pre-Terminated Patch Cord 3.0mm Main Cable 24 Cores G657A1 Yellow Outer Sheath LC/APC Branch
The main cable of the LC/APC-LC/APC 3.0mm pre-terminated patch cord uses a single 3.0mm mini cable, which is manufactured and pre-fitted with connectors in JFOPT factory. Typically, a 24-core mini cable consists of two sets of 12-colored tight-buffered fibers, aramid yarn, and a single protective sheath. One set of fibers is distinguished from the other set by dotting. The single-mode bundle patch cords produced by JFOPT default to using bend-insensitive fiber G657A1 to ensure stability in small space deployments. The branches are manufactured using gel-filled technology, significantly improving their lifespan and tensile strength. Customers can choose different branch core counts, lengths, main cable materials, colors, and customize pre-terminated ends of various models such as FC/SC/ST/E2000 to meet the interconnection needs between different devices.
♦ Features
|
① 3.0mm outer diameter, saving installation space |
②Uses G657A1 fiber for improved transmission stability |
|
|
|
|
③ LC connectors available with single-core or dual-core branches |
④Branches are manufactured using gel-filled technology for a more secure connection |
|
|
|
|
⑤ Customizable branch channel sequence |
⑥Optional 2.0mm/3.0mm loose tube/armored loose tube |
|
|
|
♦ Applications
1.Fiber access networks
2.Fiber data transmission
3.Fiber communication systems, cable TV networks, telecommunications networks
4.Local area networks (LANs), wide area networks (WANs), FTTx
♦ Connector Parameters
|
Connector Characteristics |
Connector Type |
LC/SC/FC/ST |
|||
|
Ferrule Type |
Single-mode: UPC/APC; Multi-mode: UPC |
||||
|
Ferrule Material |
A-grade zirconia ceramic |
||||
|
Connector Color |
Blue/Green/Beige/Aqua/Purple |
||||
|
Insertion Loss |
≤0.3dB/≤0.2dB/≤0.15dB |
||||
|
Return Loss |
Single-mode: UPC ≥ 50dB; APC ≥ 60dB; Multi-mode: ≥ 25dB |
||||
|
Repeatability |
≤0.2dB |
||||
|
Interchangeability |
≤0.2dB |
||||
♦ 3D Geometry Parameters (optional)
|
Items |
UPC |
APC |
||||
|
SC / FC / ST |
LC |
SC / FC |
LC |
|||
|
SM |
MM |
SM |
MM |
SM |
SM |
|
|
Radius of curvature (mm) |
10-25 |
7-25 |
5-12 |
|||
|
Apex offset (μm) |
≤50 |
≤30 |
||||
|
Fiber Depressed (nm) |
±100 |
|||||
|
Angle deviation (°) |
0 |
8±0.3 |
||||
|
Bond angle deviation (°) |
0 |
±0.5 |
||||
|
Fiber diameter (μm) |
123-135 |
|||||
♦ Optical Cable Parameters
|
Project |
Parameter |
|||
|
Fiber Type |
Optional G652D / G657A1 / OM1 / OM2 / OM3 / OM4 / OM5 |
|||
|
Fiber Count |
Optional 8/12/16/24 |
|||
|
Strength Member |
Aramid yarn |
|||
|
Outer Jacket Material |
Optional LSZH / PVC / TPU |
|||
|
Outer Jacket Diameter |
3.0mm |
|||
|
Outer Jacket Color |
Customized |
|||
|
Tensile Strength (Long-Term) |
80N |
|||
|
Tensile Strength (Short-Term) |
150N |
|||
|
Crush Resistance (Long-Term) |
100N/cm |
|||
|
Crush Resistance (Short-Term) |
500N/cm |
|||
|
Minimum Bending Radius (Dynamic) |
20D |
|||
|
Minimum Bending Radius (Static) |
10D |
|||
|
Operating Temperature |
-20~60℃ |
|||
|
Storage Temperature |
-20~60℃ |
|||
|
Fire Rating |
Optional OFN / OFNR / OFNP |
|||
♦ Branching Options
|
Main Cable Structure |
|
|
|
|
|
Fanout with equal length |
Fanout with unequal length |
|
|
|
|
Branching of fber with 0.9mm loos tube |
|
|
|
|
|
Branching of fber with 2.0/3.0mm loos tube |
|
|
|
|
♦ Product Packaging
|
|
|
|
Thickened bag packaging |
Thickened cardboard box packaging |
♦ Factory Strength
|
Specialization: JFOPT has accumulated years of experience in the production process of large-core jumpers, ensuring extremely low losses and long lifespan in complex environments. |
|
||||
|
Manufacturing Capability: JFOPT has 5 production lines and equipment, equipped with professional large-diameter multi-core cable cutting machines, ensuring fast, efficient, and neat winding of various large-core cables for quick delivery. |
|
||||
|
Quality Control: JFOPT implements strict quality control measures and addresses any abnormalities commonly found in large-core cables through optimization of raw material quality. The production process of connectors undergoes 100% testing and inspection. |
|
||||
|
Standard Development: JFOPT can customize the color, outer diameter, fiber type and quantity, and jacket structure of jumper cables according to customer requirements. Sample sealing and engineering drawings are used to ensure product technical specifications and consistency across different batch orders. |
|
||||
|
Technological Innovation: JFOPT emphasizes technological innovation and has a professional R&D team dedicated to developing advanced and high-performance fiber jumpers. |
|
||||
|
Service and Technical Support: JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and after-sales maintenance, to meet customer needs and ensure customer satisfaction. |
|
||||
♦ Frequent Q&A
1.What should be considered when customizing standard fiber optic patch cords?
Total length of the patch cord / Branch length / Branch cable diameter / Fiber cable material / Fiber type and number of cores / Color / Labeling and other customization requirements.
2.How do we ensure the stability of our standard fiber optic patch cords?
JFOPT's fiber optic patch cords undergo a process design to ensure that 100% of the connectors pass the insertion loss test and end-face inspection, guaranteeing stable parameters.
3.What is our delivery lead time?
For standard products, our delivery lead time is controlled within 5 working days, ensuring quick shipment.
