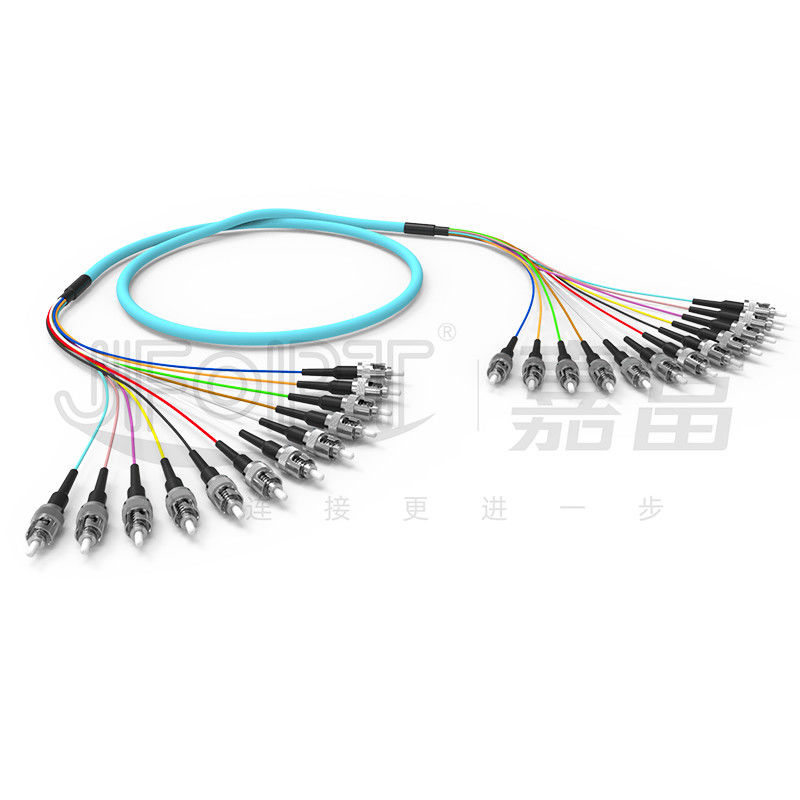

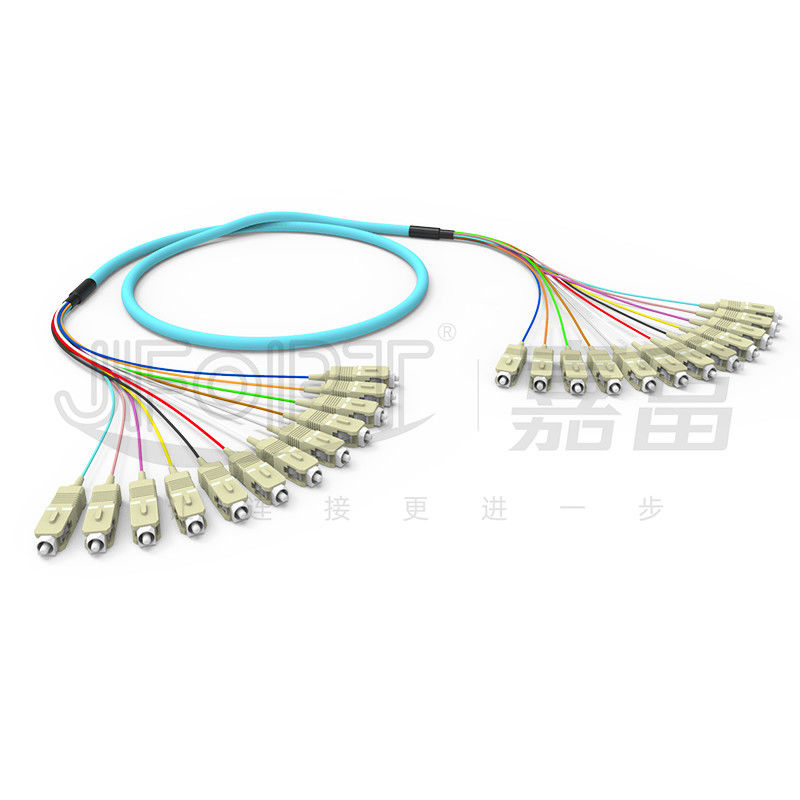

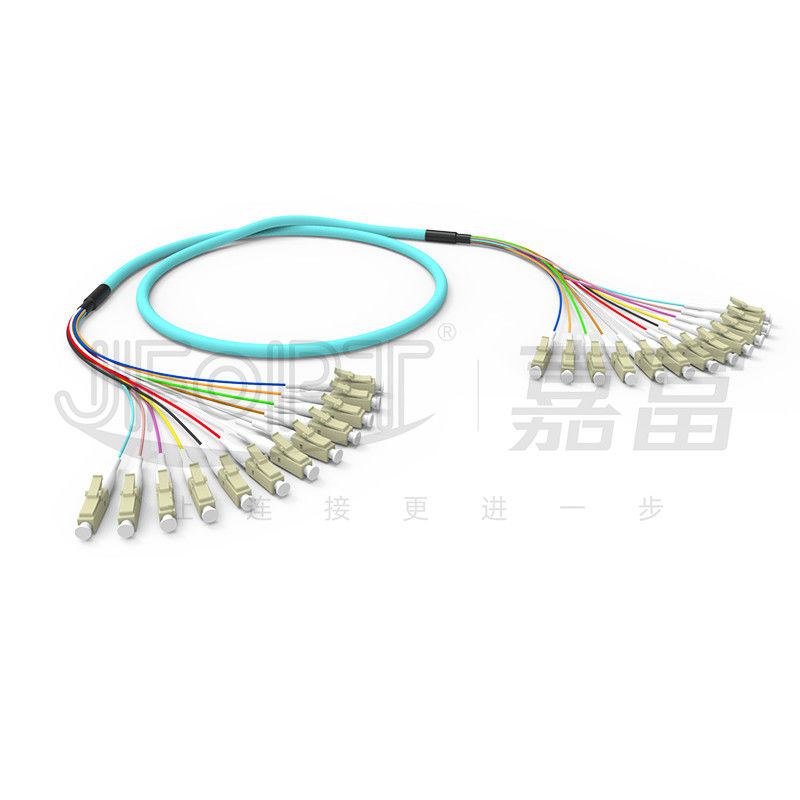

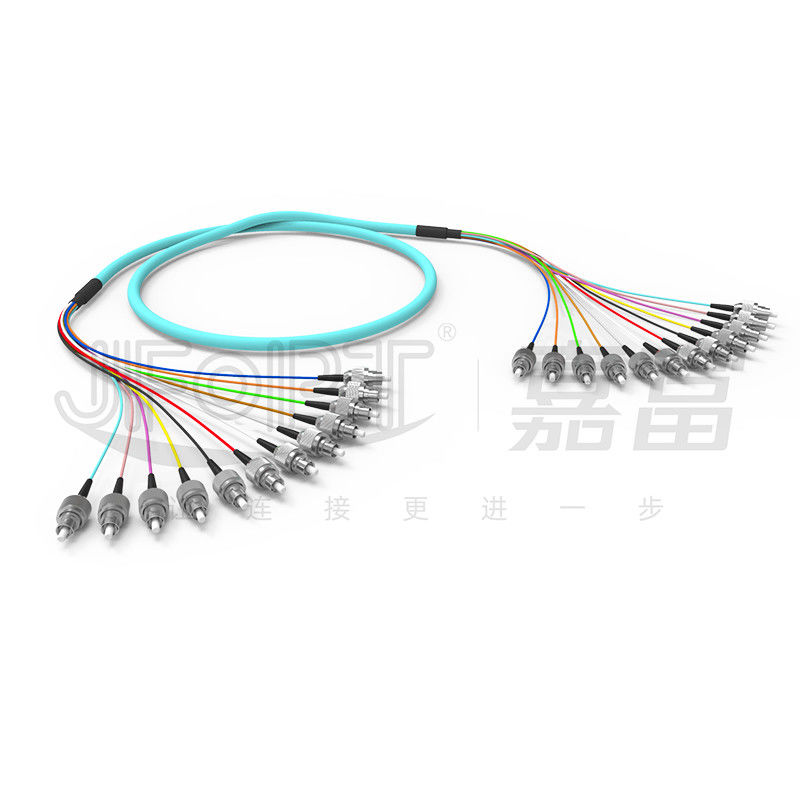

10 Gigabit Multimode Ribbon Branch Patch Cord SC/LC/FC/ST 2-24 Cores OM3/OM4 Aqua LSZH Branch 2.0/3.0mm
JFOPT's ribbon branch patch cords use multiple 0.9mm optical fibers as the core structure, covered with an aramid layer as a strength-enhancing unit. The outermost layer is encased in an LSZH (Low Smoke Zero Halogen) material sheath. This structure effectively protects the internal optical fibers, preventing fiber breakage and bending. Moreover, this structure is easy to peel, facilitating splicing. It offers a cost-effective solution, convenient to use, and is suitable for most wiring projects.
♦ Features
|
①The cable is easy to peel, facilitating convenient splicing |
②The LSZH material outer sheath provides excellent heat resistance and flame retardancy, enhancing |
||||
|
|
|
||||
|
③Incorporates 10 Gigabit multimode optical fiber for faster and more stable transmission |
④The patch cord's interior is covered with high-strength aramid yarn, providing strong tensile performance |
||||
|
|
|
||||
♦ Applications
1.Fiber access networks
2.Fiber data transmission
3.Fiber communication systems, cable TV networks, telecommunication networks
4.Local area networks (LANs), wide area networks (WANs), FTTx.
♦ SC/LC/FC/ST Connector Parameters
|
Connector Type |
Insertion Loss |
Return Loss |
|
|
SC/LC/FC/ST |
SM |
≤0.3dB |
APC≥60dB |
|
MM |
≤0.3dB |
UPC≥25dB |
|
♦ SC/LC/FC/ST 3D Geometry Parameters (optional)
|
Items |
UPC |
APC |
||||
|
SC/FC/ST |
LC |
SC/FC |
LC |
|||
|
SM |
MM |
SM |
MM |
SM |
SM |
|
|
Radius of curvature (mm) |
10-25 |
7-25 |
5-12 |
|||
|
Apex offset (μm) |
≤50 |
≤30 |
||||
|
Fiber Depressed (nm) |
±100 |
|||||
|
Angle deviation (°) |
0 |
8±0.3 |
||||
|
Bond angle deviation (°) |
0 |
±0.5 |
||||
|
Fiber diameter (μm) |
123-135 |
|||||

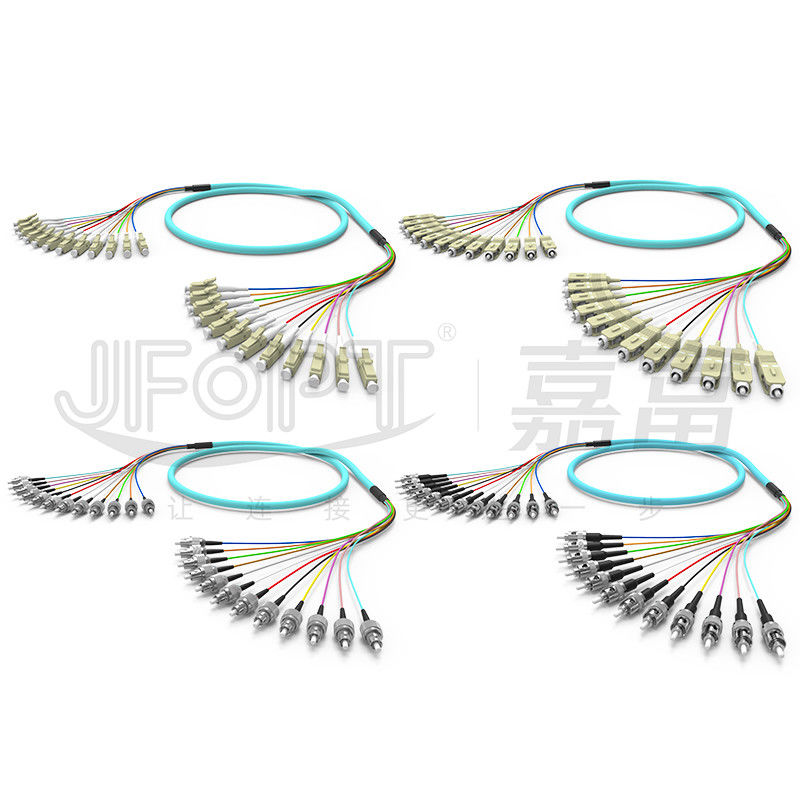

♦ Connector Color Options
|
LC connector |
||||
|
Single mode |
Blue |
Green |
||
|
|
|
|||
|
Multimode |
Beige |
Aqua |
||
|
|
|
|||
|
Heather Violet |
Lime Green |
|||
|
|
|
|||
♦ Optical Cable Parameters
|
Item |
Parameter |
|||
|
Fiber type |
Optional G652D/G657A1/OM1/OM2/OM3/OM4/OM5 |
|||
|
Fiber count |
12 |
|||
|
Reinforcement element |
Aramid yarn |
|||
|
Outer sheath material |
Optional LSZH/PVC/TPU |
|||
|
Outer sheath diameter |
6.8mm |
|||
|
Outer sheath color |
Green/Customized |
|||
|
Max. Tensile Strength (long term) |
300N |
|||
|
Max. Tensile Strength (short term) |
600N |
|||
|
Max. crush resistance (long term) |
200N/cm |
|||
|
Max. crush resistance (short term) |
1000N/cm |
|||
|
Minimum bending radius (dynamic) |
20D |
|||
|
Minimum bending radius (static) |
10D |
|||
|
Operating temperature |
-20~60℃ |
|||
|
Storage temperature |
-20~60℃ |
|||
|
Flame retardance |
Optional OFN/OFNR/OFNP |
|||
♦ Connector Options
|
Duplex product selection |
|||
|
Cable diameter |
Boot type |
Picture |
Drawings |
|
2.0mm |
Standard |
|
|
|
3.0mm |
Standard |
|
|
|
Single product selection |
|||
|
Cable diameter |
Boot type |
Picture |
Drawings |
|
0.9mm |
Standard |
|
|
|
2.0mm |
Standard |
|
|
|
3.0mm |
Standard |
|
|
♦ Branching Options
|
|
|
|
Main Cable Stripping Structure |
|
|
|
|
|
Fanout with equal length |
Fanout with unequal length |
|
|
|
|
Own sub-unit |
|
|
|
|
|
Each branch 2.0/3.0mm |
|
|
|
|
|
Each branch 3.0mm with spiral armored tube |
|
|
|
|
|
Each branch 3.0mm covered by spiral armor tube |
|
♦Product Packaging
|
|
|
|
Thickened self-sealing bag packaging |
Thickened carton packaging |
♦ Factory Strength
|
Specialization: JFOPT has accumulated years of experience in the production of large-core count jumpers, ensuring extremely low loss and long lifespan in complex environments. |
|
||||
|
Manufacturing Capacity: With 5 production lines and equipment, JFOPT is equipped with professional large-diameter multi-core cable cutting machines to quickly, efficiently, and neatly wind various large-core count cables, ensuring fast delivery. |
|
||||
|
Quality Control: JFOPT implements strict quality control. From raw material procurement to all links in the production process, there are professional quality inspections and monitoring, insertion loss test/end face inspection to ensure product quality. |
|
||||
|
Customization Standards: JFOPT can customize the cable color, outer diameter, fiber type and quantity, and jacket structure according to customer requirements. Through sample sealing and engineering drawings, we ensure the technical parameters of the product and maintain consistency across different batch orders. |
|
||||
|
Technological Innovation: JFOPT emphasizes technological innovation and has a professional R&D team constantly developing more advanced and higher-performance fiber optic jumpers. |
|
||||
|
Service and Technical Support: JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and after-sales maintenance, to meet customer needs and ensure customer satisfaction. |
|
||||
