LC-LC water Blocking Branch 12Core LSOH
Contact Us

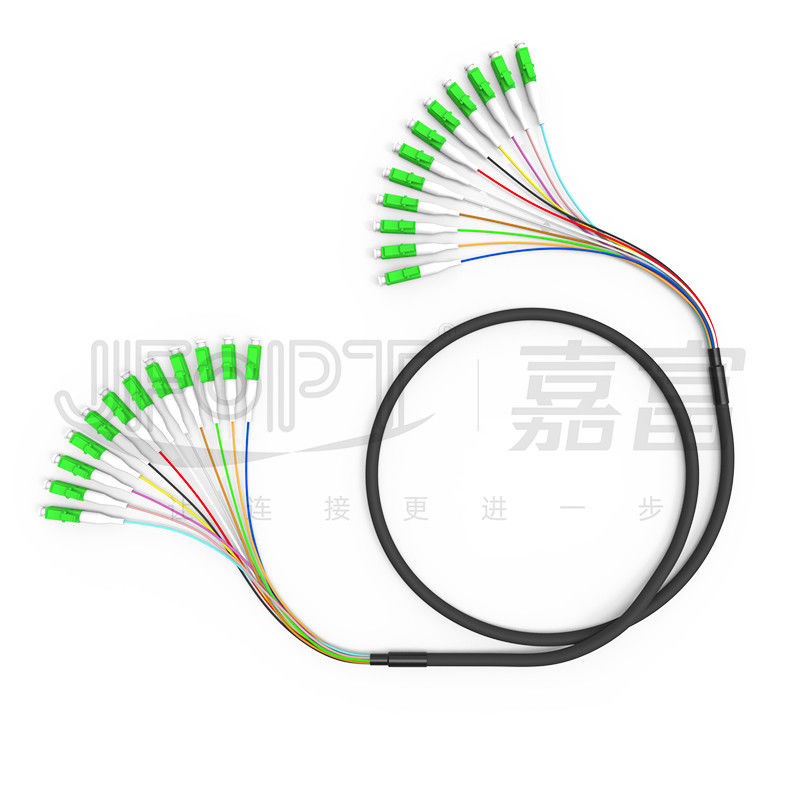

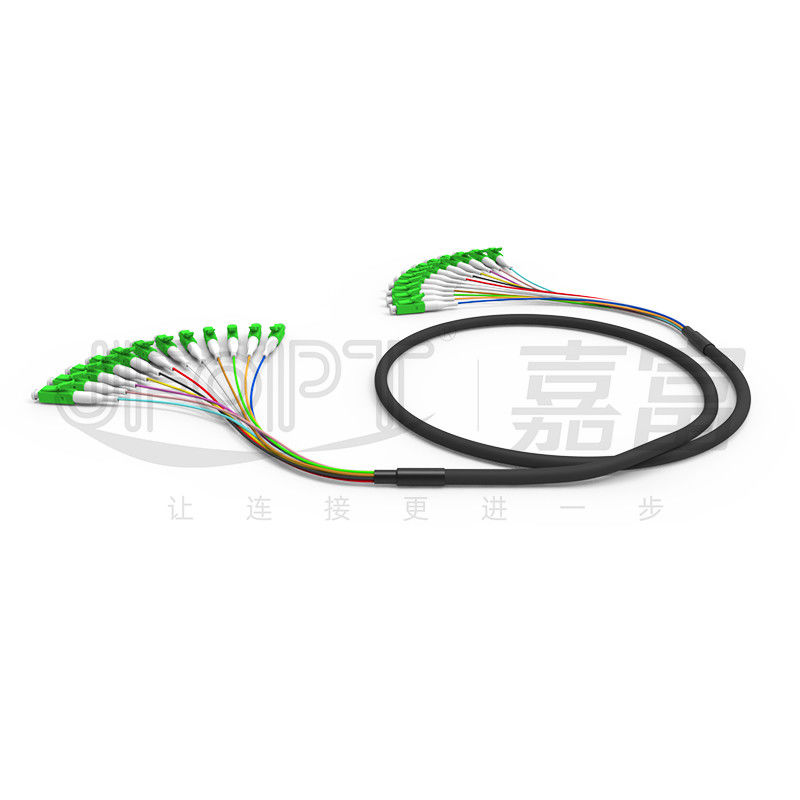

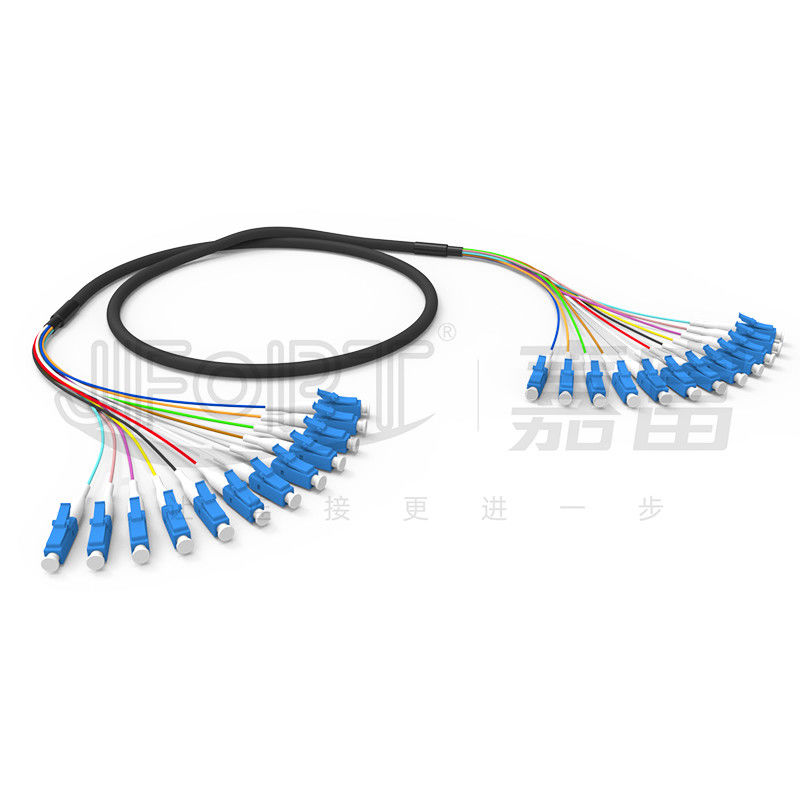

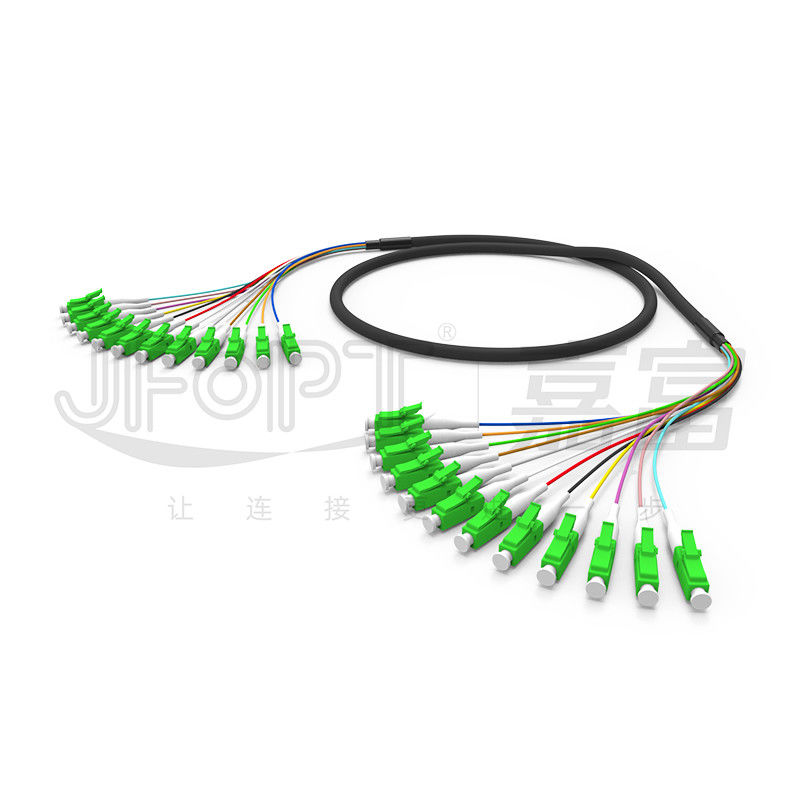

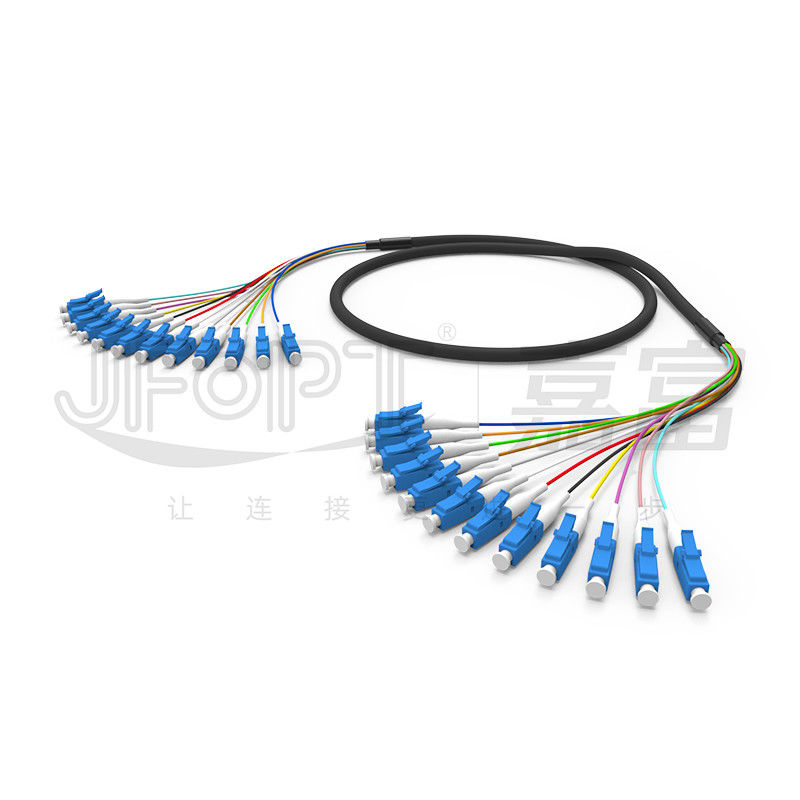

LC-LC Indoor/Outdoor Ribbon Fiber Optic Patch Cord Single Mode 12 Core Water-Blocked Aramid Yarn Black LSZH
The indoor/outdoor ribbon fiber optic patch cord utilizes a versatile ribbon fiber cable suitable for both indoor and outdoor use. It offers various connectors such as LC/SC/FC/ST. The fiber cable is water-resistant, featuring a black LSZH (Low Smoke Zero Halogen) sheath that provides protection against UV radiation. This makes it suitable for installation in environments where indoor and outdoor connections are required. The connectors exhibit low insertion loss, ensuring the secure and stable transmission of data with a loss as low as 0.3dB.
♦ Features
|
①Optional for LC simplex or duplex configurations |
②Features a brand-new, high-quality ceramic core for stable performance |
||||
|
|
|
||||
|
③Utilizes high-performance fiber cores, resulting in minimal optical loss and stable high-speed transmission |
④Enhanced with water-resistant aramid yarn reinforcement, providing longitudinal tensile strength and corrosion resistance |
||||
|
|
|
||||
♦ Applications
1.Fiber access networks
2.Fiber data transmission
3.Fiber communication systems, cable TV networks, telecommunication networks
4.Local area networks (LANs), wide area networks (WANs), FTTx.
♦ SC/LC/FC/ST Connector Parameters
|
Connector Type |
Insertion Loss |
Return Loss |
|
|
SC/LC/FC/ST |
SM |
≤0.3dB |
APC≥60dB |
|
MM |
≤0.3dB |
UPC≥25dB |
|
♦ SC/LC/FC/ST 3D Geometry Parameters (optional)
|
Items |
UPC |
APC |
||||
|
SC/FC/ST |
LC |
SC/FC |
LC |
|||
|
SM |
MM |
SM |
MM |
SM |
SM |
|
|
Radius of curvature (mm) |
10-25 |
7-25 |
5-12 |
|||
|
Apex offset (μm) |
≤50 |
≤30 |
||||
|
Fiber Depressed (nm) |
±100 |
|||||
|
Angle deviation (°) |
0 |
8±0.3 |
||||
|
Bond angle deviation (°) |
0 |
±0.5 |
||||
|
Fiber diameter (μm) |
123-135 |
|||||
♦ Connector Color Options
|
LC connector |
||||
|
Single mode |
Blue |
Green |
||
|
|
|
|||
|
Multimode |
Beige |
Aqua |
||
|
|
|
|||
|
Heather Violet |
Lime Green |
|||
|
|
|
|||
♦ Optical Cable Parameters
|
Item |
Parameter |
|||
|
Fiber type |
Optional G652D/G657A1/OM1/OM2/OM3/OM4/OM5 |
|||
|
Fiber count |
12 |
|||
|
Reinforcement element |
Aramid yarn |
|||
|
Outer sheath material |
Optional LSZH/PVC/TPU |
|||
|
Outer sheath diameter |
6.8mm |
|||
|
Outer sheath color |
Green/Customized |
|||
|
Max. Tensile Strength (long term) |
300N |
|||
|
Max. Tensile Strength (short term) |
600N |
|||
|
Max. crush resistance (long term) |
200N/cm |
|||
|
Max. crush resistance (short term) |
1000N/cm |
|||
|
Minimum bending radius (dynamic) |
20D |
|||
|
Minimum bending radius (static) |
10D |
|||
|
Operating temperature |
-20~60℃ |
|||
|
Storage temperature |
-20~60℃ |
|||
|
Flame retardance |
Optional OFN/OFNR/OFNP |
|||
♦ Connector Options
|
Duplex product selection |
|||
|
Cable diameter |
Boot type |
Picture |
Drawings |
|
2.0mm |
Standard |
|
|
|
3.0mm |
Standard |
|
|
|
Single product selection |
|||
|
Cable diameter |
Boot type |
Picture |
Drawings |
|
0.9mm |
Standard |
|
|
|
2.0mm |
Standard |
|
|
|
3.0mm |
Standard |
|
|
♦ Branching Options
|
|
|
|
Main Cable Stripping Structure |
|
|
|
|
|
Fanout with equal length |
Fanout with unequal length |
|
|
|
|
Own sub-unit |
|
|
|
|
|
Each branch 2.0/3.0mm |
|
|
|
|
|
Each branch 3.0mm with spiral armored tube |
|
|
|
|
|
Each branch 3.0mm covered by spiral armor tube |
|
♦Product Packaging
|
|
|
|
Thickened self-sealing bag packaging |
Thickened carton packaging |
♦ Factory Strength
|
Specialization: JFOPT has accumulated years of experience in the production of large-core count jumpers, ensuring extremely low loss and long lifespan in complex environments. |
|
||||
|
Manufacturing Capacity: With 5 production lines and equipment, JFOPT is equipped with professional large-diameter multi-core cable cutting machines to quickly, efficiently, and neatly wind various large-core count cables, ensuring fast delivery. |
|
||||
|
Quality Control: JFOPT implements strict quality control. From raw material procurement to all links in the production process, there are professional quality inspections and monitoring, insertion loss test/end face inspection to ensure product quality. |
|
||||
|
Customization Standards: JFOPT can customize the cable color, outer diameter, fiber type and quantity, and jacket structure according to customer requirements. Through sample sealing and engineering drawings, we ensure the technical parameters of the product and maintain consistency across different batch orders. |
|
||||
|
Technological Innovation: JFOPT emphasizes technological innovation and has a professional R&D team constantly developing more advanced and higher-performance fiber optic jumpers. |
|
||||
|
Service and Technical Support: JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and after-sales maintenance, to meet customer needs and ensure customer satisfaction. |
|
||||
