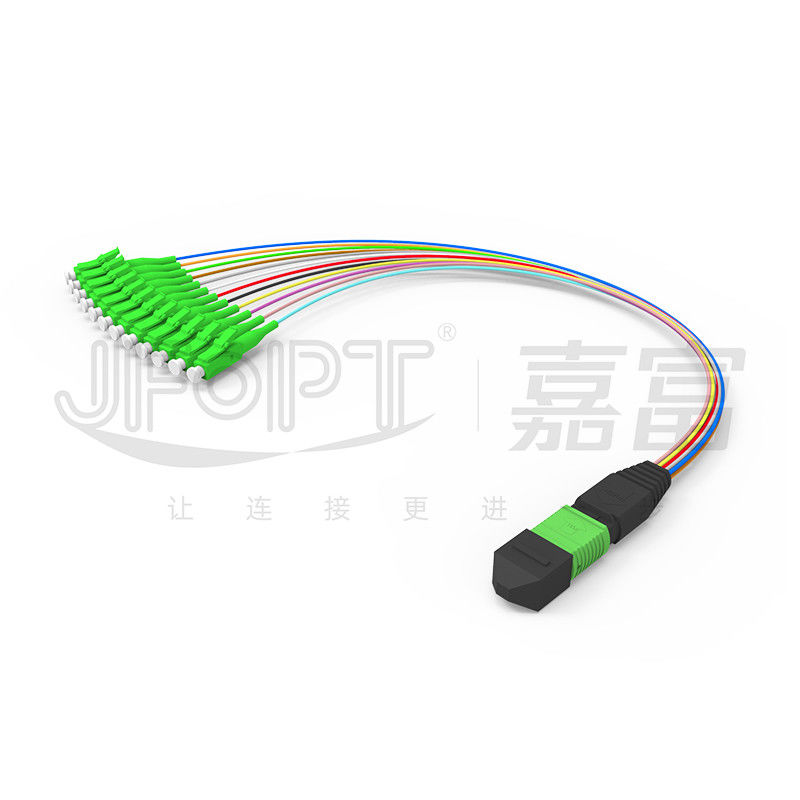

MPO-LC 0.9mm 12Cores Breakout Cable Customized Length SM G657a1 Fiber Multi fiber Module box adapter Patch Cord

MPO-LC 0.9mm 12Cores Breakout Cable Customized Length SM G657a1 Fiber Multi fiber Module box adapter Patch Cord

Brand Name:

JFOPT

Certification:

CE, ISO9001

Contact Us

Request A Quote
Product Details
Place Of Origin:
Guangdong, China
Model Number:
MPO-LC Patch Cord
Cable Length:
Customized
Wavelength:
850/1300nm
Connector Model:
MPO/LC
Fiber Count:
12 Cores
Fiber Type:
SM G657a1
Application:
Data Center
Durability:
≥500 Times
Payment & Shipping Terms
Minimum Order Quantity
1
Price
NA
Packaging Details
Carton box
Delivery Time
5-8 working days
Payment Terms
T/T, AliPay, PayPal
Supply Ability
1000 pcs/day
RELATED PRODUCTS
Contact Us
86-755-83570641
Contact Now
Product Description

Product Description:

MPO-LC 0.9mm 12 Core Branch Cable Custom Length SM G657A1 Fiber Optic Multi-Fiber Module Box Adapter Jumper is a specially designed fiber optic jumper for efficient and stable data transmission in fiber optic communication systems. The characteristic of the MPO-LC branch cable is that it uses an MPO connector at one end and an LC connector at the other end, and the signal is separated through the brancher. This design allows the patch cord to flexibly adapt to different network connection needs, especially in high-density fiber optic cabling environments such as data centers. The 0.9mm diameter makes the jumper slimmer and easier to route in limited spaces. At the same time, the 12-core design provides more fiber channels, improving data transmission capacity and efficiency.



Features:

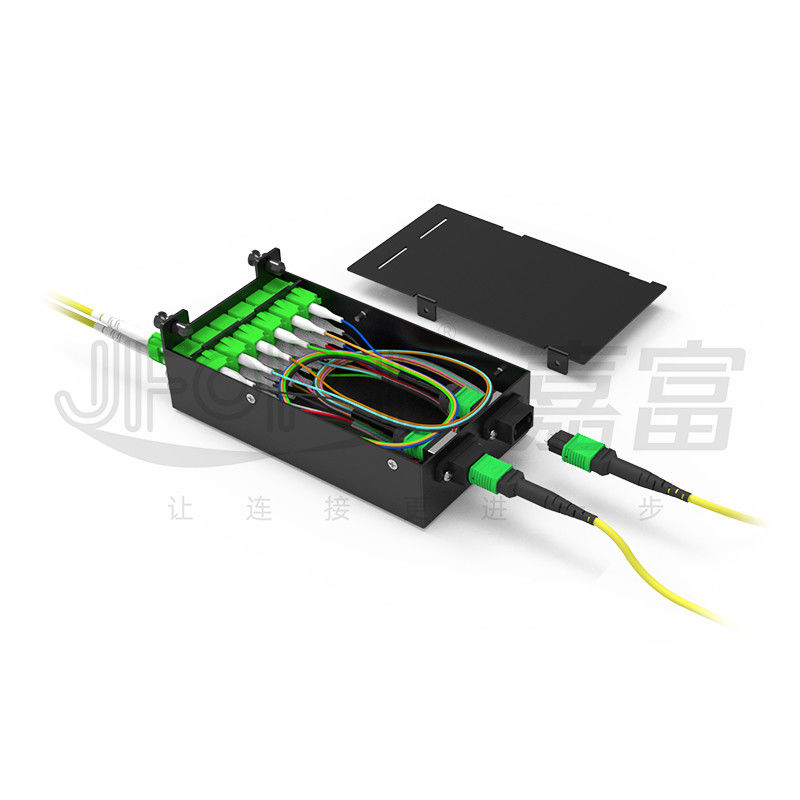

  • Suitable for 12-core and 24-core MPO module box optical cable connections,High density to dramatically save space.

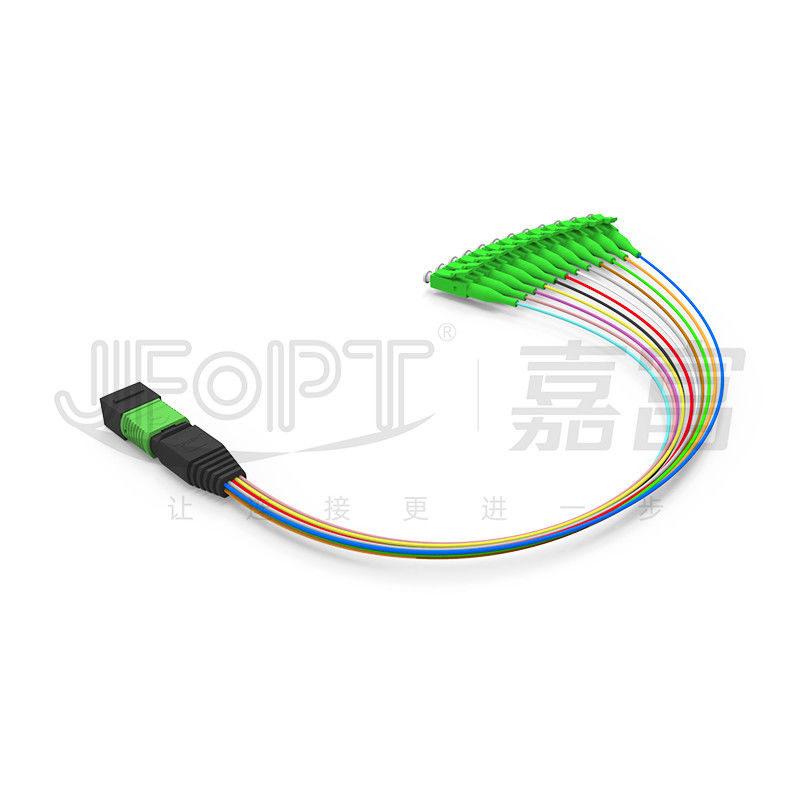

MPO-LC 0.9mm 12Cores Breakout Cable Customized Length SM G657a1 Fiber Multi fiber Module box adapter Patch Cord 0

  • MPO connector type available in Male and Female.

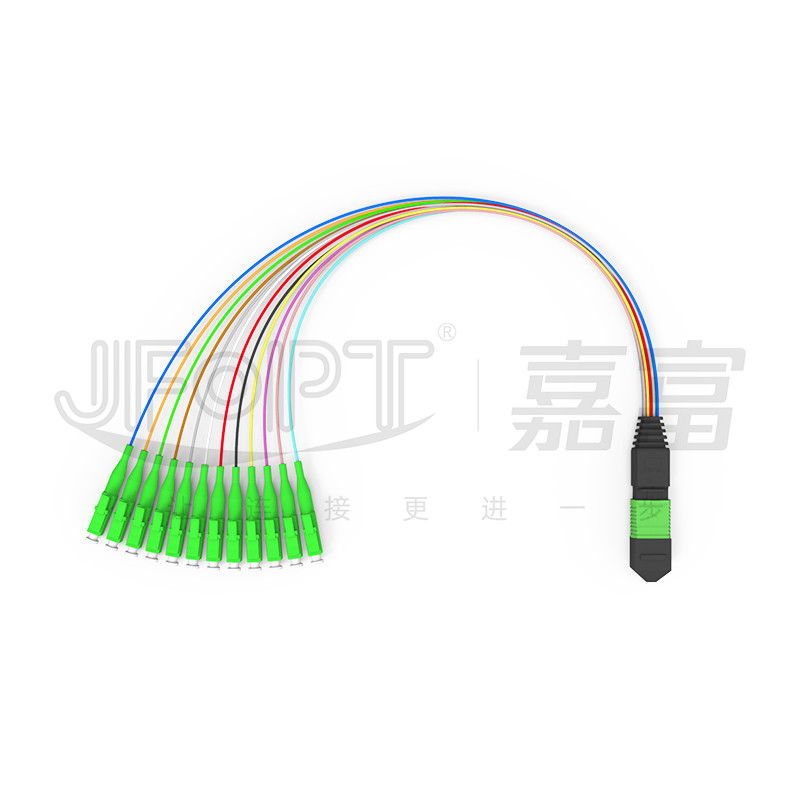

MPO-LC 0.9mm 12Cores Breakout Cable Customized Length SM G657a1 Fiber Multi fiber Module box adapter Patch Cord 1

  • The connector is protected by a dust cap for easy reuse.

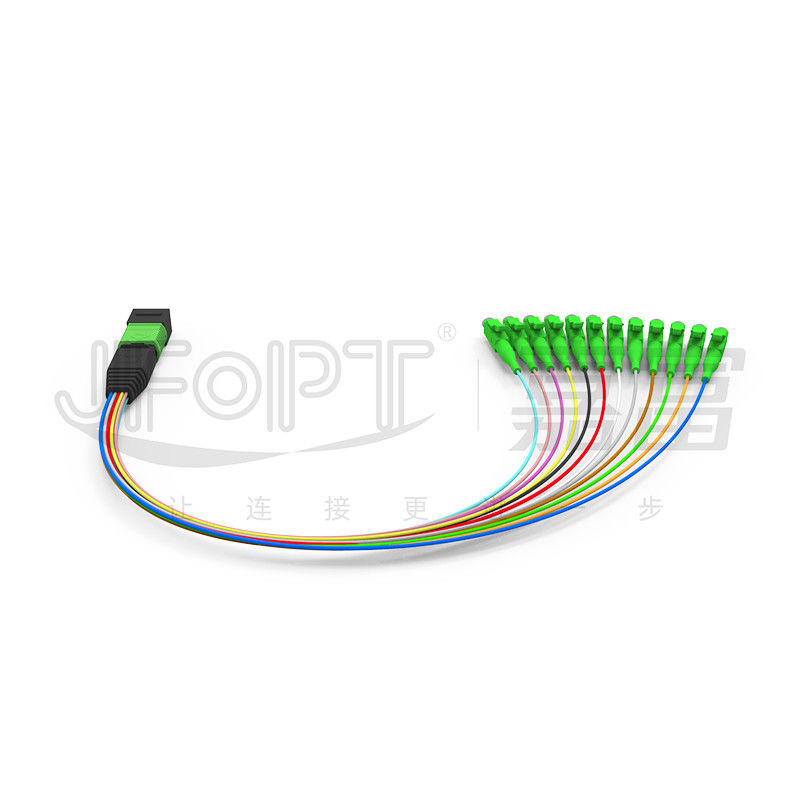

MPO-LC 0.9mm 12Cores Breakout Cable Customized Length SM G657a1 Fiber Multi fiber Module box adapter Patch Cord 2

  • Factory terminated & tested with guaranteed quality.

MPO-LC 0.9mm 12Cores Breakout Cable Customized Length SM G657a1 Fiber Multi fiber Module box adapter Patch Cord 3





Technical Parameters:

Product name MPO-LC Patch Cord 0.9mm
Cable Material PVC/LSZH
Insertion Loss Standard Loss
Cable Length Customized
Connector Color Aqua, Beige, Black, Blue, Green, Grey, Orange, Pink, Purple, Red, White, Yellow
Number Of Fibers 8/12/16/24 Fibers
Storage Temperature -40°C To +85°C
Connector Model MPO/LC
Fiber Mode

Single-mode (SM), Multi-mode (MM)



Applications:

MPO-LC 0.9mm 12-core branch cable is widely used in the field of optical communications. First, it is mainly used for horizontal cabling in data centers, especially those with high-density fiber optic cabling environments. In the data center, this branch cable can efficiently connect the backbone optical cable and network equipment to ensure high-speed and stable data transmission.

Secondly, the customizable nature of MPO-LC 0.9mm 12-core breakout cable allows it to be adapted to a variety of specific network layout and equipment location needs. This makes it particularly suitable for scenarios that require extremely high accuracy and stability of fiber optic connections.

In addition, because it uses SM G657A1 optical fiber, this single-mode optical fiber has the characteristics of low loss and high bandwidth, making the MPO-LC 0.9mm 12-core branch cable also perform well in long-distance, high-speed optical fiber communications.





Customization:

JFOPT's MPO-LC 12-core branch cable customization service is a highly professional service designed to customize suitable cable products according to customers' specific needs and network environment. This customized service usually includes the following aspects:

Length customization: Customers can choose the appropriate cable length based on wiring needs and space constraints. Customized length MPO-LC 12-core branch cable can better adapt to complex wiring environments and improve wiring efficiency and aesthetics.

Connector type customization: One end of the MPO-LC 12-core branch cable uses an MPO connector, and the other end is usually an LC connector. However, according to the specific needs of customers, other types of connectors, such as SC, ST, etc., can also be customized to match different devices and interfaces.

Fiber type customization: The type of fiber is critical to the performance of the cable. Customers can choose different types of optical fibers, such as SM G657A1 or other types of single-mode or multi-mode optical fibers, to meet different transmission distance, rate and loss requirements.

Sheath and color customization: The sheath material and color of the cable can also be customized according to customer needs. For example, jackets of different materials can be chosen to increase the durability or flexibility of the cable, while jackets of different colors can also be chosen for easier identification and management.

Customization of logos and numbers: In order to facilitate installation, maintenance and management, customers can also customize logos and numbers on the cables. These identifications can include cable length, type, connector type and other information, as well as customer-defined numbers or labels.





Support and Services:

The MPO Breakout Cable is designed for high-density fiber networking applications, providing a reliable and efficient way to distribute multiple fibers from a single MPO interface to simplex or duplex connectors. To ensure optimal performance and longevity of your MPO Breakout Cable, our Product Technical Support and Services offer comprehensive assistance and guidance.

Our team of experienced technical support engineers is available to provide you with detailed product information, assist with installation procedures, and help troubleshoot any issues you may encounter while using the MPO Breakout Cable. We are committed to delivering prompt and accurate solutions to enhance your experience with our product.

Thank you for choosing our MPO Breakout Cable for your networking needs. We are here to support you and ensure that your product experience is seamless and successful.





Packing and Shipping:

The MPO Breakout Cable is carefully packaged to ensure the integrity and quality of the product during transit. Each cable is individually encased in a protective sleeve to safeguard against dust, bending, and any potential damage that could occur during handling. The cable is then securely coiled and placed within a sturdy, eco-friendly box that is specifically designed to hold the cable snugly and prevent movement that could lead to abrasion or stress on the fibers.

Along with the cable, the box includes a detailed instruction manual that provides guidance on proper handling, installation, and maintenance of the MPO Breakout Cable. To further protect the product, the box is sealed with tamper-evident tape, offering an additional layer of security and indicating if the package has been opened during transit.

For shipping, the packaged product is placed into an appropriately sized shipping carton, cushioned with shock-absorbing materials to mitigate the impact of shocks and vibrations during transport. The carton is then sealed and clearly labeled with the necessary shipping information, including a barcode and item description, to facilitate a smooth and efficient delivery process. The shipment is tracked from our warehouse to the delivery destination, ensuring the MPO Breakout Cable arrives safely and on time to meet our customers' needs.



FAQ:

Q1: What is the brand and model number of the MPO Breakout Cable available?

A1: The brand is JFOPT, and the model number is MPO Fiber Breakout Patch Cord.

Q2: Where is the MPO Fiber Breakout Patch Cord manufactured?

A2: The place of origin for the MPO Fiber Breakout Patch Cord is CHINA.

Q3: What certifications does the JFOPT MPO Fiber Breakout Patch Cord have?

A3: The JFOPT MPO Fiber Breakout Patch Cord is CE and ISO9001 certified.

Q4: What is the minimum order quantity for the JFOPT MPO Breakout Cable?

A4: The minimum order quantity for the JFOPT MPO Breakout Cable is 1 piece.

Q5: How long does delivery take after placing an order for the MPO Fiber Breakout Patch Cord?

A5: The delivery time for the MPO Fiber Breakout Patch Cord is typically 5-8 working days.

Q6: What are the payment terms for purchasing the JFOPT MPO Breakout Cable?

A6: The payment terms for the JFOPT MPO Breakout Cable are T/T, AliPay, and PayPal.

Q7: What is the supply ability of the JFOPT MPO Breakout Cable?

A7: JFOPT can supply 1000 pcs/day of the MPO Breakout Cable.

Q8: How is the JFOPT MPO Fiber Breakout Patch Cord packaged for delivery?

A8: The JFOPT MPO Fiber Breakout Patch Cord is packaged in a carton box.
