Place of Origin:
CHINA
Brand Name:
JFOPT
Certification:
Product: CE/UL/ROHS/REACH Company: ISO9001/ISO14001
Model Number:
JFOC-GJFJV(H)/GJFSV(H)
Contact Us
2.0mm Simplex Round Cable Data Center Cabling 0.9mm Tight Buffer / Loose Tube Aramid Yarn Strength Member
JFOPT 2.0mm single-core round cable is a transmission medium used for indoor fiber optic network connections. It consists of a layer of buffering material (PVC or LSZH) extruded over the fiber to a specified size like 0.9mm. It is further reinforced with aramid yarn as a strength member and covered with an outer layer of PVC (Polyvinyl Chloride) or LSZH (Low Smoke Zero Halogen) sheath for protection. This cable is commonly used to connect computers, network devices, servers, etc., and is suitable for data transmission scenarios in local area networks (LANs), wide area networks (WANs), storage area networks (SANs), and data centers. It provides a high-performance and reliable transmission medium, offering stable and efficient data transfer solutions for indoor fiber optic networks.
♦ Product Features
|
①High-quality optical fibers used internally, ensuring excellent optical performance and data transmission quality |
② Utilizes high-strength aramid yarn for good tensile strength of the cable |
|
|
|
|
③ Popular indoor cable model with a high market share |
④ Aramid yarn can be added to meet customized requirements for higher tensile strength |
|
|
|
♦ Applications
1.Optical communication systems
2.Interconnection of communication equipment
3.Fiber optic communications

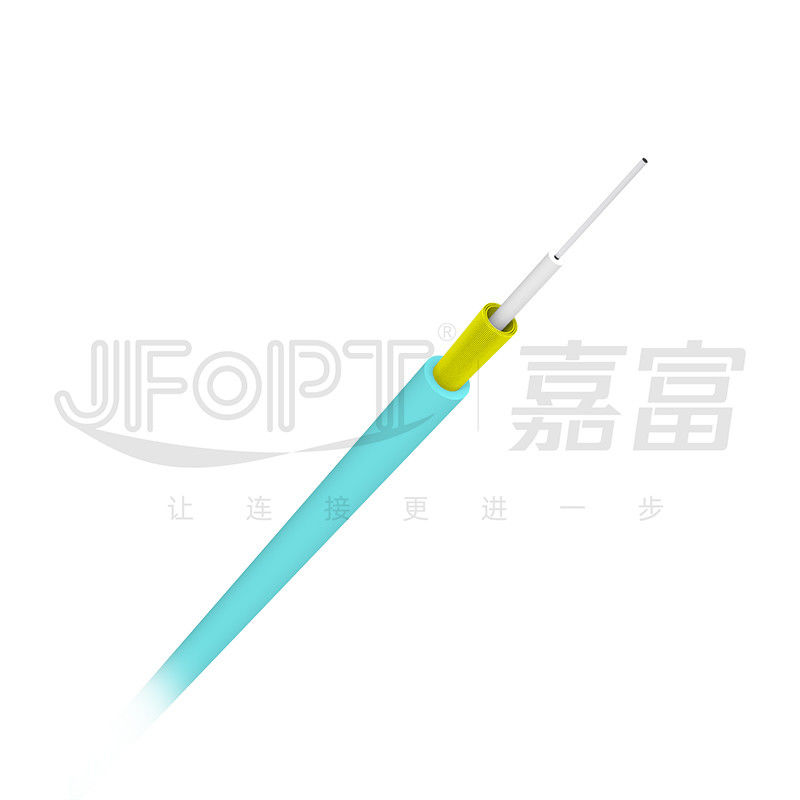

♦ Structure Presentation
♦ Cable Parameters
|
Items |
Specifications |
|||||||
|
Fiber Count |
1 |
|||||||
|
Tight/Loose buffer |
Diameter |
0.85mm±0.05mm |
||||||
|
Material |
PVC/LSZH |
|||||||
|
Color |
White or customized |
|||||||
|
Jacket |
Diameter |
1.9mm±0.1mm |
||||||
|
Material |
PVC/LSZH |
|||||||
|
Color |
Blue/Orange/Green/Brown/Gray/White/Red/Black/Yellow/Purple/Pink/Aqua |
|||||||
♦ Mechanical performance
|
Items |
Specifications |
|||||||
|
Fiber Count |
1 |
|||||||
|
Tension(Long Term)/ N |
60 |
|||||||
|
Tension(Short Term)/ N |
100 |
|||||||
|
Crush(Long Term)/ N/10cm |
100 |
|||||||
|
Crush(Short Term)/ N/10cm |
500 |
|||||||
|
Min. Bend Radius(Dynamic)/mm |
50 |
|||||||
|
Min. Bend Radius(Static)/mm |
30 |
|||||||
|
Operating Temperature/℃ |
-20～+60 |
|||||||
|
Storage Temperature/℃ |
-20～+60 |
|||||||
♦ Fiber Parameters
|
Single mode |
|||||||||
|
Items |
Unit |
G.652D |
G.657A1 |
G.657A2 |
|||||
|
Mode Field Diameter |
1310nm |
μm |
9.1±0.4 |
8.8±0.4 |
8.8±0.4 |
||||
|
1550nm |
μm |
10.4±0.5 |
9.8±0.5 |
9.8±0.5 |
|||||
|
Cladding Diameter |
μm |
125±1 |
125±0.7 |
125±0.7 |
|||||
|
Cladding Non-Circularity |
% |
≤1 |
≤0.7 |
≤0.7 |
|||||
|
Core-Cladding Concentricity Error |
μm |
≤0.6 |
≤0.5 |
≤0.5 |
|||||
|
Coating Diameter |
μm |
245±7 |
245±5 |
245±5 |
|||||
|
Coating Non-Circularity |
% |
≤6.0 |
≤6.0 |
≤6.0 |
|||||
|
Cladding-Coating Concentricity Error |
μm |
≤12.0 |
≤12.0 |
≤12.0 |
|||||
|
Cable Cutoff Wavelength |
nm |
λcc≤1260 |
λcc≤1260 |
λcc≤1260 |
|||||
|
Cable Attenuation Coefficient |
1310nm |
dB/km |
≤0.4 |
≤0.4 |
≤0.4 |
||||
|
1550nm |
dB/km |
≤0.3 |
≤0.3 |
≤0.3 |
|||||
|
Multi-mode |
|||||||||
|
Items |
unit |
62.5/125 |
50/125 |
OM3-150 |
OM3-300 |
OM4 |
|||
|
Core Diameter |
μm |
62.5±2.5 |
50±2.5 |
50±2.5 |
50±2.5 |
50±2.5 |
|||
|
Cladding Diameter |
μm |
125±1.0 |
125±1.0 |
125±1.0 |
125±1.0 |
125±1.0 |
|||
|
Core Non-Circularity |
% |
≤5.0 |
≤5.0 |
≤5.0 |
≤5.0 |
≤5.0 |
|||
|
Cladding Non-Circularity |
% |
≤1.0 |
≤1.0 |
≤1.0 |
≤1.0 |
≤1.0 |
|||
|
Core-Cladding Concentricity Error |
μm |
≤1.5 |
≤1.5 |
≤1.0 |
≤1.0 |
≤1.0 |
|||
|
Coating Diameter |
μm |
245±7 |
245±7 |
245±7 |
245±7 |
245±7 |
|||
|
Coating Non-Circularity |
% |
≤6.0 |
≤6.0 |
≤6.0 |
≤6.0 |
≤6.0 |
|||
|
Cladding-Coating Concentricity Error |
μm |
≤12.0 |
≤12.0 |
≤12.0 |
≤12.0 |
≤12.0 |
|||
|
OFL Bandwidth |
850nm |
MHz·km |
≥160 |
≥500 |
≥700 |
≥1500 |
≥3500 |
||
|
1300nm |
MHz·km |
≥500 |
≥500 |
≥500 |
≥500 |
≥500 |
|||
|
Cable Attenuation Coefficient |
850nm |
dB/km |
≤3.0 |
≤3.0 |
≤3.0 |
≤3.0 |
≤3.0 |
||
|
1300nm |
dB/km |
≤1.0 |
≤1.0 |
≤1.0 |
≤1.0 |
≤1.0 |
|||
♦ Product Packaging
|
|
|
|
Packed on the drum |
Drum sealed |
♦ Factory Strength
|
Expertise: JFOPT has a professional R&D team, production technology, and equipment that effectively reduces potential issues during cable manufacturing, such as cable shrinkage, axial compression, skewed printing, abnormal loss, etc. |
|
||||
|
Manufacturing Capacity: JFOPT has three professional production lines and equipment that can rapidly and efficiently produce a large quantity of cables to meet customer demands. |
|
||||
|
Quality Control: JFOPT implements strict quality control, ensuring that the selected materials meet relevant international, national, or industry standards. Each production process is equipped with mechanized testing equipment, and all cables undergo size and loss testing before leaving the factory to ensure product quality. |
|
||||
|
Standards Development: JFOPT has a professional and experienced R&D team. We have hundreds of sets of cable production molds for different structures and sizes. We can provide cables that meet your specific requirements and environmental conditions. |
|
||||
|
Technological Innovation: JFOPT focuses on technological innovation and continuously introduces various innovative products to meet evolving market demands through market research and our own mold production capabilities. |
|
||||
|
Service and Technical Support: JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and post-sales maintenance, to meet customer needs and ensure customer satisfaction. |
|
||||
♦ Frequent Q&A
1.What factors should be considered when purchasing optical cables?
You should pay attention to the cable model, color, outer diameter, material, fire rating, and mechanical performance of the optical cable.
2. Can we customize the color and printing on the cables?
We can customize the color and printing based on the samples you provide.
3.What types of optical cables can we produce?
We can produce various types of indoor/outdoor optical cables, such as tight-buffered cables, mini cables, ribbon cables, ADSS, GYTA, GYTS, GYXTW, and more.
4.What is the minimum order quantity for our optical cables?
For regular optical cables, the minimum order quantity is 1 kilometer. For special cables, please contact our sales team for further assistance.
5.What is our delivery lead time?
Generally, the delivery of regular optical cables takes around 3 working days.
